Chapter 78 An Approach to Inborn Errors of Metabolism

Iraj Rezvani, Geoffrey Rezvani


Many childhood conditions are caused by single gene mutations that encode specific proteins. These mutations can result in the alteration of primary protein structure or the amount of protein synthesized. The function of a protein, whether it is an enzyme, receptor, transport vehicle, membrane, or structural element, may be relatively or seriously compromised. These hereditary biochemical disorders are also termed inborn errors of metabolism or inherited metabolic disorders.

Most mutations are clinically inconsequential and represent polymorphic differences that set individuals apart (genetic polymorphism). Some mutations produce disease states that range from very mild to lethal. Severe forms of these disorders usually become clinically apparent in the newborn period or shortly thereafter.

Common Characteristics of Genetic Disorders of Metabolism

Although the manifestations of genetic metabolic disorders are quite variable, the following features are shared among most of these conditions:

1 The affected infant is normal at birth and becomes symptomatic later on in life. This differentiates these infants from those who appear sick at birth due to birth trauma, intrauterine insults, chromosomal abnormalities or other genetic diseases.
2 The nature of the mutation that causes the dysfunction of the gene usually varies from family to family. This results in variation in severity of the phenotype in different families. An exception to this is found when a specific mutation has been preserved in an ethnic group primarily due to inbreeding (the founder effect). An example is maple syrup urine disease in Old Order Mennonites in the USA (mainly in Lancaster County, PA), in whom all the affected infants have the same mutation and hence the same phenotype (Chapter 79.6).
3 Mutations causing severe malfunction of the gene or its product result in clinical manifestations shortly after birth. In general, the earlier the appearance of clinical symptoms the more severe is the disease.
4 The majority of conditions are inherited as autosomal recessive traits. Therefore, a history of consanguinity in the parents or of an unexplained death in the neonatal period may raise the question of an inherited metabolic disease in the sick infant.
5 Most of the genetic metabolic conditions can be controlled successfully by some form of therapy, and a few can be potentially cured by the use of bone marrow or liver transplants. These patients can have a normal life if diagnosed and treated early, before irreversible damage to organs, especially to the brain, occurs. This underlines the importance of early diagnosis, which can be achieved through screening of all newborn infants.

Mass Screening of Newborn Infants

Common characteristics of genetic metabolic conditions make a strong argument for screening all newborn infants for the presence of these conditions. During the past half-century, methods have been developed to screen all infants inexpensively with accurate and fast-yielding results. Tandem mass spectrometry (MS/MS) is the latest technical advance in the field. This method requires a few drops of blood to be placed on a filter paper and mailed to a central laboratory for assay. A large number of genetic conditions can be identified by this method when complemented by a few equally efficient assays for other specific disorders (Tables 78-1 and 78-2). Severe forms of some of these diseases may cause clinical manifestations before the results of the newborn screening become available. It should also be noted that these methods may identify mild forms of inherited metabolic conditions, some of which may never cause clinical disease in the lifetime of the individual. Potential psychosocial implications of such findings can be devastating and deserves serious considerations. An example of this is 3-methylcrotonyl CoA carboxylase deficiency, which has been identified in an unexpectedly high frequency in screening programs using tandem mass spectrometry. The majority of these children have remained asymptomatic (Chapter 79.6).

Table 78-1 DISORDERS RECOMMENDED BY THE AMERICAN COLLEGE OF MEDICAL GENETICS (ACMG) TASK FORCE FOR INCLUSION IN NEWBORN SCREENING (“PRIMARY DISORDERS”)*

DISORDERS OF ORGANIC-ACID METABOLISM

Isovaleric acidemia
Glutaric aciduria type I
3-Hydroxy-3-methylglutaric aciduria
Multiple carboxylase deficiency
Methylmalonic acidemia, mutase deficiency form
3-Methylcrotonyl-CoA carboxylase deficiency
Methylmalonic acidemia, cblA and cblB forms
Propionic acidemia
Beta-ketothiolase deficiency

DISORDERS OF FATTY ACID METABOLISM

Medium-chain acyl-CoA dehydrogenase deficiency (MCAD)
Very long-chain acyl-CoA dehydrogenase deficiency (VLCAD)
Long-chain 3-hydroxy acyl-CoA dehydrogenase deficiency (LCHAD)
Trifunctional protein deficiency
Carnitine uptake defect

DISORDERS OF AMINO-ACID METABOLISM

Phenylketonuria
Maple syrup urine disease
Homocystinuria
Citrullinemia
Argininosuccinic acidemia
Tyrosinemia type I

HEMOGLOBINOPATHIES

Sickle cell anemia
Hemoglobin S-β-thalassemia
Hemoglobin SC disease

OTHER DISORDERS

Congenital hypothyroidism
Biotinidase deficiency
Congenital adrenal hyperplasia
Galactosemia
Hearing deficiency
Cystic fibrosis

cblA, cobalamin A defect; cblB, cobalamin B defect; CoA, coenzyme A.

* At this time, there is state-to-state variation in newborn screening; a list of the disorders that are screened for by each state is available at http://genes-r-us.uthscsa.edu/.

Table 78-2 SECONDARY CONDITIONS RECOMMENDED BY ACMG*

ORGANIC ACID METABOLISM DISORDERS

Methylmalonic acidemia, Cbl C and Cbl D forms
2-Methyl 3-hydroxybutyric aciduria
Isobutyryl-CoA dehydrogenase deficiency
2-Methylbutyryl-CoA dehydrogenase deficiency
3-Methylglutaconic aciduria
Malonic acidemia

FATTY ACID OXIDATION DISORDERS

Medium-/short-chain 3-OH acyl-CoA dehydrogenase deficiency
Short-chain acyl-CoA dehydrogenase deficiency (SCAD)
Medium-chain ketoacyl-CoA thiolase deficiency
Glutaric acidemia type 2
Carnitine palmitoyltransferase I deficiency
Carnitine palmitoyltransferase II deficiency
Carnitine acylcarnitine translocase deficiency
Dienoyl-CoA reductase deficiency

AMINO ACID METABOLISM DISORDERS

Hyperphenylalaninemia, benign (not PKU)
Tyrosinemia type II
Tyrosinemia type III
Defects of biopterin cofactor biosynthesis
Defects of biopterin cofactor regeneration
Argininemia
Hypermethioninemia
Citrullinemia type II

HEMOGLOBINOPATHICS

Hemoglobin variants (including hemoglobin E)

OTHERS

Galactose epimerase deficiency
Galactokinase deficiency

* The American College of Medical Genetics task force recommended reporting 25 disorders (“secondary targets”) in addition to the primary disorders that can be detected through screening but that do not meet the criteria for primary disorders.

Clinical Manifestations of Genetic Metabolic Diseases

Physicians and other health care providers who care for children should familiarize themselves with early manifestations of genetic metabolic disorders, because (1) severe forms of some of these conditions may cause symptoms before the results of screening studies become available, and (2) the current screening methods, although quite extensive, identify a small number of all inherited metabolic conditions. In the newborn period, the clinical findings are usually nonspecific and similar to those seen in infants with sepsis. A genetic disorder of metabolism should be considered in the differential diagnosis of a severely ill newborn infant, and special studies should be undertaken if the index of suspicion is high (Fig. 78-1).

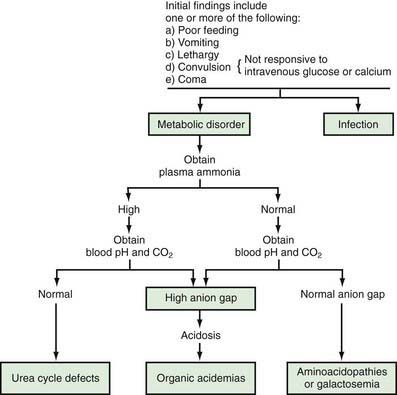

Figure 78-1 Clinical approach to a newborn infant with a suspected genetic metabolic disorder. This schema is a guide to the elucidation of some of the metabolic disorders in newborn infants. Although some exceptions to this schema exist, it is appropriate for most cases.

Signs and symptoms such as lethargy, poor feeding, convulsions, and vomiting may develop as early as a few hours after birth. Occasionally, vomiting may be severe enough to suggest the diagnosis of pyloric stenosis, which is usually not present, although it may occur simultaneously in such infants. Lethargy, poor feeding, convulsions, and coma may also be seen in infants with hypoglycemia (Chapters 86 and 101) or hypocalcemia (Chapters 48 and 565). Measurements of blood concentrations of glucose and calcium and response to intravenous injection of glucose or calcium usually establish these diagnoses. Some of these disorders have a high incidence in specific population groups. Tyrosinemia type 1 is more common among French-Canadians of Quebec than in the general population. Therefore, knowledge of the ethnic background of the patient may be helpful in diagnosis. Physical examination usually reveals nonspecific findings; most signs are related to the central nervous system. Hepatomegaly is a common finding in a variety of inborn errors of metabolism. Occasionally, a peculiar odor may offer an invaluable aid to the diagnosis (Table 78-3). A physician caring for a sick infant should smell the patient and his or her excretions; for example, patients with maple syrup urine disease have the unmistakable odor of maple syrup in their urine and on their bodies.

Table 78-3 INBORN ERRORS OF AMINO ACID METABOLISM ASSOCIATED WITH PECULIAR ODOR

INBORN ERROR OF METABOLISM URINE ODOR
Glutaric acidemia (type II) Sweaty feet, acrid
Hawkinsinuria Swimming pool
3-Hydroxy-3-methylglutaric aciduria Cat urine
Isovaleric acidemia Sweaty feet, acrid
Maple syrup urine disease Maple syrup
Hypermethioninemia Boiled cabbage
Multiple carboxylase deficiency Tomcat urine
Oasthouse urine disease Hops-like
Phenylketonuria Mousey or musty
Trimethylaminuria Rotting fish
Tyrosinemia Boiled cabbage, rancid butter

Occasionally, the onset of a genetic metabolic condition may occur months or even years after birth. These children usually have mutations that render the gene partially nonfunctional. Clinical manifestations such as mental retardation, motor deficits, developmental regression, convulsions, myopathy, recurrent emesis, and cardiomyopathy in a child beyond the neonatal period should raise the possibility of an inherited metabolic disease. There may be an episodic or intermittent pattern, with episodes of acute clinical manifestations separated by periods of seemingly disease-free states. The episodes are usually triggered by stress or a nonspecific catabolic insult such as an infection. The child may die during one of these acute attacks. A genetic disorder of metabolism should be considered in any child with one or more of the following manifestations: unexplained mental retardation, developmental delay or regression, motor deficit, or convulsions; unusual odor, particularly during an acute illness; intermittent episodes of unexplained vomiting, acidosis, mental deterioration, or coma; hepatomegaly; renal stones; muscle weakness or cardiomyopathy.

Diagnosis usually requires a variety of specific laboratory studies. Measurements of serum concentrations of ammonia, bicarbonate, and pH are often very helpful initially in differentiating major causes of genetic metabolic disorders (see Fig. 78-1). Elevation of blood ammonia is usually caused by defects of urea cycle enzymes. Infants with elevated blood ammonia levels from urea cycle defects commonly have normal serum pH and bicarbonate values; without measurement of blood ammonia, they may remain undiagnosed and succumb to their disease. Elevation of serum ammonia is also observed in some infants with certain organic acidemias. These infants are severely acidotic because of accumulation of organic acids in body fluids.

When blood ammonia, pH, and bicarbonate values are normal, other aminoacidopathies (such as hyperglycinemia) or galactosemia should be considered; galactosemic infants may also manifest cataracts, hepatomegaly, ascites, and jaundice.

Treatment

The majority of patients with genetic disorders of metabolism respond to one or all of the following treatments:

1 Special diets play an important role in the treatment of affected children. Dietary changes should be tailored to the pathophysiology of the condition and vary greatly among disorders.
2 Peritoneal dialysis or hemodialysis for expeditious removal of accumulated noxious compounds. This is a very effective modality for treatment of the acute phase of the condition.
3 Administration of the deficient metabolite.
4 Administration of the deficient enzyme.
5 Administration of the cofactor or coenzyme to maximize the residual enzyme activity.
6 Activation of alternate pathways to reduce the noxious compounds accumulated because of the genetic mutation.
7 Bone marrow transplantation.
8 Liver transplantation.

The last two modalities have the potential to cure the metabolic abnormalities. Replacement of the mutant gene with a normal one (gene therapy) is still in the experimental phase.

Treatment of genetic disorders of metabolism is complex and requires medical and technical expertise. The therapeutic regimen often needs to be tailored to the individual patient because of large phenotypic variations in the severity of the disease, even within a single family. Providing education and support for the family is the key to successful long range therapy. Effective treatment is best achieved by a team of specialists (physician specialist, nutritionist, geneticist, neurologist, and psychologist) in a major medical center.

Bibliography

Brosco JP, Sanders LM, Dharia R, et al. The lure of treatment: expanded newborn screening and the curious case of histidinemia. Pediatrics. 2010;125:417-419.

Baily MA, Murray TH, editors. Ethics and newborn genetic screening: new technologies, new challenges. Baltimore: Johns Hopkins University Press, 2009.

Champion MP. An approach to the diagnosis of inherited metabolic disease. Arch Dis Child Educ Pract Ed. 2010;95:40-46.

Dietz H. New therapeutic approaches to Mandelian disorders. N Engl J Med. 2010;363:852-853.

Goel H, Lusher A. Pediatric mortality due to inborn errors of metabolism in Victoria, Australia: a population-based study. JAMA. 2010;304:1070-1072.

McCabe LL, McCabe ER. Newborn screening as a system from birth through lifelong care. Genet Med. 2009;11:409-410.

Plass AMC, van El CG, Pieters T, et al. Neonatal screening for treatable and untreatable disorders: prospective parents’ opinions. Pediatrics. 2010;125:e99-e106.

Pollitt RJ. Newborn blood spot screening: new opportunities, old problems. J Inherit Metab Dis. 2009;32:395-399.

Santra S, Hendriksz D. How to use acylcarnitine profiles to help diagnose inborn errors of metabolism. Arch Dis Child Educ Pract Ed. 2010;95:151-154.

Stevenson T, Millan MT, Wayman K, et al. Long-term outcome following pediatric liver transplant action for metabolic disorders. Pediatr Transplant. 2010;14:268-275.

Zand DJ, Brown KM, Lichter-Konecki U, et al. Effectiveness of a clinical pathway for the emergency treatment of patients with inborn errors of metabolism. Pediatrics. 2008;122:1191-1195.
