Institute of Medicine Reports: The Case for Improving Healthcare Safety and Quality

In 1999, the Institute of Medicine (IOM) report To Err is Human: Building a Safer Health System estimated that 100,000 people die every year in the United States as the result of preventable errors made by healthcare professionals.⁵¹ The statistics presented in this study ranked medical errors as the eighth leading cause of death and demonstrated that more people die because of medical errors than from motor vehicle crashes, breast cancer, or AIDS.^7,18,51 The report attributed 7000 of the deaths to medication errors and estimated the annual cost of errors at $17 billion to $29 billion.⁵¹

The To Err is Human report exposed the inadequacies of healthcare systems, focused attention on patient safety, and fostered programs dedicated to measuring and improving performance. Table 22-1 outlines the recommendations for healthcare improvement that were presented in the To Err is Human report and endorsed by the IOM’s Quality of Health Care in America Committee. In a follow-up to the To Err is Human report, in 2001 the IOM published Crossing the Quality Chasm: A New Health System for the 21st Century, to more fully address quality problems related to patient-family satisfaction, treatment disparities, and resource accessibility.^21,64,65 Crossing the Quality Chasm defines the ideal twenty-first century healthcare system as one that is safe, effective, patient-centered, timely, efficient, and equitable. Table 22-2 defines the six aims set forth by the IOM and highlights the recommendations of the Crossing the Quality Chasm report for achieving the ideal healthcare system.

Table 22-1 The Institute of Medicine Quality of Health Care in America Committee’s Recommendations for Health Care Improvement

From Kohn KT, Corrigan JM, Donaldson MS: To err is human: building a safer healthcare system, Washington, DC, 1999, National Academy Press; National Academy of Sciences: To err is human: building a safer healthcare system executive summary. Available at http://www.nap.edu. Accessed October 8, 2011.

Table 22-2 Institute of Medicine Six Aims for Improvement of Health Care Systems

From Committee on Quality Health Care in America and Institute of Medicine: Crossing the quality chasm: a new health system for the 21st century. Washington, DC, 2001, National Academy Press; National Academy of Sciences: Crossing the quality chasm: a new health system for the 21st century executive summary, 2003. Available at http://www.nap.edu. Accessed October 8, 2011.

Through the implementation of the IOM recommendations and the work of organizations that have evolved to improve the safety and quality of healthcare (see the table in the Chapter 22 Supplement on the Evolve Website for a list of organizations and their focuses and websites), individual institutions have demonstrated incremental improvement in care. As late as 2005, however, national statistics had not improved substantially.^2,56 Furthermore, the data compiled in 1999 may have underestimated deficiencies in patient safety.⁵⁶ For example, the Centers for Disease Control and Prevention (CDC) data subsequent to the To Err is Human report suggest that healthcare-acquired blood stream infections may account for as many as 90,000 deaths every year.^19,56 In light of these projections, it is clear that an essential component of contemporary healthcare delivery is improving the safety and quality of healthcare for patients of all ages.

To be successful, improvement efforts must be evidence based. To build an evidence-based foundation, the healthcare improvement movement uses clinical outcome research to identify practices that promote positive patient outcomes. To effectively implement best practices, the discipline adopts improvement theories and methods from businesses such as the automotive, nuclear energy, and aviation industries. Refer to the Chapter 22 Supplement on the Evolve Website for a history of quality improvement.

Human Error

Refer to the Chapter 22 Supplement on the Evolve Website for a history of the industry-based theories of human error. Error theorists recommend a systems approach to improving workplace performance. Extrapolated from successful programs in the nuclear power and aviation industries, a systems approach to preventing human error starts with the notion that people are intrinsically fallible. In addition, it encourages error-proofing the systems in which people work. In a systems approach to error-proofing, layers of defensive interventions that respond to failure-prone human behaviors are used to prevent or trap errors before they cause harm. Often referred to as the Swiss Cheese Model (Fig. 22-1), Reason’s system theory⁷⁹ illustrates that despite layers of defense, it is possible for holes in the safeguards to align in such a way that an error passes through the system. The model proposes that to be maximally effective, multiple defensive layers are necessary to reduce the likelihood that the holes will align and allow the system to fail. In environments such as critical care units, layers of defense are often technologic, such as redundant monitor alarms that sound at the bedside and at a central monitoring station and may also alert staff via a visual cue, such as a flashing light.⁷⁹

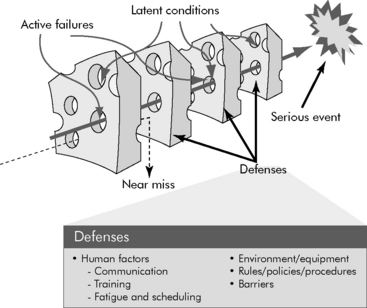

Fig. 22-1 The Swiss Cheese Model of Errors: holes in layers of defense allow errors to pass through a system.

(Adapted from Reason JT: Human error, New York, 1991, Cambridge University Press.)

Reason notes that errors in systems are caused by either “active failures” or “latent conditions.”⁷⁹ In healthcare, an active failure is an unsafe act performed by a professional who is in direct contact with a patient. A latent condition is a flaw in the design of the care delivery system and its layers of defense. In keeping with the Swiss Cheese Model, patient safety is promoted by barriers to both the active failures of professionals and the latent conditions of a system. Successful error prevention only adds defensive layers and minimizes the number of potential failures that exist in the system. A common approach to prospectively analyzing a system for potential failures is failure mode effect analysis (FMEA). Root cause analysis (RCA) is a technique for assigning a cause to errors that have actually occurred. The methodologies for FMEA and RCA are described later in this chapter. Such preoccupation with errors, their cause, and their prevention is a key characteristic of safe and high reliability industries.⁷⁹

High Reliability Organizations

Reliability is the rate at which a system produces a desired effect without failure.⁸⁰ High reliability organizations perform well in hazardous situations that depend on technology and human interactions.¹¹⁴ (Refer to the Chapter 22 Supplement on the Evolve Website for information about the study of nuclear power and aviation accidents.) By understanding the interplay between the technical and human causes of accidents, the nuclear power and aviation industries have significantly improved the safety of their practices and are now considered high reliability organizations. Regardless of the industry, all high reliability organizations share the following characteristics:

Box 22-1 lists the characteristics of high reliability organizations. In addition to a high rate of positive patient outcomes and a low rate of error and complications, evidence of reliability in a healthcare organization includes continual learning from the analysis of potential system flaws and actual adverse events, the ability of staff at any level to raise concerns and make decisions that are within the scope of their expertise, standardization of processes, and leadership support for safety practices.^16,60,77

Culture of Safety

The ability of a healthcare system to be highly reliable hinges on its underlying organizational culture and leadership support for a culture of safety. To fully support a culture of safety, leadership must prioritize and build consensus on the importance of safety and quality improvement goals and must remove barriers and conflicts of interest to achieving these goals. Leadership can also promote a culture of safety by using nonpunitive approaches to investigating errors and by promoting transparency for the purpose of learning from adverse events.^37,92 Evidence that a culture of safety exists in an organization includes sufficient staff and resources, a flat organizational hierarchy, open dialogue about problems without fear of repercussion, clear lines of communication and effective intradisciplinary and interdisciplinary teamwork.^63,72 The Agency for Healthcare Research and Quality provides a survey that can be used to assess the culture of safety in a hospital³ (Box 22-2).

Crew Resource Management

Effective teamwork and communication are key features of the safety culture in high reliability organizations. Initially developed by the National Aeronautics and Space Administration Aerospace Human Factors Research Division to train flight crews, crew resource management (CRM), is essential for the effective functioning of multidisciplinary healthcare teams (Box 22-3). CRM includes team training via simulations and interactive group briefings that focus on the development of behaviors critical to decision making and performance in high-risk and high-stress environments that depend on technology, process, and interpersonal communication.⁷² The ultimate goal of CRM is a “shared mental model” that aligns all team members to the goals and the strategies for any team activity.⁹⁶ Behaviors taught to team members via CRM include:

In addition to teaching these core behaviors, CRM provides team members with the opportunity to develop technical proficiency and to practice avoiding and trapping errors and mitigating their consequences, and it helps participants appreciate the effects of stress, fatigue, and work overload on performance. Serial performance appraisal of team members is also an important component of CRM programs.^72,96

Healthcare team training programs have gained acceptance over the past 10   years, and performance of labor and delivery, surgical, and anesthesia teams have demonstrated the positive effects of CRM.^30,59,69 The Joint Commission concluded that communication failures contribute to more than half of all errors.⁴⁰ In response, the Joint Commission and other patient safety interest groups have mandated the use of the structured inquiries and briefings that are central to CRM. Examples of such mandated CRM methods include the performance of “universal protocol” or “time-out” to confirm the correct patient, procedure, and site before invasive interventions, and the use of standardized templates or scripts for hand-off communication between caregivers.^{12,40,41,70,84,95}

An appreciation for the importance of CRM has also expanded the use of simulation in healthcare. In critical care settings, the tradition of simulating resuscitations has taken new direction and is now used to teach delegation and communication skills and to reinforce clinical decision-making algorithms and procedural techniques.^29,69 Simulation, which was once a tool reserved for advanced life support and crisis resource management training (such as learning to manage a difficult airway), can be used to develop virtually any aspect of critical care team performance, including noncrisis activities such as daily rounds.^40,69

Model for Improvement

Theories of quality improvement and human error provide a foundation for programs in patient safety and quality improvement, but healthcare teams also need practical methods for orchestrating improvement initiatives. Developed by Associates in Process Improvement, the Model for Improvement (Fig. 22-2) is widely considered an appropriate quality improvement method for healthcare.¹⁰⁴ The Model for Improvement is a two-step process consisting of (1) answering questions to define the improvement opportunity and (2) conducting plan-do-study-act (PDSA) cycles to test interventions that are hoped to improve performance.^24,44,54,104

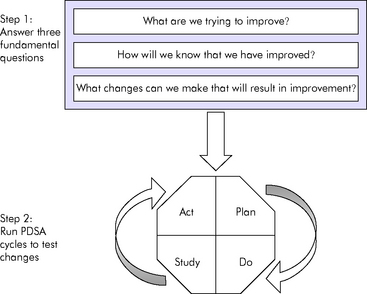

Fig. 22-2 The model for improvement.

(Adapted from Institute for Healthcare Improvement: How to improve. Available at http://www.ihi.org/IHI/Topics/Improvement/ImprovementMethods/HowToImprove. Accessed April 25, 2008; Langley GJ, et al: The improvement guide: a practical approach to enhancing organizational performance, San Francisco, 1996, Jossey-Bass.)

To successfully improve a process, it is necessary to define the problems associated with the current state, describe the ideal future state, and assign interventions (called improvement actions or changes) to produce the ideal future state. To identify these elements of an improvement effort, the first step of the Model for Improvement requires answering the following questions:

Answering these three fundamental questions leads to the development of an aim for the initiative. The aim of an improvement initiative must be time specific and measurable, and it must articulate the specific population and scope that will be affected by the effort. An example of a quality improvement aim is: central line-related blood stream infections in patients receiving care in the pediatric critical care unit will be reduced to one infection per 1000 line days (or fewer) within 6   months.

Although the need for improvement may come from external sources such as hospital administration or a regulatory agency, a team of healthcare providers who work within the targeted process or system should be assembled to create the aim, identify improvement actions, and then perform the improvement effort. To comprehensively represent all stakeholders, a typical quality improvement team is composed of the following:

When the initiative includes direct patient care or operations that support patient care, the team consists of members of the clinical microsystem. The clinical microsystem is the group of people who work together on a regular basis to provide care to a discrete population of patients. Members of the clinical microsystem are best able to provide subject matter expertise and encourage the adoption of change throughout an organization.⁶⁸

Once the team determines an aim, improvement actions intended to achieve the aim can be tested using PDSA cycles, also called tests of change. These tests can be conducted repeatedly to refine an improvement action. A single PDSA cycle consists of:

When an improvement effort requires multiple improvement interventions, each intervention can be tested via a separate PDSA cycle. All the related PDSA cycles are then linked to create a package of interventions that have been proven to foster improvement (Fig. 22-3). Effective improvement actions can then be spread beyond the initial test setting and population. The use of PDSA cycles to test and refine improvement actions can help to overcome an organization’s natural resistance to change.^24,44,54,105

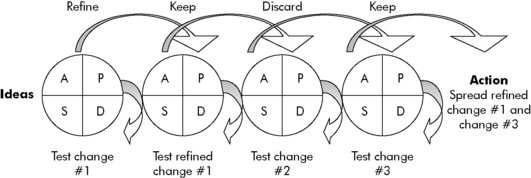

Fig. 22-3 Linking plan-do-study-act (PDSA) cycles: moving ideas to action.

(Adapted from Institute for Healthcare Improvement: How to improve. Available at http://www.ihi.org/IHI/Topics/Improvement/ImprovementMethods/HowToImprove. Accessed April 25, 2008; Langley GJ, et al: The improvement guide: a practical approach to enhancing organizational performance, San Francisco, 1996, Jossey-Bass.)

Performance Measurement

Measures must be developed to identify opportunities for improvement, to test changes, and to continually monitor an organization’s performance. A measure is a quantitative indicator of performance. There are three types of improvement measures:

The goal of reducing the incidence of central line-associated blood stream infections can be used to illustrate the three types of performance measures. The following are sample measures for a central line-associated blood stream infection improvement project:

To analyze performance patterns represented by data, it is helpful to graphically display and apply statistics to the data. Run charts and control charts, which plot data over time, are two essential improvement tools. Refer to Evolve Figs. 22-1 and 22-2 in the Chapter 22 Supplement on the Evolve Website for examples of such charts.

Failure Mode and Effects Analysis

Before the Model for Improvement can be used to manage performance, opportunities for improvement must be identified. As mentioned earlier, high reliability organizations are preoccupied with failure and proactively analyze processes and systems for potential failures, even before failures occur. An FMEA is a tool for prospective analysis of healthcare system vulnerabilities, called failure modes. Steps to a healthcare FMEA:

Table 22-3 provides a sample documentation grid and RPN calculation tool for conducting an FMEA. An FMEA can be used to identify new improvement projects or as a tool to further understand special cause variation demonstrated in the data generated by an existing improvement project. An improvement team that includes all key stakeholders, including members of the clinical microsystem, should be used to conduct FMEAs.⁴³

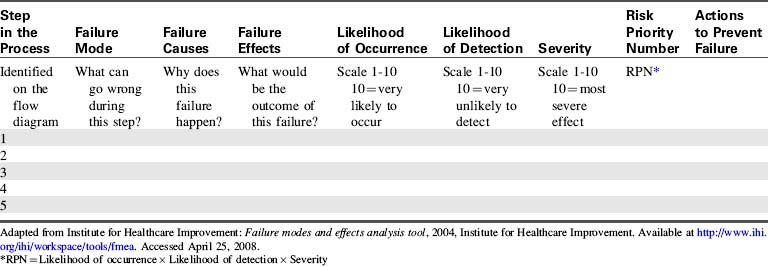

Table 22-3 Sample Failure Modes and Effects Analysis Tool

The Institute for Safe Medication Practices has strongly encouraged the use of FMEA, and it has been shown to improve medication safety.^81,91,115 In response to the overwhelming evidence that the technique contributes to patient safety, the Joint Commission mandates that healthcare organizations perform at least one FMEA per year.³³

Incident Reporting

Healthcare organizations should use tools, such as FMEA, to anticipate and prevent failures before they occur. However when a failure takes place, incident reporting becomes central to the safety and quality improvement effort. Colonel John C. Flanagan, the Director of the Division of Aviation Psychology, developed the critical incident technique for military training in 1954. The critical incident technique was a structured incident reporting process that included the use of personnel directly involved in a failed process to create, at the time of discovery, a qualitative narrative of the event. Flanagan’s work also established common terminology for incident reporting that has been adapted for use in healthcare (Table 22-4).^28,51,109 Healthcare incident reporting is the process by which a clinician documents adverse events, medical errors, and near-miss events, including deviations from standard procedures that could have resulted in an adverse event or error, in real time and at the point of care. Incident reports may also require clinicians to assign a perceived cause and severity grade to the event.^31,42,55,109

Table 22-4 Healthcare Incident Definitions

Adapted from Garbutt J, et al: Reporting and disclosing medical errors: pediatricians’ attitudes and behaviors. Arch Pediatr Adolesc Med 161:179-185, 2007; Joint Commission: Sentinel events. Available at http://www.jointcommission.org/SentinelEvents. Accessed April 25, 2008; Kohn KT, Corrigan JM, Donaldson MS: To err is human: building a safer healthcare system. Washington, DC, 1999, National Academy Press.

Since 1975, the U.S. Food and Drug Administration has mandated the reporting of blood transfusion reactions, and in 1995 the Joint Commission mandated reporting of all other adverse events, errors, and near misses as part of the Sentinel Event Policy. The hallmark IOM report To Err is Human called for the enhancement of voluntary and mandatory incident reporting systems in individual organizations and for public disclosure. Furthermore, and as noted previously, documenting incidents is an important characteristic of High Reliability Organizations.^55,109 Despite a keen focus on incident reporting, however, there are many barriers to the use of incident reports by healthcare providers.^31,97 In a 2004 survey by Taylor et al,⁹⁷ 34% of pediatricians and pediatric nurses surveyed indicated that they reported fewer than 20% of their own medical errors, and approximately 33% of those surveyed indicated that they reported fewer than 40% of the errors committed by their colleagues. Other studies have indicated incident reporting rates as low as 10%.⁵¹ Barriers to incident reporting can be inadequacies of reporting systems, organizational culture, or the attitudes or knowledge deficits of healthcare professionals (see Barriers to Incident Reporting in the Chapter 22 Supplement on the Evolve Website for examples).

Despite the barriers to incident reporting, pediatric healthcare providers indicate a willingness to report if and when appropriate and an interest in understanding incidents to improve care.³¹ Facilitating the use of incident reports is a key improvement effort of all hospitals. Effective strategies to improve incident reporting rates include:

All hospitals should implement a system that provides timely information to front-line clinical leadership about the occurrence of and trends in incidents. Electronic incident reporting systems help to accomplish this goal.^98,100 Continual feedback to clinicians about the improvement actions taken in response to incident reports is also essential to increasing reporting rates and to building a culture of transparency and learning. Often a reported event will undergo an extensive, systematic evaluation, such as an RCA, that will generate a new improvement initiative for the clinical microsystem.

Root Cause Analysis

Performing an RCA of actual adverse patient events, like FMEA and incident reporting, is a characteristic of a high reliability organization and is mandated by the Joint Commission, as well as by many state regulated incident reporting programs. Reporting programs, which are often public, typically require an RCA of a “sentinel event” or an “unexpected occurrence involving death or serious physical or psychological injury, or the risk thereof.”⁴⁶ The goal of an RCA is to identify the factors that contributed to an adverse patient event in order to safeguard the system from the same event occurring again. Although an RCA may identify multiple system vulnerabilities, the emphasis of the exercise is to assign and understand the causes of the failure that resulted in death or serious morbidity or the potential for such.²⁶ Steps for conducting an RCA include:

Box 22-4 Root Cause Analysis: Assigning Cause to Adverse Patient Events to Improve Systems

Categories of Causes for Adverse Patient Events

• Human Factors

Communication

Training

Fatigue

Scheduling

• Environment and Equipment

• Policies and Procedures

• Failure or Absence of Barriers

Rules for Assigning Cause

• Clearly show the cause-and-effect relationship

• Do not assign a quality or use a negative descriptor when identifying a cause (e.g., do not use inadequate communication or poorly written policy)

• Identify a preceding cause for each human error

• Identify a preceding cause for each procedural deviation

• Assign failure to act only when there was a preexisting duty to act

Adapted from the Veterans Administration National Center for Patient Safety: Root cause analysis. Available at http://www.va.gov/NCPS/CogAids/Triage/index.html?8. Accessed April 25, 2008.

To be effective, the approach to conducting an RCA should be consistent from one event to the next. RCA should be conducted by representatives of all stakeholders in the system in which an event occurred, including members of the clinical microsystem. To provide an objective analysis of the event, one or more members of the organization who sit outside the system under examination may also be included. In addition, a neutral facilitator should assist with the organization of the RCA and moderate related discussions and debates.^9,15,107

Environment of Care

Pediatric critical care is highly vulnerable to errors and adverse patient events.^61,85 The needs of critically ill children are complex and heterogeneous, the systems for providing care to critically ill children are tightly coupled, and the work of critical care providers is psychologically stressful and physically exhausting. Accidents related to technology, including dislodgement of invasive catheters and airways and ineffective use of monitoring alarms by staff, are prevalent in critical care, and gaps in care continuity and cognitive biases are particularly problematic when fast-paced decision making is needed.^61,102,103 Elements of the critical care physical environment, such as open layouts and excessive noise, produce interruptions and distractions during care delivery. These elements are also known to impede patient safety in pediatric critical care units.⁶¹ In a study that applied an aviation “sterile cockpit” approach to critical operations, medication errors were reduced when interruptions experienced by the nurse during medication administration were minimized.^61,74 Furthermore, the general effects of fatigue on clinician performance are applicable, if not amplified, in pediatric critical care, where on-call physicians have little time to sleep and nurses frequently work extended shifts. The documented effects of sleep deprivation include a 36% increase in medication and diagnostic errors and a 30% increase in surgical procedure times.^53,61 Similarly, research has shown that nurses are twofold to threefold more likely to make an error after working more than 12.5 consecutive hours.^61,82,87 A 2006 study conducted by the American Association of Critical-Care Nurses reported that 44% of critical care nurses are routinely scheduled to work shifts longer than 12.5   hours and that during a 1-month period, only 13% of nurses left work at the end of their assigned shift and 61% worked 10 or more overtime shifts.^61,87 The ideal hospital environment culture of safety includes leadership support, teamwork, learning from mistakes, work hour restrictions, work load distribution, appropriate physical space, and decision support aids that are readily available at the point of care.^37,73

Improving the hospital work environment is clearly pertinent to nursing. Leape et al⁵⁶ reported that as many as 86% of harmful errors are intercepted by nurses before they reach patients. Several studies have shown that when patient-to-nurse ratios increase and when nurses spend less time with patients, there is an increase in complications such as infection, gastrointestinal bleeding, and cardiac arrest, as well as extended length of hospital stay.^52,67,78 Aiken et al^4,5 have published hallmark research that correlates low nursing education level and high patient-to-nurse ratio with increased patient mortality rates and increased failure to rescue patients who are experiencing physiologic instability resulting from an unexpected complication. Aiken et al estimated that for every patient receiving care beyond an assignment of four patients there is a 7% increase in the risk of a patient dying within 30   days after discharge.⁵ These statistics are particularly daunting in light of the estimated 29% to 40% nursing shortages predicted by the year 2020.³⁷

In response to evidence that nursing care plays a pivotal role in patients’ outcomes, the IOM Committee for the Work Environment of Nurses and Patient Safety published a manual titled Keeping Patients Safe: Transforming the Work Environments of Nurses. The manual, intended to be a companion to the IOM report To Err is Human, provides a blueprint for the ideal work environment for nurses.⁷³ The blueprint builds on research that demonstrates the effects of nursing education, management, staffing, work hours and processes, and the ergonomics of the work space. In addition, the blueprint links the development of a safe work environment with the evolution of a learning organization—that is, an organization that is willing to adapt over time to best meet the needs of its clients.^37,38,73 The requirements set forth by the IOM for a safe and effective work environment for nurses include an organizational commitment to patient safety, effective and evidence-based management and leadership, interdisciplinary collaboration, adequate staffing and work hour restrictions, workplace design that facilitates safe care, decision support aids at the point of care, and opportunities for ongoing learning.

Failure to Rescue

The ultimate outcome of a healthy work environment is the prevention of failure-to-rescue events. Failure to rescue is any event during which a clinician is unable, because of a complication of care or a condition that was not present on admission, to save a hospitalized patient’s life.⁴ To recognize and intervene early when a life-threatening complication occurs, nurses use surveillance such as clinical assessment for signs and symptoms of physiologic instability, and environmental safety checks, such as verifying the settings of monitor alarms.⁴ A workforce and work environment that support surveillance, recognition, and early intervention by nurses are the backbone for rapid response teams (RRTs). RRTs are hospital-based teams of critical care providers who are available to assess, provide consultation, and assist with the care of a patient whose status is deteriorating prior to the need for resuscitation for cardiopulmonary arrest.¹¹⁶ RRTs have been successfully implemented in pediatric hospitals and have been shown to reduce the rate of cardiopulmonary arrests that occur outside of critical care units and reduce patient mortality. The use of RRTs is strongly encouraged by the Joint Commission and other patient safety interest groups.^48,88,90,116

Role for Information Technology

There is great promise that evolving information technology will enable safe environments of care. Electronic health record (EHR) and computerized provider order entry (CPOE) systems offer benefits to clinicians, including expanded access to patients’ health information, particularly during and after transitions of care, and decision support such as drug-allergy interaction checking and dose calculation.^99,112 By offering identification and tracking applications, electronic information systems can also enhance patient identification and patient flow.⁷⁶ Furthermore, electronic capture of clinical information facilitates data mining for clinical research and measurement of performance. The IOM, the Joint Commission, the Center for Medicare and Medicaid Services, the Institute for Safe Medication Practices (ISMP), public interest groups, and many private insurers include electronic information systems in their healthcare improvement requirements and pay-for-performance plans.^6,34

It is important to note that there are risks associated with EHR and CPOE systems. Because EHR and CPOE systems require changes in routine clinical operations and processes, it will be important to verify that clinical workflow is safe and effective after implementation. Other risks include lack of information security, alert fatigue, downtime, inefficiency, and the evolution of new types of medical errors, such as keystroke mistakes.^11,110,112

In addition to the generic risks of clinical information systems, there is national concern that commercially available EHR and CPOE systems do not accommodate the unique needs of pediatric healthcare.^{6,89,93,110,112} The Joint Commission mandated that information system vendors develop functionality to help prevent pediatric medication errors,^46,47 and the American Academy of Pediatrics has developed position statements on pediatric requirements for clinical information technology.^6,93 Table 22-5 outlines the pediatric-specific requirements for maximal safety and effectiveness of EHR and CPOE systems.

Table 22-5 Requirements for Safe and Effective Pediatric Electronic Information Systems

Adapted from American Academy of Pediatrics Council on Clinical Information Technology, Gerstle RS: Electronic prescribing systems in pediatrics: the rationale and functionality requirements. Pediatrics 119:1229-1231, 2007; Joint Commission: Preventing pediatric medication errors. Sentinel Event Alert, 39, April 2008. Available at http://www.jointcommission.org/SentinelEvents/SentinelEventAlert/sea_39.htm. Accessed April 25, 2008; Spooner SA: Council on Clinical Information Technology, American Academy of Pediatrics. Special requirements of electronic health record systems in pediatrics. Pediatrics 119:631-637, 2007.

Additional technologies, such as bar code identification systems and programmable infusion pumps, also have the potential to improve patient safety in pediatric critical care units. Despite somewhat conflicting evidence in the literature, it appears that bar code technology reduces medication administration and lab labeling errors^20,35,62 and that programmable or “smart” infusion pumps reduce duplicate infusion and infusion rate errors.⁷¹ Additional research is needed to determine the most appropriate uses and the true effects of such technologies.^20,58

Common Pediatric Critical Care Unit Improvement Opportunities

There are unique impediments to improving patient safety in pediatric critical care. Many of the safety and quality improvement efforts launched by regulatory and public interest groups primarily focus on adult populations and may not match the safety risks specific to critically ill children.⁸⁵ In light of the high risk for iatrogenic complications and the special needs of sick children, pediatric nurses and physicians must identify the key safety and quality indicators for pediatric critical care.⁸⁵ A number of professional organizations, such as the National Initiative for Children’s Health Care Quality (NICHQ), the Child Health Corporation of America (CHCA), and related work groups have been formed to define and prioritize pediatric specific safety and quality initiatives and measures. Box 22-5 lists targeted pediatric safety and quality issues; it can be used by pediatric critical care providers to develop their own unit-specific improvement goals. Medication safety and healthcare-acquired infections are the two most consistent themes of all proposed pediatric safety and quality improvement programs.

Box 22-5 Common Opportunities for Clinical Improvement in Pediatric Critical Care

• Compliance with hand hygiene

• Medication safety

• High-risk medication management

Implementation and enhancement of computerized provider order entry

Medication reconciliation

• Prevention of healthcare-acquired infections

Central line-associated blood stream infections

Ventilator associated pneumonia

Surgical site infection

Surviving severe sepsis

• Prevention of falls

• Prevention of skin breakdown

• Venous thromboembolism prophylaxis

• Unplanned readmission rates

• Patient flow efficiency (admission through discharge)

• Pain assessment

• Implementation of rapid response teams

• Implementation and enhancement of electronic health records

• Asthma care planning across the continuum of care

Healthcare-Acquired Infections

Prevention of healthcare-acquired infections is a common focus of safety improvement efforts. The National Nosocomial Infections Surveillance System (NNIS) is a voluntary reporting system that integrates with the CDC to capture data about healthcare-acquired infections in the U.S. Research using NNIS data has shown that bloodstream infections are the most common type of healthcare-acquired infection in children and that 91% of bloodstream infections are associated with central venous catheters.^66,94 Indwelling airways and urinary catheters also contribute to healthcare-acquired infections. Most (95%) healthcare-acquired pneumonia occurs in children who are receiving mechanical ventilation, and 77% of urinary tract infections are associated with indwelling bladder catheters.^66,94,101 NNIS data and related research have also identified the following risk factors for all types of pediatric healthcare-acquired infections:

• Young age, particularly less than 1 year

• Immunosuppression, caused by underlying disease or immunosuppressant drugs

• Chronic disease

• Presence of invasive devices, including central venous catheters, bladder catheters, and endotracheal tubes

• History of antibiotic use

• Medical diagnosis, except for cardiac and neurosurgical diagnoses

• Use of critical care services^17,66,94,101

Healthcare-acquired infections increase length of stay and contribute significantly to patient morbidity and mortality, and thus are the target of improvement efforts launched by the Joint Commission and the Institute for Health Care Improvement, as well as by the Pediatric Affinity Group, a pediatric critical care consortium sponsored by the NICHQ and CHCA.⁹⁴ Collectively these organizations have focused on preventing the two types of infection most pertinent to pediatric critical care: central line-associated blood stream infections and ventilator-associated pneumonia.^56,94,108

Preventing Central Line-Associated Blood Stream Infections

Because critically ill children are often dependent on vascular access for monitoring and for fluid, blood product, and medication administration, catheter line-associated blood stream infections are a significant patient safety risk in pediatric critical care units. In pediatric critical care units more than 90% of blood stream infections are associated with central venous catheters; most are caused by skin bacterial flora such as coagulase-negative staphylococcus.^94,101 Mortality from central line-related blood stream infections can be as high as 18%.¹⁰ Substantial reduction in central line-associated blood stream infections is possible through focused quality improvement efforts such as the application of the Institute for Healthcare Improvement’s (IHI) Central Line Bundle of recommended practices and the related Pediatric Affinity Group recommended “change package” of interventions proven to reduce blood stream infections.^1,14,108

Practices to reduce the incidence of central line-associated blood stream infections include:

• Hand hygiene

• Maximal barrier precautions

• Chlorhexidine skin antisepsis

• Optimal catheter site selection

• Daily review of line necessity

The Central Line Bundle recommended by the IHI is described further in Box 22-6.

Box 22-6 Practices to Reduce the Incidence of Central Line-Associated Blood Stream Infections, Adapted from the Institute for Health Care Improvement Central Line Bundle*

Hand Hygiene

As with all healthcare-acquired infection prevention programs, conscious hand hygiene including use of a soap and water or alcohol based hand rub

• Before and after inserting and handling catheter insertion site

• Before and after touching catheter insertion site

• Touch only before antisepsis for placement or with aseptic technique

• Before and after inserting, replacing, accessing, repairing, or dressing a CVC

• When hands are obviously soiled or contaminated

• Between patients

• Before donning gloves and after removing gloves

• After using bathroom

Maximal Barrier Precautions

Use of maximal barrier precautions including use of cap, mask, sterile gown, sterile gloves, and sterile drape

• Use a central line checklist that includes barrier precautions

• Keep equipment, including barriers, stocked in a central line cart that is readily accessible

• Prevent unnecessary interruption of barriers to get supplies

• Create a culture in which clinicians remind each other to maintain precautions

Chlorhexidine Skin Antisepsis for Children Older Than 2 Months

Prepare skin for line insertion with a solution of 2% chlorhexidine, 70% isopropyl alcohol

• When using stick applicator, friction scrub back and forth for 30   seconds

• Allow antiseptic to dry for approximately 2   minutes

Optimal Catheter Site Selection

Select most optimal site for insertion

• In adults the subclavian vein is the preferred site except for patients with high bleeding risk

• In children, when subclavian access is not feasible, the femoral vein is the preferred site

• Avoid using the jugular vein, because it is associated with increased incidence of infection²⁵

Daily Review of Line Necessity

• Prompt removal of unnecessary lines

• Incorporate the line review into preexisting multidisciplinary rounds

• Include assessment of line and consideration of removal on a daily goal sheet

• Record time and date of line placement in an accessible place

Adapted from the Institute for Healthcare Improvement: 5 Million lives campaign: how-to guide—prevent central line infections. Copyright 2007, Institute for Healthcare Improvement. Available at: http://www.ihi.org/explore/CentralLineInfection/Pages/default.aspx. Accessed October 8, 2011.⁴⁵

^* Note that the Central Line Bundle was developed for adult critical care patients, with supporting evidence from that population.

Ventilator-Associated Pneumonia

Along with central line-associated blood stream infections, the IHI and the NICHQ-CHCA Pediatric Affinity Group identify ventilator-associated pneumonia (VAP) as a critical patient safety improvement effort for pediatric critical care units.^23,94,108 VAP is defined as pneumonia that evolves at least 48   h after endotracheal intubation and the start of mechanical ventilation. Approximately 5.1% of children receiving mechanical ventilation develop VAP.²⁷ Risk factors for VAP in children include antibiotic administration, underlying chronic condition, gastroesophageal reflux, supine position, presence of a nasogastric tube, immobility, and surgery of the head, neck, or upper abdomen.^23,94 The criteria for diagnosing VAP in children were adapted by Curley et al in 2006 from CDC criteria and include²³:

• Mechanical ventilation for more than 48   h, fever (≥  38° C), and leukopenia (<  4000 white blood cells [WBCs] per mm³) or leukocytosis (≥  12,000 WBCs/mm³) with no other recognized source

• Any two or more of the following:

New onset purulent sputum

New or worsening cough, dyspnea, or tachypnea

Crackles or bronchial breath sounds

Worsening gas exchange and two or more serial chest radiographs with at least one of the following findings: new or progressive and persistent infiltrate, consolidation, or cavitation

There are additional customized criteria for children younger than 1   year, between 1 and 12   years old, 13 years or older, and for immunocompromised children.²³ Interventions to prevent VAP have also been extrapolated from adult research and initiatives. They include:

• Elevating the head of the bed to 35 to 45 degrees

• Daily assessment of extubation readiness

• Daily holiday from sedation

• Peptic ulcer prophylaxis

• Venous thromboembolism (deep vein thrombosis) prophylaxis

The effect of daily sedation holidays in children and the appropriateness of venous thromboembolism prophylaxis have not been studied as well in children and should be enacted only after thoughtful consideration and an analysis of the risks and benefits.²³ The IHI and Pediatric Affinity Group recommendations for the prevention of VAP are more fully described in Box 22-7.

Box 22-7 Practices to Reduce the Incidence of VAP, Adapted from the Institute for Health Care Improvement VAP Bundle and the CHCA-NICHQ Pediatric Affinity Group Getting to Zero Campaign

Bundle

• Head of bed elevated to 35 to 45 degrees

• Daily assessment of extubation readiness

• Daily holiday from sedation

• Peptic ulcer prophylaxis

• Deep vein thrombosis prophylaxis

Additional Care

• Provide oral hygiene (using chlorhexidine if patient is older than 2   months)

• Use in-line suction catheters or single use only open suction catheter systems and store suction devices in a clean environment

• Drain ventilator circuit away from patient every 2-4   h

• Change ventilator circuits and in-line suction catheters only when malfunctioning or visibly soiled

• Perform hand hygiene before and after handling circuit

CHCA, Child health corporation of America; NICHQ, national initiative for children’s health care quality; VAP, ventilator-associated pneumonia.

Adapted from Curley MA, et al: Tailoring the Institute for Health Care Improvement 100,000 Lives Campaign to pediatric settings: the example of ventilator-associated pneumonia. Pediatr Clin North Am 53:1231-1251, 2006; Stockwell JA: Nosocomial infections in the pediatric intensive care unit: affecting the impact on safety and outcome. Pediatr Crit Care Med 8(Suppl 2):S21-S37, 2007.
