Finger spreader (finger abduction splint)

The finger spreader (finger abduction splint) is fabricated of foam rubber and positions the fingers and thumb in abduction. According to Bobath,³ the purpose of the splint is to “obtain extension of wrist and fingers. . . . Abduction not only facilitates extension of the fingers, but also reduces flexor spasticity throughout the whole arm. . . . It has a better and more dynamic effect than the use of a (standard) splint and reduces the possibility of edema.” One should note that Bobath’s rationale is not consistent with the current understanding of motor control and related neurological principles.

A sturdier version of this splint (fabricated of low-temperature plastic) was proposed by Doubilet and Polkow.⁹ They recommended wearing the splint only during the day. Their paper includes anecdotal evidence of the effectiveness of the splint.

The finger abduction splint was worn by fifteen patients who were two to six months post stroke, these patients exhibited moderate to severe spasticity of the fingers and wrist, decreased range of motion, and edema in the wrist and hand. After one week of using the splint plus standard treatment in the therapy sessions a moderate reduction of spasticity was seen in these patients.

Doubilet and Polkow⁹ concluded that the splint results are promising and warrant continued trial and experimentation.

Mathiowetz, Bolding, and Trombly³⁰ objectively evaluated the finger abduction splint in a study investigating the effects of a variety of splints on the distal muscle activity of normal and hemiplegic subjects. Subjects wore the splints while performing resistive activities with the opposite hand. The results indicated “significantly greater EMG activity for the finger spreader compared to no device in the flexor carpi radialis of normal subjects during grasping” with the contralateral hand. In hemiplegic subjects, the finger spreader did not evoke less EMG activity than no device. According to the authors, the belief that this splint decreases spasticity shortly after application needs to be questioned seriously.

The finger spreader may be useful in maintaining the length of the flexors; however, wrist position is not considered with this splint, and the therapist must be aware of the wrist position. To control this problem, the therapist may combine the finger spreader with a standard wrist extension splint. Because the splint is subtle in terms of corrective forces, it may be indicated for patients with low tolerance for other, more cumbersome devices and for patients with low pain thresholds. Donning and doffing procedures are straightforward for the confused patient (Fig. 13-1).

Figure 13-1 Bobath finger spreader (finger abduction splint).

Firm cone

The firm cone can be fabricated of low-temperature plastic or purchased commercially; it is based on the traditional theories of Rood. Rood’s theory (as interpreted by Stockmeyer⁴⁶) states that firm and prolonged pressure over the flexor surface of the palm and fingers results in an inhibition of the long flexors. A more current understanding of the mechanism of this splint from a biomechanical and functional perspective is that the cone is positioned to place stretch on the shortened long flexors and is graded progressively to increase stress to the soft tissues to promote a more normal resting length. The cone initially is positioned with the narrow end of the cone toward the radial side of the hand in the web space if the hand is excessively tight. As the hand begins to relax from the directed stress, the ideal biomechanical position is for the cone to be positioned opposite to the initial position; that is, the wide end of the cone is placed in the radial side of the hand in the web space, and the narrow end is placed in the ulnar side of the hand (Fig. 13-2). The therapist can use strapping material to hold the cone in place. This device was included in the study by Mathiowetz, Bolding, and Trombly;³⁰ the researchers found that the cone did not evoke significantly less EMG activity during contralateral resisted function.

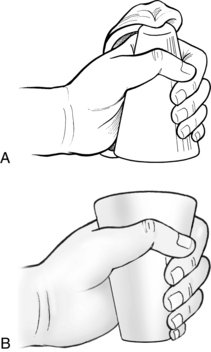

Figure 13-2 A and B, Firm cone.

Neurophysiological principles aside, the cone may be an effective positioning device for patients who have developed contracture in the long flexors. Combined applications of the cone with a standard wrist-extension splint, controlling the stretch on the wrist and digit flexors separately, are feasible. The size of the cone and the angle of wrist extension can be graded as the patient’s status improves.

Another practical use of the cone is in the prevention of maceration of tissue in patients with moderate to severe flexion of the digits. The maintenance of flexor length is required for hygiene and cosmesis. Similar to the use of the finger abduction splint, the use of the cone in isolation does not provide wrist support, thus predisposing the wrist to a flexed posture. Donning and doffing procedures are straightforward.

Orthokinetic orthotics

According to Neeman and Neeman,³⁴ the term orthokinetic orthosis “describes a cuff-shaped dynamic orthopaedic appliance which does not include rigid polymer or metal components. It does not apply any extraneous modulating force or constraint, in contrast to the typical splint.” The orthokinetic cuffs designed by Blashy and Fuchs-Neeman¹ have been used for almost 40 years for patients with muscle weakness, muscle paresis, and resulting agonist-antagonist imbalance. The action of these orthoses is “exerted through internal restoration of neuromuscular balance between agonist and antagonist musculatures, by input of mild neural stimuli to mechanoreceptors in specifically targeted skin areas.”¹ The designers state that the neurophysiological mechanism involves activation of paretic agonist muscles and reciprocal inhibition of antagonist musculature.

The orthokinetic cuffs are fabricated of ribbed elastic bandage material applied circumferentially around various aspects of the patient’s upper extremity and are held on the arm by fasteners. Half of the cuff is designed to be elastic (the active field), and the other half of the cuff is sewn to reduce the stretch (the inactive field). The active field is worn over the muscle belly to be activated, and the inactive field is placed over the antagonist.

Neeman and Neeman have published several studies^33-36 on the effectiveness of these cuffs in the rehabilitation of the upper extremity after stroke. They concluded that use of the cuffs results in pronounced restoration of agonist-antagonist muscle balance, increased active range of motion (ROM) throughout the extremity, and increased ability to participate in functional tasks.

The orthokinetic cuffs have been subjected to the greatest number of efficacy studies, all showing positive results. Fabrication guidelines are stated clearly in the cited studies, and the cuffs are applied easily and are comfortable.

The neurophysiological rationale for the orthokinetic cuff has not been established fully. The active field may produce cutaneous stimulation and activate the exteroceptors of the skin and Ia afferent neurons of the muscle spindle. The inactive field seems to provide sustained deep pressure, which may produce an inhibitory response (Fig. 13-3).

Figure 13-3 Orthokinetic orthotics.

Orthokinetic wrist splint

The dynamic design of the orthokinetic wrist splint is based on the concepts of Rood (as cited in Stockmeyer⁴⁶). Components of the splint include a firm cone in the palm of the hand, a volar-based forearm support, elastic straps to secure the forearm support by acting as orthokinetic cuffs, and a wrist hinge.²² This splint has been recommended for patients with flexor hypertonicity who have at least minimal voluntary extensor activity. However, no data support the effectiveness of this splint (Fig. 13-4).

Figure 13-4 Orthokinetic wrist splint.

Spasticity reduction splint

The spasticity reduction splint was developed by Snook⁴⁴ and is based on the Bobath³ principle of reflex-inhibiting patterns that has not been supported by current research. The splint is fabricated of low-temperature plastic. The forearm support is dorsal based and continues into a volar-based finger support. The wrist is positioned in 30 degrees of wrist extension; the MCP joints are at 45 degrees of flexion. The interphalangeal (IP) joints are extended fully, the fingers are abducted with separators, and the thumb is positioned in abduction and extension. Snook⁴⁴ notes that if a flexion contracture is present, the wrist may be positioned at neutral or slightly less than neutral without producing a significant effect on the effectiveness of the splint.

Snook⁴⁴ recommended an intermittent wearing schedule, observing that “a decrease in tone is usually seen almost immediately upon splint application; however, after an extended period of wearing time, tone tends to gradually increase.”

Snook’s original article described fabrication and provided clinical observations and case studies. Research was not included in this article. Snook⁴⁴ concluded that based on preliminary findings, the spasticity reduction splint has an effect “on the reduction and normalization of tone” and should be considered as a therapeutic tool when the therapist is dealing with a spastic hand.

McPherson³¹ evaluated the effect of this splint on five severely and profoundly handicapped subjects (no patients who had strokes were included in this study). His results demonstrated a significant reduction in hypertonicity after four weeks of splint use. He further stated that the effects of the splint were not permanent; after the splints were removed, hypertonicity increased. The author measured “the force of spastic wrist flexors in pounds of pull on a spring weighted scale.”

The fabrication guidelines for this splint are outlined in Snook’s article.⁴⁴ Compliance in wearing schedules may be problematic because the splint is bulky and the wrist and hand are held in an extreme range. Many patients require assistance donning the splint, depending on the level of flexion posturing in their hands.

Although the principles that this splint was based on originally are out of date, this splint maintains a stretch to the musculature that traditionally becomes shortened in patients after stroke. It may be useful as an adjunct to treatment focusing on the maintenance of soft-tissue length. Further research is required on patients after cerebrovascular accident (CVA) to document this splint’s effectiveness (Fig. 13-5).

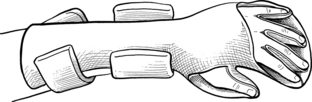

Figure 13-5 Spasticity reduction splint.

Pressure splints (air splints)

The use of inflatable pressure splints as adjuncts to therapy was first advocated by Johnstone.¹⁹ These splints are commercially available and exert continuous or intermittent pressure to the area to which they are applied. The pressure of the splints should not exceed 40 mm Hg.⁴² According to Poole and colleagues,⁴² “inflatable splints have been used with patients who have had a stroke to reduce tone, facilitate muscle activity around a joint, facilitate sensory input, control edema, and reduce pain.” Their article includes a review of the neurophysiological rationales for the use of inflatable splints.

Three studies have been published of investigations of the effectiveness of inflatable splints on patients who have had strokes. The earliest was a case study by Bloch and Evans;² its results indicated a reduction in spasticity and an increase in hand ROM.

Nicholson³⁸ (as cited by Poole and Whitney⁴¹) treated patients for one week with inflatable splints along with weight-bearing patterns. At the end of the treatment protocol, no improvements had occurred in sensation, strength, and ROM.

Likewise, Poole and colleagues⁴² treated 18 persons and assigned them to splint or nonsplint treatment protocols. The splinted group wore the splint for 30 minutes five days a week for three weeks. The splinted patients did not perform activities with the splinted extremity. The authors’ results indicated no statistically significant differences in mean change in upper extremity sensation, pain, and motor function between the splinted and nonsplinted groups.

Although inflatable pressure splints do not seem to elicit the effects originally proposed, some therapists may consider using this style of splint to enhance functional performance during weight-bearing activities (Fig. 13-6). In essence, this splint can be used to control the degrees of freedom in the upper extremity, thereby promoting functional use during daily activities.

Figure 13-6 Inflatable pressure splint.

Wrist extension splints

Wrist splints are commonly used in stroke populations to prevent wrist contracture and to stabilize the wrist to provide the fingers a steady base from which they can function. Lannin and colleagues²⁵ aimed to determine whether wearing a hand splint, which positions the wrist in either a neutral or an extended position, reduces wrist contracture in adults with hemiplegia after stroke (N=63). The subjects were randomized to either a control group (routine therapy) or one of two intervention groups (routine therapy and splint in either a neutral or an extended wrist position). Participants in the neutral splint group wore a hand splint, which positioned the wrist in zero degrees to 10 degrees extension, and those in the extension splint group wore a hand splint, which positioned the wrist in a comfortable end-of-range position (greater than 45 degrees wrist extension) with the MCP and IP joints extended. The splints were worn overnight for, on average, between nine and 12 hours, for four weeks. The outcome was extensibility of the wrist and long finger flexor muscles (angle of wrist extension at a standardized torque). The authors concluded that splinting the wrist in either the neutral or extended wrist position for four weeks did not reduce wrist contracture after stroke.

Resting splints

The resting splint can be dorsal or volar based. The suggested position is 20 to 30 degrees of wrist extension, MCP joints at 40 to 45 degrees of flexion, IP joints in 10 to 20 degrees of flexion, and thumb in opposition to the index finger.²⁹

One of the most important aspects of clinical reasoning is that each patient must be evaluated and treated individually, and these goniometrics should be used as a guideline only. The goal is to adjust the splint to promote a low-load prolonged stress (LLPS) to achieve a more advantageous biomechanical position as necessary.

Lannin and colleagues²⁴ evaluated the effects of four weeks of hand splinting on the length of finger and wrist flexor muscles, hand function, and pain in people with acquired brain damage via randomized, assessor-blinded trial. They examined 28 adults, all within six months of injury. Subjects in both experimental (n=17) and control (n=11) groups participated in routine therapy-motor training for upper limb use and upper limb stretches five days a week. The experimental group also wore an immobilizing hand splint in the functional position (10 to 30 degrees wrist extension) for a maximum of 12 hours each night for the duration of the four-week intervention period. Outcomes included length of the wrist and extrinsic finger flexor muscles measured via torque-controlled range of wrist extension with the fingers extended, the Motor Assessment Scale, and pain via a visual analog scale. The authors found that the effects of splinting were statistically nonsignificant and clinically unimportant, and they concluded that “an overnight splint-wearing regimen with the affected hand in the functional position does not produce clinically beneficial effects in adults with acquired brain impairment.”

The resting splint is used commonly in clinics. Although the splint may be effective in the long-term for patients after stroke, therapists must analyze critically the effects of this splint on the patient with acute and subacute impairments. This splint blocks any automatic and voluntary attempts at movement, thereby promoting learned nonuse. It completely covers the surface of the hand (thus preventing sensory input) and gives full passive support to the wrist and digits, which may be contrary to treatment programs attempting to train patients to be responsible for the positioning and ranging of their hands. Therapists need to consider alternatives to this splint.

Mathiowetz, Bolding, and Trombly³⁰ demonstrated that the use of a volar-based resting splint increased EMG activity in hemiplegic subjects who were performing grasping tasks with the opposite extremity. They concluded that this type of volar splint “is the least desirable positioning device while the hemiplegic subject is doing any activity that requires a comparable effort to squeezing fifty percent maximal voluntary contraction of grip.”

Resting splints can be custom fabricated; they also are available commercially. The therapist may consider nighttime use of the resting splint for prevention of soft-tissue contracture, but this style of splint should not be worn during daytime because it completely blocks spontaneous function, sensory input, and self-management of the hand and may promote learned nonuse (Fig. 13-7).

Figure 13-7 Resting pan splint and submaximal range splint.

Tone and positioning splint

The tone and positioning splint is semidynamic and is commercially available from Smith & Nephew Rolyan. The splint supports the thumb in abduction and extension with a neoprene glove. The tone and positioning splint includes an elastic strap that is wrapped spirally up the forearm, providing a dynamic assist into pronation and supination. Data supporting the effectiveness of this splint are not available.

Casey and Kratz⁶ have published a paper on the thumb abduction supinator splint. This splint is similar in design to the commercially available tone and positioning splint. Their paper included fabrication guidelines and recommended a wearing schedule of three to four hours on, and then 30 minutes to one hour off to allow the skin to be exposed to the air. They recommended using the splints on patients with mild to moderate spasticity without severe contractures: those who posture in a pattern of forearm pronation, with a fisted hand, and with the thumb in the palm.

The tone and positioning splint and thumb abduction supinator splint may present difficulties to patients learning to don and doff splints independently. These splints are designed to be used to enhance positioning and to be worn during functional activities. They may be particularly effective if worn during activities that result in stereotypical posturing of the limb (e.g., gait and transfers). They also may be effective during upper extremity activities because the digits are free to move (Fig. 13-8).

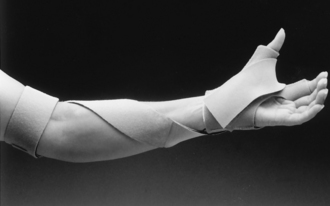

Figure 13-8 Rolyan tone and positioning splint.

(Courtesy Smith & Nephew Rolyan, Germantown, WI.)

Thumb loop and thumb abduction splint

Variations of the thumb abduction splint have been proposed by several authors.^8,16,45 The papers cited in the references include fabrication guidelines; the splint is commercially available. The thumb abduction splint is considered a semidynamic splint, and the focus of positioning is on thumb and wrist alignment. The strapping material used in the fabrication of this splint positions the thumb in abduction and aligns the wrist in a position of slight radial wrist extension. The hand is placed in a position that enhances prehension, manipulation, and release of objects, and provides the freedom of movement needed for bilateral coordination.¹⁶

Stern⁴⁵ stated that another indication for use is during any activity involving effort, particularly when performing fine activities with the unaffected limb results in increased thumb adduction on the affected side. Therefore, this splint has been suggested for positioning and enhancement of functional performance.

Stern⁴⁵ cautioned that, “For this splint to be of any value, the patients must be able to use the affected hand for grasp and release, their main problem being adduction of the thumb, which prevents sufficient opening of the hand to allow for palmar grasp.” Patients with fixed adductor contracture are less likely to benefit.

Research evaluating the effectiveness of this splint in the adult population is lacking. Currie and Mendiola⁸ evaluated the effectiveness of a variation of this type of splint on five children with “mild to moderate spastic hemiplegic cerebral palsy.” These children exhibited a cortical thumb (adducted thumb) at rest, and their hand functions were limited to a “raking” ulnar type of prehension pattern.

With the use of this splint, all five children’s resting thumb patterns were enhanced, and their prehension patterns improved to a radial grasp, usually in a three jaw chuck or large cylindrical prehension pattern, depending on the size of the object being manipulated (Fig. 13-9).

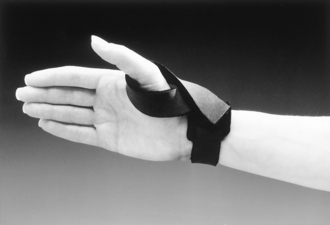

Figure 13-9 Rolyan thumb loop and thumb abduction splint.

(Courtesy of Smith & Nephew Rolyan, Germantown, WI.)

Hand-based thumb abduction splint

If the patient has controlled wrist movement in flexion and extension (not necessarily full wrist ROM, but some isolated control) but continues to have flexor activity influencing the digits, a hand-based thumb abduction C-spacer splint may be useful during functional activities. The splint is custom fabricated from thermoplastic material. The thumb abduction splint positions the thumb in an enhanced prehension pattern for manipulation of objects during grasp and release activities (Fig. 13-10).

Figure 13-10 Hand-based thumb abduction splint to be used when wrist control returns; thumb requires abduction assistance for functional opposition activities.

Mackinnon splint

Although the MacKinnon splint was developed for the pediatric population, it may be indicated at times for the adult population. The splint includes a dorsal-based forearm support that wraps three fourths of the distal half of the forearm, a dowel placed in the palm of the hand to provide pressure on the MCP heads, and rubber tubing attaching the dowel to the dorsal forearm support; the fingers are left free to assume functional patterns.

The goal of this splint is to release the overactive finger flexors and adductor pollicis to gain balanced muscle action of the wrist. The paper by MacKinnon, Sanderson, and Buchanan²⁸ included fabrication guidelines and observations of approximately 30 children who used the splint and gained improved hand awareness, increased use, and decreased spasticity when the splint was removed. Research regarding the effectiveness of this splint is not available, and it has not been documented for use with the adult patient recovering from CVA (Fig. 13-11).

Figure 13-11 MacKinnon splint.

Submaximal range splint

The submaximal range splint was described by Peterson;⁴⁰ its design is based on the clinical observation that muscles splinted on full stretch or maximal ROM increased in tightness.

The splint is fabricated in the fashion of a resting hand splint. The splint should position the distal extremity with the thumb in partial opposition to the index finger, the MCP and PIP joints in 45 degrees of flexion, with distal interphalangeal (DIP) joint extension, and the wrist in 10 to 20 degrees of extension; the splint should provide pressure to the palmar arch. If the patient cannot achieve this ideal range, each joint should be positioned in five to 10 degrees less than the available range.¹⁰ Fabrication guidelines are the same as those for a resting hand splint.

No research is available that evaluates the effectiveness of this splint, but the precautionary statements about the resting hand splint are similar to those for this splint design (see Fig. 13-7).

Serpentine splint

The serpentine splint must be custom fabricated from thermoplastic materials. The splint was originally designed for use with pediatric patients with cerebral palsy who had difficulty grasping objects. The splint is adapted easily to the adult with neurological impairments. The serpentine splint provides sufficient thumb abduction support, positions the hand and wrist in a more optimal position for function, and allows “active wrist function in the child with moderately increased tone.”⁴⁷ The designers of the splint feel that the serpentine splint inhibits the thumb-in-palm reflex by using the thumb abduction position.

The authors have used an adaptation of the serpentine splint with several patients after CVA, with positive outcomes. The serpentine splint can be used for patients with mild to moderate increased skeletal muscle activity (it is not recommended for the flaccid hand). This splint is never recommended for hands that exhibit severe increases in skeletal muscle activity for the reasons outlined previously in this chapter.

The wrist is positioned in 20 to 30 degrees of extension, the thumb is positioned in 30 to 40 degrees of abduction, and the material continues two thirds of the length proximally up the forearm. The splint positions the hand in a more functional position for grasping exercises and activities.⁴⁷ The splint is worn during the day for activities and wrist support and is removed at night. The serpentine splint requires maximal assistance for application and moderate assistance for removal and is a practical alternative to more conventional static splints. Because the splint is an open splint, it is less confining; it also is lightweight and allows for air circulation, which results in decreased perspiration, decreased skin maceration, and reduced potential for skin breakdown. When fabricating this splint, the therapist places the roll in the palm, then wraps it around the ulnar aspect of the hand, forms it over the dorsum of the hand through the web space, brings the roll over the thenar eminence and under the base of the thumb, and continues wrapping the material two thirds of the way up the forearm. The seam made by rolling the splint material should face away from the skin to prevent skin irritation and breakdown (Fig. 13-12).

Figure 13-12 Serpentine splint.

Drop-out splint

The drop-out splint is a custom-fabricated splint designed to decrease elbow contractures that may be common in the patient after stroke. The splint is designed from thermoplastic material positioned volarly on the humerus, distal to the axilla; it extends into the palm of the hand proximal to the distal palmar crease. The splint is fabricated with the shoulder and humerus externally rotated and the forearm in as much supination as possible. It is customized with a gentle stretch to the contracted elbow joint (not to the point of discomfort) using the LLPS principles in the section Treatment of Joint Contractures with Low-Load Prolonged Stress. The splint is used during rest periods to maximize the low-load prolonged stretch to the elbow. The elbow contracture is measured with a goniometer before application of the splint and checked weekly to allow appropriate adjustments of the splint for increased extension as needed. As with all splints used in the patient who has had a stroke, but especially for splints using the low-load prolonged stretching principles, the therapist must monitor the upper extremity frequently for skin maceration and breakdown (Fig. 13-13).

Figure 13-13 Drop-out splint.

Belly gutter splint for proximal interphalangeal joint flexion contractures

The belly gutter splint is a static PIP extension splint custom fabricated from thermoplastic material. Many PIP extension splints are commercially available. Joint Jack, LMB Wire-foam, and safety-pin splints, which apply two points of volar pressure to make a perpendicular pull on the involved segments, are a few. If the flexion contracture is greater than 35 degrees, these splints are not effective. Dynamic extension splints and the belly gutter splint provide traction tension at a 90-degree angle to the phalanx. The belly gutter splint provides the 90-degree angle pull by incorporating a convex belly in the middle of the gutter.⁵² When fabricating and applying this splint, the therapist must place the Velcro strap directly over the PIP joint; the belly of the splint must be directly under the PIP joint axis for the splint to be effective. The authors have found this splint to be effective for flexion contractures of the PIP joint from approximately 15 degrees of contracture to 35 degrees of contracture. A PIP joint contracture of more than 35 degrees requires dynamic splinting.¹¹ The belly gutter splint is used at the beginning of treatment for one hour on and one hour off. Gradually, as the contracture decreases, the time may be extended to as much as four hours, but as always, close monitoring of the splint is mandatory (Fig. 13-14).

Figure 13-14 Belly gutter splint for proximal interphalangeal joint flexion contractures.

Inflatable hand splint

The inflatable hand splint, which is commercially available, is marketed for contracture management of the population in the chronic stages of stroke rehabilitation. The splint consists of an adjustable volar-based wrist support that is easily adjusted to achieve the desired range of extension. The palmar aspect of the splint is an air bladder that can be inflated or deflated easily, depending on the desired stretch and level of contracture. The splint is easily donned and is comfortable (Fig. 13-15).

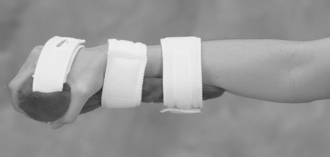

Figure 13-15 DeRoyal’s Pucci Air-T Inflatable Hand Orthosis.

(Manufactured and distributed by DeRoyal.)

The therapist must consider many issues when prescribing or designing a splint for use on persons after stroke. The following section exposes therapists to the complexity of issues to be considered during the splinting evaluation.

Spasticity

Many commonly used splints are applied in the hope that they will inhibit spasticity with a result of improved function. As outlined in Chapter 10, the cause-and-effect relationship between spasticity and function has not been supported in available research.

The link between spasticity and contracture has been well-documented; see Chapter 10. Therefore, splinting of patients who are experiencing distal spasticity may be indicated to prevent painful contractures and loss of tissue length. This differentiation is important if therapists are to analyze objectively the effectiveness of the splints provided.

Hummelsheim and colleagues¹⁷ have demonstrated that prolonged stretch resulted in “a significant reduction in the spastic hypertonus in elbow, hand and finger flexors” of the 15 patients they studied. Spasticity was measured by the Ashworth Scale. The EMG recordings included in their study objectively demonstrated that late EMG potentials are reduced or disappear after sustained muscle stretch. The authors hypothesized that “the beneficial effect resulting from sustained muscle stretch is due to stretch receptor fatigue or adaptation to the new extended position.”

Although this study was based on manual stretching techniques, the same principles may be applied to splinting. Therefore, splinting may be used as an adjunct to interventions aimed at relaxing the distal extremity.

Feldman¹⁰ recommended early splinting interventions for patients with spasticity; treatment should begin before the spasticity becomes severe. She stated that “the longer tonal influences are left to bear on the joints, the greater the risk for contractures and other complications.” Feldman also warned that patients with severe spasticity should not be considered for splinting programs. These patients are at risk for skin breakdown, edema, and circulatory impairment. Instead, Feldman recommended interventions with spasticity medication and nerve blocks for these patients (see Chapter 10).

Soft-tissue shortening

Many of the wrists and hands that therapists evaluate are immobilized. This immobilization may be because of weakness, static splinting for prolonged periods, excessive skeletal muscle activity, or contracture. The deleterious effects of immobilization begin to occur soon after immobilization begins.

Consequences of prolonged positioning following immobilization include anatomical, biochemical, and physiological changes. Specific changes include the number of sarcomeres, protein content, loss of muscle weight, the amount of passive and active soft-tissue tension, decreased aerobic function, and type I and II fiber atrophy.¹⁴

From their review of the literature, Gossman, Sahrman, and Rose¹⁴ concluded that “evidence from experimental studies and clinical observations clearly indicates that muscle is an extremely mutable (prone to change) tissue. Change is more pronounced when a muscle is shortened than when it is lengthened. The changes can be deleterious, but they are reversible, a condition that can be used in correcting movement dysfunction.”

Halar and Bell¹⁵ stated that if mild contractures have formed, prolonged stretches for 30 minutes are effective. More severe contractures may require longer sustained stretch through splinting. They recommended application of heat before splinting to decrease the viscous properties of connective tissue and maximize the effects of stretching.

During the splinting evaluation, the therapist must assess the differences between extrinsic and intrinsic tightness and joint contractures. Therapists must understand the biomechanical mechanism of the extrinsic flexors and extensors. To review, when the wrist and digits are in composite flexion (i.e., all joints are flexed), the extensors are stretched fully and the flexors are slack. In contrast, when the wrist and digits are in composite extension (i.e., all joints are extended), the flexors are stretched fully and the extensors are slack (Fig. 13-16).

Figure 13-16 Normal excursion of the flexor and extensor muscles acting on the wrist and hand. A, Wrist and digits flexed: extensors are fully stretched (elongated) and the flexors are slack (shortened). B, Wrist and digits extended: flexors are fully stretched (elongated) and extensors are slack (shortened).

Fess and Philips¹¹ suggested altering wrist posture to detect extrinsic soft-tissue involvement. If extrinsic tightness is evident, changing the wrist posture from slight extension to flexion results in an increase in the ROM of the digits (the tenodesis effect). In contrast, if ROM limitations are caused by a pathological condition of the joint, an altered wrist position does not affect the ROM. Evaluation procedures for assessing extrinsic tightness are as follows: (1) extend the wrist with the digits flexed, and (2) maintain the wrist in extension and attempt to extend the digits. If composite extension can be achieved, then the extrinsic flexors have full excursion. If the digits cannot be extended while the wrist is in extension, the evaluation must continue to determine whether the limitation is related to a pathological joint condition or extrinsic flexor tightness. The evaluation continues as follows: (3) flex the wrist and determine if the excursion of the digits toward extension (tenodesis) is increased. If so, the limitation is due to extrinsic flexor tightness. If no change in available digit extension occurs, the pathological condition of the joint is the limiting factor⁴⁸ (Fig. 13-17).

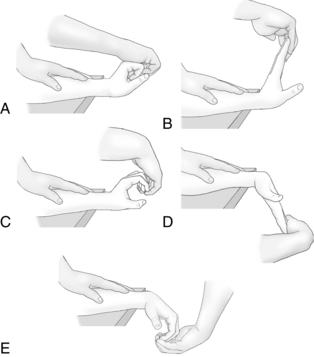

Figure 13-17 Testing for extrinsic shortening. A, The therapist extends the wrist with the digits flexed. This position partially elongates the long flexors. B, The therapist maintains the wrist in extension and extends the digits. If composite extension can be achieved, the extrinsic flexors have full excursion and the evaluation is complete. C, If the therapist cannot extend the wrist and digits fully simultaneously, the evaluation must continue to determine whether the limitation is related to a pathological joint condition or extrinsic flexor tightness. D, The therapist flexes the wrist to determine if excursion of the digits toward extension (tenodesis) is increased. If so, the limitation is due to extrinsic flexor tightness. E, If no change in available digit extension occurs while the wrist is flexed, the pathological joint condition (i.e., bony contracture) is the limiting factor.

In terms of the biomechanics of the intrinsic mechanism, when the MCP joints are flexed and the IP joints are extended (intrinsic plus), the intrinsic muscles are shortened. In contrast, when the MCP joints are extended and IP joints are flexed, the intrinsic muscles are fully stretched (Fig.13-18).

Figure 13-18 Normal excursion of the intrinsic muscles (lumbricales). A, When the metacarpophalangeal joints are flexed and the interphalangeal joints are extended (“intrinsic plus”), the intrinsic muscles are in a shortened position. B, When the metacarpophalangeal joints are extended and the interphalangeal joints are flexed (“intrinsic minus”), the intrinsic muscles are elongated.

Fess and Philips¹¹ suggested evaluating intrinsic tightness by holding the MCP joint in extension and attempting to flex the PIP joint; full passive flexion of the PIP joint is absent if the intrinsic muscles have become tight. With intrinsic tightness, however, one may possibly attain full passive PIP joint flexion with the MCP joint in flexion (Fig. 13-19).

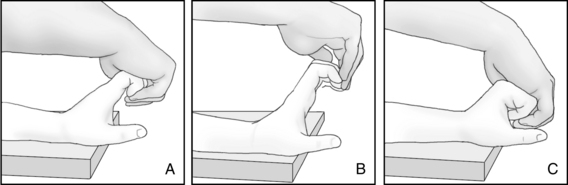

Figure 13-19 Testing for intrinsic shortening. A, The therapist holds the metacarpophalangeal joints in extension and attempts to flex the proximal interphalangeal joints. If the therapist can achieve this position, then full excursion of the intrinsic muscles is present. The evaluation is complete. B, If therapist cannot achieve full passive flexion of the proximal interphalangeal joint while the metacarpophalangeal joints are extended, the intrinsic muscles have become tight. C, With intrinsic tightness, however, the therapist possibly may attain full passive proximal interphalangeal flexion with the metacarpophalangeal joint in flexion.

Many patients also develop contracture of the extensor tendons. Therapists must determine whether the alteration of the position of the MCP joint affects the amount of flexion obtained at the PIP joint. If shortening or adhesion of the extensor has occurred, the therapist is able to flex the PIP joint further with the MCP joint extended than with it flexed.⁴⁸ This phenomenon occurs because extension relaxes the extensor system, whereas flexion builds up the passive tension.

Collateral ligament tightness of the PIP joint limits PIP joint motion regardless of the position of the MCP joint.¹⁸ The testing is performed by flexing the PIP joint with the MCP joint extended and again with it flexed; if PIP joint motion is limited in both testing positions, the collateral ligaments of the PIP joint have shortened (Fig. 13-20) and splinting of the PIP joint is indicated. A dynamic PIP extension splint is used if the contracture is greater than 35 degrees; a static PIP extension splint is used if the contracture is less than 35 degrees.¹¹ A combination of both splints sometimes is used; the dynamic splint is applied for the more severe contracture, and a static extension splint is worn after the contracture is reduced to less than 35 degrees.

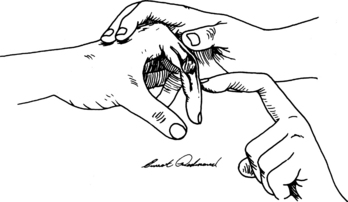

Figure 13-20 Proximal interphalangeal joint contracture. Collateral ligament tightness limits proximal phalangeal joint motion, regardless of the position of the metacarpophalangeal joint.

(From Hunter JM, Mackin E, Callahan A: Rehabilitation of the hand: surgery and therapy, ed 4, St Louis, 1995, Mosby.)

Loss of active flexion of the DIP joint may be caused by joint contracture or contracture of the oblique retinacular ligament. The therapist performs the oblique retinacular ligament tightness test by passively flexing the DIP joint with the PIP joint in extension and then repeating the test with the PIP joint in flexion. If more motion occurs when the PIP joint is flexed than when it is extended, a shortening or contracture of this ligament has occurred (Fig. 13-21). If equal loss of flexion occurs with the PIP joint flexed or extended, a joint contracture is evident.¹⁸ Contracture of the DIP joint with decreased DIP flexion can be treated with the use of a flexion strap with the MCP, PIP, and DIP joints in as much flexion as possible. This strap can be fabricated from Velcro strapping and is commercially available (Fig. 13-22). The patient can use the strap intermittently during the day for one hour on and one hour off.

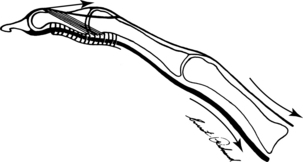

Figure 13-21 Oblique retinacular ligament.

(Redrawn from Tubiana R: The hand, Philadelphia, 1981, Saunders.)

Figure 13-22 Flexion (“Buddy”) strap.

Treatment of joint contractures with low-load prolonged stress

Neuromuscular dysfunction is a common cause of physiological joint restriction and contractures.²⁶ Splints are used to maintain or lengthen soft tissues and maintain joint integrity. If a joint has become contracted, the joint capsule becomes stiff, the synovial fluid becomes thickened from nonmovement, and the ligaments around one side of the joint become shortened, whereas the ligaments on the other side become lax. Soft-tissue involvement in contractures includes shortened tendons and skeletal muscle. High-load brief stretch manual therapy alone does not achieve plastic elongation of tissues over time.¹² LLPS involves holding the tissues in a low-lengthened position for a total end range time. A low-lengthened position is a passive position with a low-load stress (in which the patient feels a slight stress but one that he or she can tolerate for a significant amount of time, i.e., three to four hours total end range time). The total end range time increases over time to an ideal of six to eight hours. The soft tissue grows, not stretches, to the new lengthened position.²⁶

Current literature supports LLPS as the preferred method of lengthening shortened tissues. The common clinical practice of stretching contractures manually with high brief-load periods for one to two minutes is contraindicated in the literature.²⁶ The elongation accomplished by manual stretch alone shortens when the force is relaxed. Manual therapy prepares tissues but must be followed with splinting and activities to affect permanent changes.¹²

A study by Light and colleagues²⁶ tested knee contractures using high-load brief stretch or LLPS on 11 geriatric patients. All subjects had bilateral knee contractures; high-load brief stretch was the treatment for one knee, and LLPS was the treatment for the other. The LLPS in this study was accomplished by traction. LLPS produced a greater overall increase in passive ROM than did the high-load brief stretch.

Splinting to provide an LLPS is a noninvasive, nonstressful, and ideally painless treatment.²⁶ The treatment for joint stiffness and contracture is stress, which involves intensity (amount of effort), duration (amount of time), and frequency (amount of repetition).¹² Although all these stress factors are important, duration is the most important for LLPS, the optimal time being six to eight hours. This optimal duration usually must be built up slowly, beginning with one to two hours. As the joint contracture decreases, the splint must be readjusted regularly (usually weekly) to increase prolonged stress. LLPS is the principle used in some of the splints mentioned previously in this chapter, including the elbow drop-out splint, the belly gutter splint, and any dynamic splinting. As with all splinting, but especially in using LLPS splinting for patients with sensory impairments, therapists must monitor patients using these splints for skin breakdown.

Injury to the extremity

Because of decreased motor control and perceptual dysfunction (e.g., body neglect and somatoagnosia), many patients are at risk for injuries to the already compromised extremity. Many times these patients assume malaligned upper extremity patterns for prolonged periods. A common example may be observed during bed mobility training. Patients assume sitting postures from side lying and end up bearing their weight through the dorsum of their hands with the wrist flexed. This posture puts patients at risk of developing traumatic synovitis, increased edema, and pain. The patient, depending on the level of awareness, may maintain this maladaptive posture during the next task (e.g., dressing) before noticing the problem, resulting in the potential for tissue damage.

Another common alignment problem that puts patients at risk for injury occurs if upper extremity positioning devices are ineffective. Many patients are prescribed half or full lap trays to provide upper extremity support while they are seated in their wheelchairs. In many cases, the supported extremity slides between the lapboard and the patient’s trunk, pinning the wrist in extreme flexion. Depending on patient and staff awareness, this position unfortunately may be maintained for prolonged periods. Injury also can lead to pain and swelling, which in turn may trigger the initial symptoms of shoulder-hand syndrome.

Biomechanical alignment

The position a hand assumes at rest (the resting posture) has been documented by several authors. A summary of this posture is as follows:

The therapist must consider the concept of dual obliquity when evaluating the alignment of the hand. Because of a successive decrease in the length of the metacarpals from the radial to the ulnar side, objects held in the hand assume two oblique angles.³⁹ For example, if a pencil is held in the palm across the metacarpal heads (eraser toward the ulnar side) and the forearm is held in pronation resting on the table, the examiner can identify two oblique angles. The first angle is observed with the pencil point angled upward in relation to the wrist joint axis. The second oblique angle is observed on examination of height of each end of the pencil. The radial side is held higher than the ulnar side, that is, the pencil is not parallel to the table (Fig. 13-23).

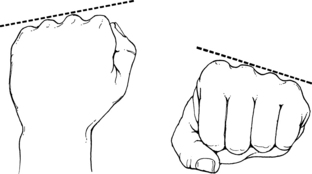

Figure 13-23 Dorsally, the consecutive metacarpal heads create an oblique angle to the longitudinal axis of the forearm. Distally, the fisted hand exhibits an ulnar metacarpal descent that creates an oblique angle in the transverse plane of the forearm.

(From Fess EE, Philips CA: Hand splinting: principles and methods, ed 2, St Louis, 1987, Mosby.)

The obliquity of the palmar transverse arch follows a line from “the second to the fifth metacarpal head and forms an angle of seventy-five degrees with the axis of the third ray.”⁴⁸ Therefore, from a biomechanical perspective, the firm cone splint discussed earlier for a moderately relaxed hand should be placed with the narrow end in the ulnar side and the wide end on the radial side, following the normal obliquity.

The therapist must note deviations from the resting posture; they assist in the design of the splint. Therapists must consider that patients may differ slightly from the normal resting posture because of heredity, habits, and job descriptions; examining the opposite hand is helpful in determining the “normal” resting posture for each patient.²²

The distal extremity assumes several typical alignment deviations after stroke. These deviations and their consequences include the following:

Loss of palmar arches

A familiar alignment problem in patients after stroke is the loss of palmar arches, or the development of a “flattened hand.” The maintenance of the palmar arches is crucial for hand function.⁴ Kapandji²⁰ outlines the arches of the hand as follows (Fig. 13-24):

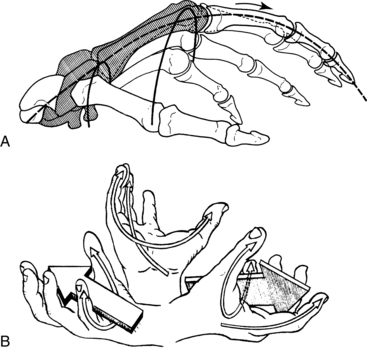

Figure 13-24 A, Side view of the longitudinal and transverse arches of the hand. The shaded areas show the fixed part of the skeleton. B, The thumb forms, along with the other digits, four oblique arches of opposition. The most useful and functionally important arch is between the thumb and index finger, used for precision grip. The farthest arch, between the thumb and little finger, ensures a locking mechanism on the ulnar side of the hand in power grips.

(From Tubiana R, Thomine JM, Mackin E: Examination of the hand and wrist, St Louis, 1996, Mosby.)

Patients lose their arches after stroke for a variety of reasons, including edema in the dorsum of the hand that biomechanically forces the metacarpals inferiorly, inactivity of the wrist and hand, prolonged and extreme wrist flexion (resulting in a flattening of the arches), and inappropriate support of the hand during weight-bearing activities.⁴

During evaluation of splinting, therapists should examine the arches of the hand and compare them with those of the unaffected hand. In the dorsal surface of a normal hand at rest, the MCP joints form an arch with the apex at the third metacarpal (i.e., the third metacarpal head is higher than the others are) (see Fig. 13-24). Many patients have a flattened arch (i.e., the MCP joints lose their arches), and in response the proximal phalanges hyperextend. This posture puts the patient at risk for developing a permanent claw-hand deformity and effectively blocks opposition of the thumb (Fig. 13-25).

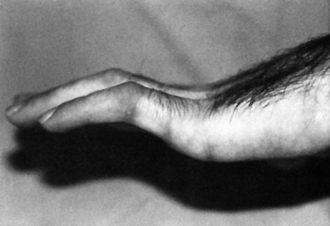

Figure 13-25 Flattening of the palmar arches resulting from hand paralysis. Hyperextension of the metacarpophalangeal joints and flexion of the proximal and distal interphalangeal joints occur because of an imbalance of the extrinsic flexor and extensor systems.

(From Hunter JM, Mackin E, Callahan A: Rehabilitation of the hand: surgery and therapy, ed 4, St Louis, 1995, Mosby.)

In these cases, splinting may be indicated to give outside support to the arches through upward pressure on the palmar surface of the hand. To be effective and give full support to the metacarpals, the splint must conform to the arches and be contoured to the individual’s hand. Commercially available splints are not effective for this type of intervention because they do not take into account the variability of arches.

For patients with hyperextended MCPs and flexed PIP joints (i.e., claw-hand deformity), a dorsal MCP extension restriction splint can be fabricated in thermoplastic material to eliminate deformity and increase function (Fig. 13-26).

Figure 13-26 Anticlaw splint. A, Dorsal view. B, Palmar view.

Learned nonuse

Current research (see Chapter 10) has demonstrated the existence of a component of upper extremity dysfunction resulting from a learned phenomenon of nonintegration of the hand into functional tasks. This process likely begins in the early stages after stroke, before any functional recovery has commenced. Patients learn to compensate with their unaffected sides, thereby repressing any return of function on the hemiplegic side.

Many CVA protocols call for splinting immediately after stroke. Some facilities have standing orders for splinting in their acute services. Current research indicates that early splinting in the early poststroke phase may be detrimental. The splint gives a message that an outside device is responsible for the maintenance and improvement of the affected hand. Because the hand is supported and aligned through outside means, the patient does not attend to the hand, stretch the wrist and hand, or attempt to integrate it into functional tasks. Early splinting may predispose patients to a learned nonuse phenomenon. A sign that a patient is predisposed to learned nonuse is the observation that a patient, after cueing, can integrate functional return during a therapy session but does not integrate this new function outside the sessions. The therapist must balance interventions for contracture prevention with activities that encourage functional use of the hand, thereby negating the effects of learned nonuse. Splinting for contractures can be used at night instead of during the day to prevent learned nonuse behavior patterns.

Forearm support

If the splint prescribed for a patient includes a forearm trough, basic splinting principles call for the trough to cover two thirds of the forearm. To compensate for the weight of the hand and the excess force created by increased distal flexor activity, the forearm trough should be two thirds of the length of the forearm to provide a sufficient lever.

Palmar support

Many patients with neurological involvement have flattened arches at the MCP joints, with resultant clawing of the digits. This malalignment usually occurs in patients with little or no skeletal muscle activity in the affected hand. In molding the splint into the palmar arch in these cases, the therapist can use the thumb to mold a letter T pattern over the palmar surface of the splint. The base of the T runs longitudinally through the center of the palm, whereas the top of the T runs across the metacarpal heads. The base of the T should connect to the top of the T at the third MCP head. The T shape is molded into the palm to enhance the arch. To ensure sturdy arch support, the splint must progress distal to the distal palmar crease and does not need to clear the thenar eminence in a hand without movement. The therapist should reevaluate the patient frequently for returning motor control and should adjust the splint as needed. If the patient exhibits controlled digit flexion, the distal end of the splint needs to be rolled back proximal to the distal palmar crease so that returning function is not blocked. If the patient begins to exhibit thumb function, the palmar support surface of the splint must again be rolled back to clear the thenar eminence and therefore not block active movement.

After splint fabrication, the therapist evaluates the palmar support section of the splint by checking that the dual obliquity of the hand is maintained, the third metacarpal head is the apex of the arch formed by the metacarpal heads, and the hand is not “flattened” in the splint (Figs. 13-27 and 13-28).

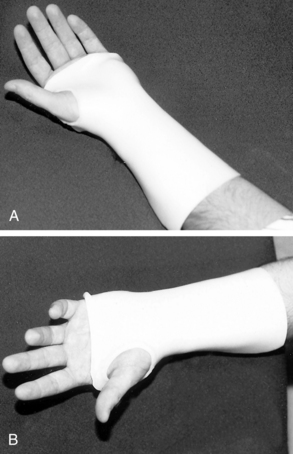

Figure 13-27 Variations on palmar support fabrication. A, Full palmar support (material progresses past the distal palmar crease and gives the thumb support over the first metacarpal). B, As function returns, the distal and thenar aspects of the splint are rolled back to allow for joint excursion during functional tasks. The T shape is molded into the palmar aspect of the splint.

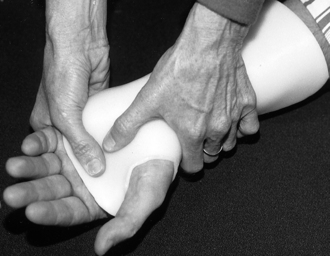

Figure 13-28 Molding the T support into the splint. The base of the T runs longitudinally through the palm, whereas the top of the T supports the metacarpal arch. The base of the T intersects the top of the T at the third metacarpal head. Palmar support is accurate if the arches of the hand are maintained, and the third metacarpal head is superior to the metacarpal heads of digits two and four.

Wrist support

When molding and evaluating the wrist component of a splint for the patient after stroke, the therapist must consider alignment:

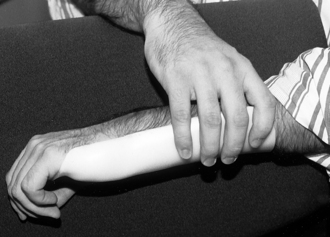

Figure 13-29 The lateral aspect of the splint is built up along the fifth metacarpal effectively to block ulnar deviation.

Digit support

The therapist should use a digit support platform only as a last resort. The therapist must include a digit support platform in the splint if the patient exhibits excessive flexor activity in the digits that cannot be otherwise controlled and if the patient is being splinted for contracture management. If the splint includes a digit platform, daytime use of the splint is discouraged.

If a patient exhibits excessive flexor activity, the therapist first should try a forearm and wrist splint that enhances alignment. In many patients, a proximal realignment of the joints and a prolonged state of accommodation of muscles to their resting length relaxes the hand. Therapists can evaluate this phenomenon by manually realigning the joints with their hands and evaluating whether a relaxation response occurs.

If a digit support platform is necessary, the digits should not be overstretched to the point that a “clawing” of the hand or a “bottoming out” of the metacarpals occurs. The therapist must ensure that the palmar arch remains intact when the digits are stretched onto the platform (Fig. 13-30).

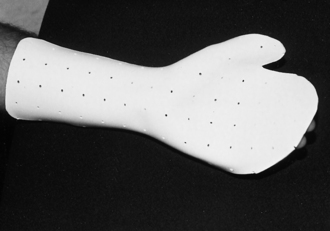

Figure 13-30 Full support provided to the distal extremity. This style of splint is recommended only if alternative attempts of proximal realignment do not relax the hand. This splint is recommended for night use only.

Thumb support

In the nonfunctional hand, the thumb should be supported in a position midway between palmar and radial abduction. This position can be maintained by the previously described palmar support, which also supports the first metacarpal; if the splint is rolled back to clear the thenar eminence, the thumb cannot be supported in this position (see Fig. 13-27).

If the thumb is functional, the splinted position is dictated by evaluation of the position of thumb that is the most effective at enhancing function with the thumb in opposition. Fig. 13-31 describes the clinical reasoning process followed for deciding on the type and style of splint to fabricate.

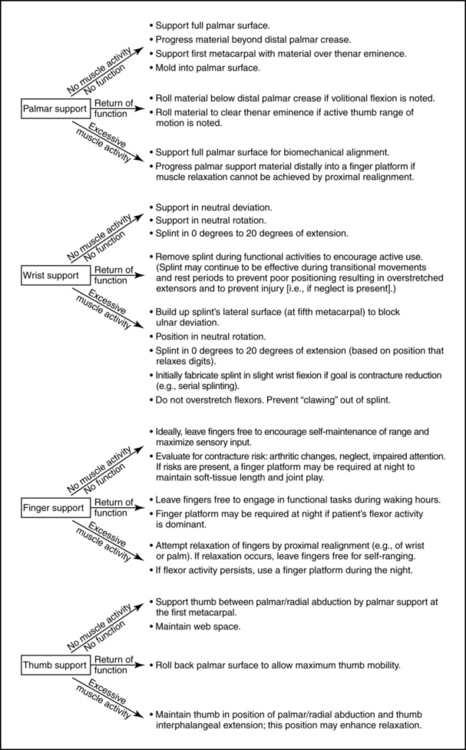

Figure 13-31 Fabrication decisions: clinical reasoning. A volar-based forearm trough that supports two thirds of the forearm with sides parallel to the radius and ulna serves as the base splint in this decision-making process.

Prefabricated splints

In cases in which prefabricated splints are indicated, therapists must take great care to ensure proper fitting. Patients should not be encouraged to purchase splints “off the shelf” without a therapist’s input because of the potential complications. Examples of commonly used and useful prefabricated splints include air-assist splints for LLPS (see Fig. 13-15), a Multi Podus ankle/foot orthosis (Fig. 13-32), and elbow splints to provide stretch (Fig. 13-33).

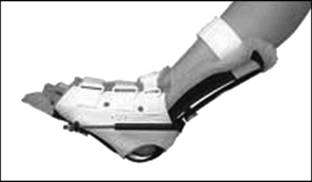

Figure 13-32 Multi Podus Phase II System (Restorative Care of America). This orthosis allows the ankle to be positioned incrementally towards neutral. The total range is from 40 degrees of plantar flexion to 10 degrees of dorsiflexion.

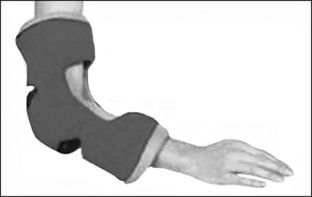

Figure 13-33 Arm-Respond Range of Motion Elbow Orthosis (Restorative Care of America). This orthosis allows the elbow to be positioned in 10-degree increments of flexion or extension.
