Hernias and other groin problems
Introduction
This chapter describes the clinical presentation and diagnosis of lumps and swellings in the groin along with specific conditions causing these problems. Other hernias of the anterior abdominal wall (ventral hernias) are considered at the end of the chapter.
Groin lumps and swellings account for about 10% of general surgical outpatient referrals. In both sexes, the most common lumps in the groin are hernias, mainly inguinal but also femoral. Both are caused by abdominal contents protruding through an abdominal wall defect. The normal testicular descent is from the abdomen to the scrotum via the inguinal canal, and this area remains vulnerable throughout life; inguinal hernias are much more common in males. If large, an inguinal hernia may present as a scrotal rather than a groin lump, but it is obvious that it arises in the groin. In the female, the uterine round ligament pursues a similar course; this explains inguinal hernias in females. The femoral canal, below the inguinal ligament, is another potential weakness and may give rise to a femoral hernia, particularly in women.
Enlarged lymph nodes due to infection or malignancy also cause groin lumps or swellings. Less common are vascular abnormalities such as a saphena varix or a femoral artery aneurysm. Very rarely nowadays, a psoas abscess may track down beneath the inguinal ligament to present in the groin. This used to be a common complication of spinal tuberculosis but is now more often a result of infection tracking down from a perforation in the left colon.
The anatomy of the groin provides a good starting point for understanding surgical problems in this area and is explained in Figure 32.1.

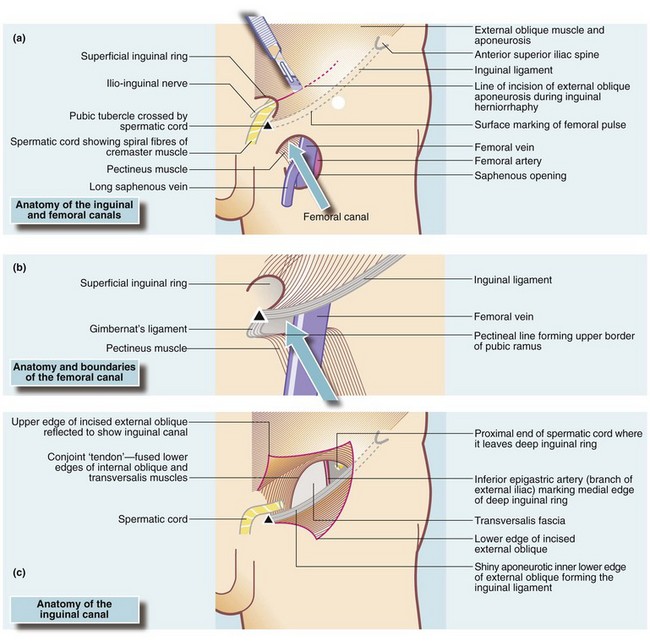

Fig. 32.1 Structure of the inguinal and femoral canals
(a) The entire groin area. The surface marking of the femoral pulse is shown, midway between the pubic symphysis and the anterior superior iliac spine; the deep ring lies 2.5 cm above it. (b) Structure of the femoral canal—the abdominal opening seen from below. (c) Structure of the inguinal canal. The inguinal canal displayed by incising the anterior wall (external oblique aponeurosis) as in the first stage of open repair; the spermatic cord has been removed for clarity
Lumps in the groin
Groin and scrotum must be examined to discover the anatomical origin of the swelling. Lumps in the groin are examined as lumps elsewhere but there are some special points to note:
• Examine the patient both standing and lying
• Examine for the presence of a cough impulse and test the reducibility of the lump
• Demonstrate the relationship of the origin of the lump to the inguinal ligament and the pubic tubercle
Position for examination
The patient must first be examined whilst standing, which increases intra-abdominal pressure, making any hernia more visible. Ask the patient to cough while palpating the lump: intra-abdominal pressure is thus transmitted through the abdominal wall and an expansile cough impulse is felt in a hernia. Small inguinal hernias may reduce on lying down, and a scrotal varicocoele (see Ch. 33) will empty.
Consistency and reducibility
Hernias are usually soft and ‘squishy’ but the most reliable diagnostic sign is if the lump reduces when the patient lies flat or can be reduced by gentle manipulation by patient or clinician. Most inguinal hernias are at least partly reducible, although longstanding hernias gradually become irreducible because of adhesions within the sac. These are said to be incarcerated, i.e. chronically irreducible. In contrast, femoral hernias are nearly always irreducible and have no cough impulse as the femoral canal is so narrow (see Table 32.1).
Table 32.1
Summary of groin lumps and swellings and their clinical features
| Disorder | Anatomical/developmental basis | Clinical features |
| a. Inguinal hernia Direct |
Simple bulging of abdominal contents resulting from inadequate support by weak or ruptured posterior wall of inguinal canal (transversalis fascia) | Discomfort; lump usually disappears on lying down; risk of incarceration if large but low risk of strangulation |
| Indirect | Passage of abdominal contents, often including bowel, through inguinal canal towards scrotum or labium majus | Potential for incarceration and strangulation; much more common in men |
| b. Femoral hernia | Abdominal contents, often including bowel, migrate into femoral canal | Rarely has a cough impulse; rarely reducible; high rate of strangulation; more common in women |
| c. Inguinal lymphadenopathy | Inguinal nodes drain lower limb, abdominal wall below umbilicus, anal canal, scrotal skin, penis (but not testes, which drain to para-aortic and para-iliac nodes) | Enlarged nodes indicate infection, lymphoma or metastases from primary lesion in drainage area |
| d. Saphena varix | Dilatation of long saphenous vein superficial to deep fascia before it enters the femoral vein | Can be mistaken for femoral hernia but empties on pressure and disappears on lying down, unlike femoral hernia; varicose veins present in the leg |
| e. Femoral artery aneurysm | Dilatation of common femoral artery just below inguinal ligament | Found in patients over 65 years, mostly male; classic clinical sign is expansile pulsation; could be mistaken for femoral hernia |
| f. Psoas abscess | Classically, a tuberculous abscess of lumbar vertebra tracking down inside sheath of psoas muscle; occasionally a pyogenic abscess originating within the abdomen presents via the same route | TB presents as swelling or ‘cold abscess’ below inguinal ligament; rare nowadays but may be confused with lymph nodes; pyogenic abscess typically ‘hot’; rarely may be due to abscess from renal stones |
A strangulated inguinal hernia can be readily diagnosed by finding an irreducible hernia in the correct anatomical position; the lump is tender and often red. Conversely, strangulated femoral hernias are usually very small and unimpressive, often no more than the size of a grape, yet have serious consequences. Strangulated hernias, particularly femoral hernias, sometimes present with abdominal pain or signs of obstruction but without localised pain in the groin. This emphasises the importance of examining the hernial orifices in every patient with an acute abdomen.
Enlarged inguinal lymph nodes vary in consistency, number and size depending on the pathological cause; they are of course not reducible. A saphena varix is very soft and disappears completely on palpation or if the patient lies down, refilling when pressure is released or if the patient stands. The leg on that side nearly always has obvious varicose veins. A saphena varix also exhibits a cough impulse. Femoral artery aneurysms, however, are firm but pulsatile. These vascular conditions must be diagnosed correctly as injudicious operation could be catastrophic!
Relationship to the inguinal ligament
The site of the lump in relation to the inguinal ligament needs to be identified. The ligament is not visible but stretches between two palpable bony prominences, the anterior superior iliac spine laterally and the pubic tubercle medially (see Fig. 32.1a). The pubic tubercle is higher than might be imagined from the skin contour, lying 2–3 cm above the groin crease. The iliac spine is easy to locate but the pubic tubercle can be difficult, especially in obese patients. It is best found by palpating along the upper border of the pubic symphysis, outwards from the midline (care is needed in the male as the spermatic cord can be tender where it crosses the pubic tubercle).
As shown in Figure 32.2, inguinal hernias always originate above the inguinal ligament, whereas femoral hernias, saphena varices and femoral artery aneurysms always arise below it. Enlarged inguinal lymph nodes are usually situated below the inguinal ligament.

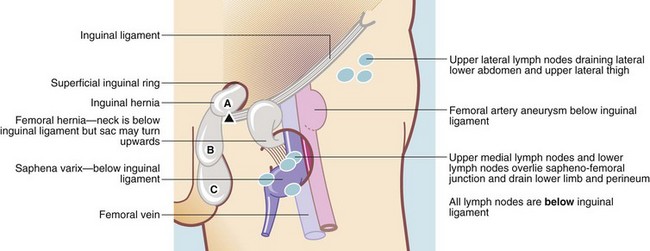

Fig. 32.2 Significance of the relationship of groin lumps to the inguinal ligament
A, B and C are stages in the enlargement of an indirect inguinal hernia. Note that the neck is above the inguinal ligament. A direct inguinal hernia enlarges forwards in position A, but occasionally extends into the scrotum
Direct and indirect inguinal hernias (Fig. 32.3)
Distinguishing between direct and indirect inguinal hernias may be clinically difficult but it is a useful exercise in eliciting clinical signs and frequently comes up in student examinations! By definition, an indirect inguinal hernia is one in which the hernial sac lies within the spermatic cord, leaving the abdomen via the deep (internal) inguinal ring to pass along the inguinal canal, exiting through the superficial (external) ring. Thus, if the hernia can be completely reduced, finger pressure over the deep ring will prevent it reappearing on coughing (the deep ring is midway between the pubic symphysis and the pubic tubercle, 2.5 cm above the femoral pulse; see Fig. 32.1a). In contrast, a direct inguinal hernia leaves the abdomen through a weakness or split in the transversalis fascia, the posterior wall of the inguinal canal, emerging directly through the superficial ring and cannot be controlled by digital pressure over the deep ring. In practice, this test is often unreliable. The patient's age is perhaps the most useful indicator of the likely type of inguinal hernia, with indirect hernias most frequent under the age of 50 and direct hernias more common after that age.

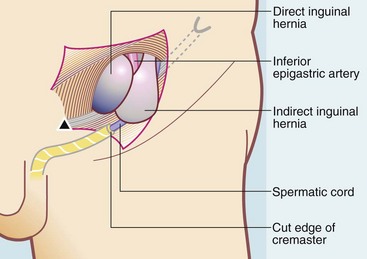

Fig. 32.3 Direct and indirect inguinal hernias
A direct inguinal hernia bulges medially to the inferior epigastric artery and is not usually attached to the spermatic cord. An indirect inguinal hernia leaves the deep inguinal ring lateral to the artery and lies within the cremaster muscle covering the cord
Inguinal and femoral hernias
Differentiating an inguinal from a femoral hernia may sometimes be problematic but is important as it will determine the surgical approach and the operation performed. The key is the position of the hernia in relation to the inguinal ligament. An inguinal hernia, emerging from the superficial ring, has its origin above the inguinal ligament, often descending over or medial to the pubic tubercle. A femoral hernia originates below the inguinal ligament and lies lateral to the pubic tubercle. Rarely it becomes large, and tends to be deflected upwards and may seem to arise above the inguinal ligament. This explains the importance of careful examination to determine the origin of the neck of any groin hernia.
Inguinal hernia
Inguinal hernia is one of the most common conditions seen in general surgical clinics. In a typical district general hospital, inguinal hernias account for about 7% of surgical outpatient consultations and about 12% of operating theatre time.
As shown in Figure 32.4, inguinal hernias in males are by far the most common type of groin hernia. Inguinal hernias occur eight times more often in males because of the abdominal wall deficiency caused by testicular descent. Femoral hernias are rare in males, comprising only 2.5% of groin hernias. Even in females, inguinal hernias are the most frequent (twice as common as femorals). Femoral hernias are twice as common in females as in males.

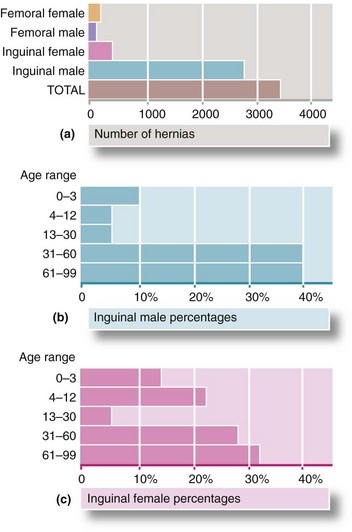

Fig. 32.4 Relative annual incidence of inguinal and femoral hernias in East Anglia (UK)
(a) Number of hernias by type and (b) Incidence of inguinal hernias in males by age. (c) Incidence of inguinal hernias in females by age
Inguinal hernias occur at any age. In childhood they always have a developmental origin and are common in premature infants. In males, hernias appear most often before the age of 5 or after middle age. A smaller peak occurs in the late teens and early twenties. Hernias in these young men probably result from a congenital predisposition, exacerbated by work or sport. Most inguinal hernias should be repaired early to reduce the long-term risk of strangulation and the need for emergency operation. The exception is small, easily reducible painless direct hernias in elderly men or those with substantial co-morbidity.
Anatomical considerations
The surgical anatomy of the inguinal canal is shown in Figure 32.1c. The external oblique aponeurosis (or fascia) forms the anterior wall of the inguinal canal. In the diagram, it has been split obliquely from the external ring along the line of its fibres for about 5 cm laterally and the cut edges reflected upwards and downwards to expose the inguinal canal. This is how it would appear after the first stage of an inguinal hernia repair operation.
The internal oblique and transversus abdominis muscles are deficient above the medial half of the inguinal ligament, with the D-shaped defect normally filled with the transversalis fascia. Transversalis is particularly strong here and forms the posterior wall of the inguinal canal, providing the only restraint to herniation of the abdominal contents. Arching over this, the inferior borders of the two muscles fuse to form the conjoint musculature and ‘tendon’ which extends from the lateral half of the inguinal ligament to the pubic crest.
The spermatic cord passes through the deep ring, a defect in the transversalis fascia at the most lateral part of the muscular defect. The inferior epigastric artery passes upwards from the external iliac immediately medial to it. Thus, the deep (internal) ring is bounded by the inguinal ligament below, conjoint musculature above and laterally, and the inferior epigastric artery medially. At operation, whether an inguinal hernia is direct or indirect is defined by its relationship to the inferior epigastric artery.
Mechanisms of inguinal hernia formation

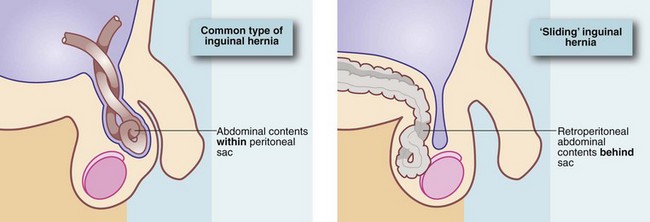

Inguinal herniation may be direct or indirect. In either case, the herniated abdominal contents are contained within a sac of peritoneum. In an indirect hernia, the peritoneal sac may represent a patent or reopened processus vaginalis and may extend as far as the tunica vaginalis and surround the testis.
Direct hernias tend to bulge forwards and rarely enter the scrotum. They are usually found in older patients with deficient muscles and weak transversalis fascia. The neck of a direct sac is broad, in contrast to the narrow neck of an indirect sac, confined as it is by the borders of the deep ring. Consequently, indirect inguinal hernias are more liable to strangulate. A direct hernia may occur suddenly after physical strain. In this case, the transversalis fascia has split, causing the appearance of a ‘rupture’.
An indirect and a direct hernia can occur together on the same side—a pantaloon hernia. A hernia may consist merely of peritoneum and associated extraperitoneal fat, but if larger, the sac usually contains omentum or small bowel, or less commonly large bowel or appendix. Occasionally, the contents of the sac are diseased, e.g. large bowel carcinoma, an inflamed appendix (acute appendicitis) or peritoneal tumour metastases. Sometimes a retroperitoneal viscus ‘slides’ down the posterior abdominal wall and herniates directly (occasionally indirectly) into the inguinal canal, dragging its overlying peritoneum with it. Thus, the visceral contents of a sliding hernia lie behind and outside the peritoneal sac (see Fig. 32.5). This most commonly occurs in the left groin involving the descending and sigmoid colon or in larger direct hernias, may involve the bladder.

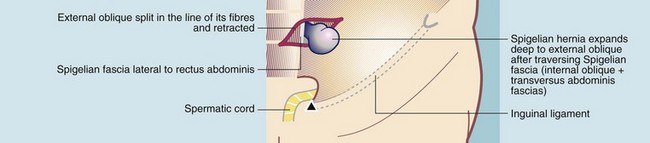

Spigelian hernia
Rarely, herniation occurs through a fascial defect in the linea semilunaris at the lateral border of rectus abdominis. The hernial sac comes to lie interstitially, i.e. between the layers of internal and external oblique or transversus abdominis. This is a Spigelian hernia. It has some clinical characteristics of an inguinal hernia but the bulge lies higher than an inguinal hernia and may be difficult to palpate because it is covered by one or more layers of the abdominal wall (see Fig. 32.6).
Natural history of inguinal hernia
Inguinal hernias usually develop slowly, although exacerbated by any condition which persistently raises intra-abdominal pressure, e.g. obesity, constipation, straining at micturition or chronic coughing; continued heavy lifting probably has a similar effect. In infants, a period of severe coughing or crying may precipitate an acute indirect hernia which may become irreducible.
A chronically irreducible hernia that is not strangulated is described as incarcerated. However, the term is often used inaccurately when a clinician is uncertain if an acutely irreducible hernia is strangulated. In patients presenting as emergencies, it is safer to assume such a hernia is strangulated until proved otherwise.
Hernial strangulation
Inguinal hernias that are difficult to reduce or which intermittently cause pain are at particular risk of strangulation. Strangulation occurs if the hernial contents become constricted by the neck of the sac or by twisting. Obstruction of venous return then leads to swelling and later to arterial obstruction. If strangulation is not relieved by manual or operative reduction, infarction follows. A strangulated inguinal hernia first becomes irreducible and then tender and later red. Symptoms and signs of bowel obstruction develop over the next few hours, followed by peritonitis if the bowel perforates (Fig. 32.7). Strangulation is a surgical emergency.
Case History
Fig. 32.7 Strangulated inguinal hernia
This 40-year-old man presented with symptoms and signs of distal small bowel obstruction evidently due to a strangulated inguinal hernia. At first, the abdomen, though distended and tympanitic, was not tender. However, during resuscitation, the abdomen became tender. This X-ray shows a clear outline of the outside of parts of the small bowel R, representing Rigler's sign. A false Rigler's sign is seen in other parts F; this is where two loops of thickened small bowel lie in contact
Management of inguinal hernias
Inguinal hernias in adults should ideally be repaired by herniorrhaphy, although there is evidence that small, reducible direct hernias in older men can safely be left alone.
Hernia operations are usually performed under general anaesthesia, although epidural or spinal or local anaesthesia may be used in patients with poor cardiovascular or respiratory function. Many surgeons favour an open repair under local anaesthesia for most cases; certainly if age or infirmity makes anaesthesia hazardous, this is a safe option.
Some hernias become intermittently irreducible, often with local pain and tenderness or even symptoms of bowel obstruction (vomiting, colicky abdominal pain, distension and absolute constipation). Such warning episodes are an indication for early operation. More severe and prolonged symptoms of this nature precipitate emergency admission to hospital, in which case strangulation must be assumed and operation performed urgently, preferably within 4 hours to maximise the chance of saving ischaemic bowel. In any patient with an obstructed or strangulated hernia, the first step is to ensure that the patient is fully resuscitated; more patients die of fluid and electrolyte problems than of delaying an operation by a few hours.
Very large ‘wheelbarrow’ hernias are invariably of long standing and are found mainly in elderly men (see Fig. 32.8). They only present when size becomes a handicap, if bowel strangulates within the hernia or if the anatomical distortion interferes with micturition. Bowel adhesions may make operation difficult and postoperative wound infections are common. If the hernia is not strangulated, a bag truss to support the hernia may be an appropriate treatment.
Case History
Fig. 32.8 Inguino-scrotal hernia
This man of 76 lived alone and only presented to a doctor when he had increasing difficulty controlling the direction of his micturition. His penis had disappeared altogether as the hernia had enlarged. The right testis is visible in the scrotum but the left side of the scrotum is filled with a large hernia. At operation, the abdominal wall defect was surprisingly small and was easily repaired by a standard method
Inguinal herniorrhaphy and herniotomy
Until recently, the standard open techniques of herniorrhaphy were mostly based on Bassini's 19th century extraperitoneal approach, which removed the peritoneal sac or reduced it into the abdomen and then employed non-absorbable sutures or mesh to repair the abdominal wall.
In 1989 Lichtenstein described his mesh implant technique which rapidly became the standard operation. This employs a ‘tension-free’ technique, using a patch of non-absorbable open-weave mesh to repair and reinforce the defect rather than pulling together muscle and fascial layers together under tension. Figure 32.9 shows the principles of the Lichtenstein type of inguinal hernia repair.
Fig. 32.9 Technique of mesh hernia repair
(a) Skin markings demonstrating the upper border of the pubic arch S, the anterior superior iliac spine A, the pubic tubercle P and the inguinal ligament I. Note the side of the planned operation has been marked with an arrow on the thigh to ensure the correct side is operated upon. The line of incision is shown as a solid line.
(b) The dissection down to the external oblique aponeurosis. The external (superficial) ring is arrowed.
(c) External oblique aponeurosis opened, demonstrating the shiny inguinal ligament, which is its inturned lower edge.
(d) The indirect hernia sac S dissected out from the spermatic cord and held upwards before ligation and excision. The inferior epigastric artery and vein lie at the medial border of the deep inguinal ring.
(e) Polypropylene mesh is cut to shape before insertion and sutured in place along the inguinal ligament and, in this case, tacked to the surface of the internal oblique with ‘starry sky’ sutures.
(f) External oblique closed to recreate the inguinal canal before skin closure
The mesh technique has several distinct advantages:
• The technique is easily learned and trainee surgeons can reliably produce good results
• Postoperative pain is substantially less, allowing increased mobility and early return to normal activities such as work and driving
Having a foreign body implanted might be expected to increase the risk of infection but in practice it is exceptionally rare. The mesh used does not have to be expensive—studies are being published of successful hernia repairs in developing countries using sterilised mosquito netting!
In infants, the patent processus vaginalis is merely ligated and excised (herniotomy); formal repair of the abdominal wall defect is usually unnecessary. If the defect is enormous, a single stitch should be used on the medial side to narrow the deep ring.
Complications of hernia repair: Early complications of herniorrhaphy include scrotal haematoma or wound infection. Most surgeons employ prophylactic antibiotics for mesh repairs but there is little evidence of benefit. Late complications include recurrence (see below), chronic groin pain due to inadvertent trapping of the ilio-inguinal or another nerve in the repair, and testicular atrophy caused by inadvertent damage to the testicular artery, usually with diathermy, or over-tightening of the deep ring.
Recurrence: Inguinal hernias recur in 2–25% of cases over a lifetime. The rate is greatly increased when inadequate attention has been given to operative principles.
The causes of inguinal hernia recurrence include:
• Inappropriate technique—Bassini type repairs have a 25% recurrence rate
• Operator inexperience—Shouldice and laparoscopic repairs have a long learning curve
• Technical failure—failure to recognise and remove an indirect sac at operation; insufficient coverage of the defect; suture or mesh failure
• Missed diagnosis of a concomitant femoral hernia
• Inherently poor musculature, chronic cough, urinary obstruction, constipation or resumption of heavy work too soon after repair
• Underlying physiological problems that impair healing such as poorly controlled diabetes or smoking—smokers have twice the recurrence rates of non-smokers. It is important to screen for problems of this type and address them before hernia surgery
Laparoscopic inguinal hernia repair (described in Ch. 10)
Laparoscopic repair of inguinal hernias by a transperitoneal or retroperitoneal route is now the standard operation for hernia repair in many centres. It offers less postoperative pain and a slightly quicker return to normal activities but has a slightly higher risk of major complications compared to open techniques for primary hernia repair. The method is particularly recommended for repair of recurrent hernias, having the advantage of allowing the mesh to be placed in virgin territory, and also for bilateral repair, when both sides can be repaired through the same three small incisions. There is a long learning curve for laparoscopic repair and the recurrence rate may be slightly higher than the Lichtenstein technique.
Postoperative care and return to normal activities
Most inguinal hernias are now repaired on a day case basis although some patients with significant co-morbidities may need to stay in hospital overnight.
During the first postoperative week, patients should avoid activities likely to strain the repair, such as heavy lifting or driving a car. Over the next 2 or 3 weeks, they should gradually return to normal activity, including usual sexual activity. Time to return to work depends on the physical nature of the job and whether activities cause pain, but usually varies from 2 to 4 weeks.
Trusses
A truss made of padded webbing may control certain types of hernia when surgery is inappropriate or unacceptable to the patient. They can safely be used only if the hernia is easily reducible and can be kept reduced and free of symptoms. For very large irreducible hernias, a ‘bag truss’ can support the hernia. Most trusses are ill-fitting and ineffective and are better avoided if possible. There is some evidence that trusses increase fibrosis and inflammation and may make repair more difficult—early repair is the best option if practicable.
Femoral hernia
A femoral hernia is formed by a protrusion of peritoneum into the potential space of the femoral canal. The sac may contain abdominal viscera (usually small bowel) or omentum. Around 40% of femoral hernias present with strangulation. The incidence is higher in women and increases with age (Figs 32.4 and 32.10). Increased intra-abdominal pressure and other factors related to pregnancy may be important in females since the incidence of femoral hernia is higher in parous than nulliparous women.
Clinical features of femoral hernia

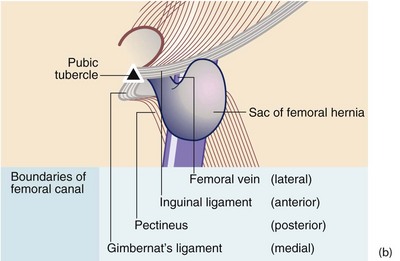

The anatomy of the femoral canal is shown in Figure 32.1b, page 409. A femoral hernia is usually small, appearing as a lump immediately below the inguinal ligament and just lateral to its medial attachment to the pubic tubercle. Since the femoral canal is narrow, a cough impulse can rarely be detected, and the hernia is usually irreducible. Thus, small femoral hernias may be difficult to distinguish from other lumps arising in the femoral canal such as a lipoma or enlarged Cloquet's lymph node. However, a hernia is deeply fixed whereas the others tend to be more mobile.
Strangulated femoral hernia
In contrast to strangulated inguinal hernia, there are often no obvious localising symptoms and signs in strangulated femoral hernia, and the classic presenting features are those of distal small bowel obstruction. The diagnosis of strangulated femoral hernia is easily missed unless the femoral region is carefully and expertly examined for a lump.
In nearly 30% of strangulated femoral hernias, only a portion of the bowel circumference is trapped in the hernial sac. Although the bowel lumen remains patent and the patient continues to pass flatus, peristalsis is sufficiently disrupted for other signs of obstruction to occur, notably vomiting. This is known as Richter's hernia (see Fig. 32.11). Resuscitation and urgent operation are required as for completely strangulated hernias.
Case History
Fig. 32.11 Richter's hernia
This 71-year-old woman presented with symptoms and signs of incomplete small bowel obstruction; these included vomiting, abdominal distension and colicky abdominal pain, but she continued to pass flatus. She had a 2 cm femoral hernia which was not tender. At operation, only a part of the wall of the ileum was trapped in the hernia. The photograph shows bruising around the area trapped in the hernia. Luckily, the bowel was viable and did not need resection. The hernia was repaired before closure
Management of femoral hernia
The abdominal orifice of the femoral canal is small and indistensible so abdominal contents finding their way into the canal strangulate much more readily than in inguinal hernias. Thus, all femoral hernias, even if asymptomatic, should be repaired without delay.
Elective repair is performed by first isolating, emptying and excising the peritoneal sac (see Fig. 32.12). The femoral canal is then closed with non-absorbable sutures or a plug placed between pectineus fascia and inguinal ligament. The canal can be exposed by several different methods. The most common are a) the femoral or low approach, b) the Lotheissen or high approach, via the posterior wall of the inguinal canal, and c) the McEvedy or pararectus extraperitoneal approach. The last is virtually a laparotomy and is rarely employed. Occasionally a femoral hernia containing bowel cannot be safely reduced via a local approach, or bowel of doubtful viability escapes back into the abdominal cavity. In either case, a laparotomy incision is required to safely complete the operation.
Enlarged inguinal lymph nodes
The lymph nodes of the inguinal region are clustered into the three anatomical groups shown in Figure 32.13. These drain the lower abdominal wall and lower back, perineum (including vulva and vagina), anal canal, penis and scrotal skin and the whole lower limb. The testes are derived from the retroperitoneal area and hence drain to the upper para-aortic nodes within the abdomen rather than inguinal nodes.

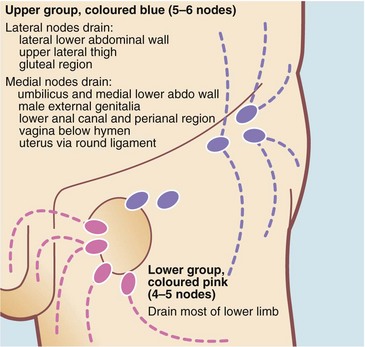

Fig. 32.13 Superficial inguinal lymph nodes of the groin
The lower group lie around the termination of the long saphenous vein. Both upper and lower groups drain to the external iliac nodes
Inguinal lymph nodes may become secondarily enlarged as a result of local disease in their field of drainage. Examples include infections of the foot, skin diseases, sexually transmitted infection or tumours. Inguinal node enlargement may also be part of a generalised lymphadenopathy in lymphoma or a systemic infection such as glandular fever or AIDS. Inguinal nodes may also become involved in tuberculosis. Multiple small firm (‘shotty’) nodes are commonly found and are accepted as normal if less than 1 cm in diameter. These nodes probably result from minor infections of the lower limb.
Clinical features of enlarged inguinal lymph nodes
Enlarged inguinal lymph nodes present with pain or a lump in the groin but are often discovered incidentally. Enlarged lymph nodes are recognised by their anatomical position and by excluding hernias or vascular abnormalities. Enlarged nodes are usually mobile but become fixed to the surrounding tissues when infiltrated by tumour. If doubt exists as to whether nodes are enlarged, ultrasound scanning usually gives a definitive answer and can guide percutaneous needle biopsy. In general, nodes smaller than 1 cm are unlikely to be malignant.
The history may need to be reviewed for clues as to the origin of any nodes. A history of systemic manifestations of lymphoma, TB or acquired immunodeficiency syndrome (AIDS) should be sought. These include malaise, periodic fevers and weight loss. There may be a history of a ‘mole’ or ‘wart’ having been removed, even many years before. If this was a malignant melanoma or squamous carcinoma, it could now have metastasised. Other symptoms of tumours that metastasise to inguinal lymph nodes should be sought; for example, anal pain or bleeding might indicate an anal carcinoma, and an unretractable foreskin may hide a penile carcinoma.
Examination should include palpating lymph nodes in the neck and axillae, and palpating the liver and spleen. The skin of the whole drainage field should be examined closely, paying particular attention to the back, perineum and feet, including between the toes and beneath the toenails, and beneath the foreskin. The examination may reveal infection, squamous cell carcinoma or malignant melanoma. Rectal examination is mandatory to exclude anal carcinoma. A blood test for human immunodeficiency virus (HIV) may be indicated.
If enlarged lymph nodes cannot be explained by simple local factors or a systemic illness, nodes should be sampled for histology. If metastatic malignancy is suspected, fine needle aspiration or needle core biopsy is appropriate, but if lymphoma is likely, a node should be surgically removed or be subject to an open biopsy to obtain substantial tissue for histological typing.

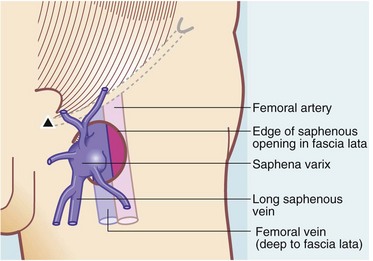

Saphena varix
A saphena varix is a dilatation of the long saphenous vein in the groin, just proximal to its junction with the femoral vein (see Fig. 32.14). The varix is caused by valvular incompetence at this point; there are usually substantial varicose veins elsewhere in the long saphenous system.
The varix can reach the size of a golf ball or even larger. On examination, the swelling is soft and diffuse. The diagnostic feature is that it empties with minimal pressure and refills on release (‘the sign of emptying’). A cough impulse is invariably present and a fluid thrill can be felt if varicosities further down the thigh are tapped lightly. Treatment is high saphenous ligation, as for sapheno-femoral reflux associated with varicose veins (see Ch. 43).

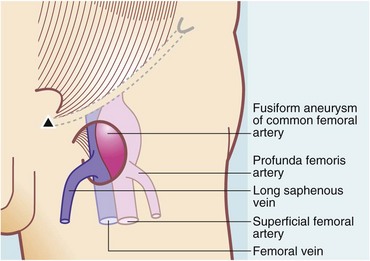

Femoral artery aneurysm
Femoral aneurysms are uncommon as a cause of lumps in the groin. They may occur as part of a generalised aneurysmal disease involving the abdominal aorta, iliac and lower limb arterial system but can also occur in isolation. Diagnosis is made on clinical examination; the lump lies below the midpoint of the inguinal ligament (see Fig. 32.15) and has a characteristic expansile pulsation. Distinguishing an aneurysm from a femoral hernia is clearly vitally important. The management of aneurysms is discussed in Chapter 42.
Chronic groin pain
Chronic groin pain without any clues in the history and without swelling is difficult to diagnose and treat. Groin pain may be caused by inflamed inguinal lymph nodes secondary to infection in their field of drainage. Strained muscle attachments to the bony pelvis sometimes cause groin pain; this particularly affects the hip adductor attachments near the pubic tubercle and usually follows extreme physical activity. Groin pain may also be referred from a diseased hip joint. ‘Groin strain’ is a difficult entity to understand and often affects professional sports people. It starts acutely but often becomes chronic; the diagnosis is one of exclusion. A newly appeared inguinal hernia may cause groin pain, often on sitting, yet be too small to detect clinically. Unfortunately, there is no dependable test for an early hernia other than laparoscopy, although ultrasound in experienced hands is fairly reliable.
Ventral hernias
Ventral hernias include epigastric, umbilical and paraumbilical hernias. Ventral incisional hernias occurring through previous surgical or traumatic wounds are considered in Chapter 12.
Epigastric hernias (see Fig. 32.16)
Case History
Fig. 32.16 Epigastric hernia
This man of 28 had an unusually large epigastric hernia that caused pain on exercise. It was situated in the midline, midway between the xiphisternum and the umbilicus.
(a) ‘Mushroom-like’ epigastric hernia mass protruding through the linea alba (fibres indicated by arrow)
(b) Relatively small defect in linea alba after mobilising and reducing the hernia
(c) After edge-to-edge repair of defect using continuous non-absorbable nylon suture
These are midline herniations through defects in the linea alba, anywhere between xiphoid process and umbilicus. They are four times more common in males and are often tiny, with a defect less than 0.5 cm. Most are symptomless and the presence of a lump and sometimes episodic sharp pain on exertion are the usual presenting complaints. Treatment is by direct suture repair if the hernial defect is smaller than 1 cm. Larger hernias may require a tension-free mesh repair.
Umbilical and paraumbilical hernias
Umbilical hernias in children are discussed in Chapter 51. Paraumbilical hernias are acquired rather than congenital. They occur in all age groups but are five times more common in females. The abdominal wall defect is in the linea alba, generally above or below the umbilical cicatrix. The swelling lies adjacent to the umbilicus, with the umbilicus itself pushed to the side to produce the characteristic ‘smile’ of a paraumbilical hernia.
True umbilical hernias are the third most common abdominal hernia in adults and appear directly through the umbilical cicatrix. They also occur more commonly in females, and obesity and poor muscle tone are predisposing factors. Hernias range from asymptomatic small protrusions, through larger and occasionally painful lumps, to very large, irreducible and intermittently painful swellings. Both paraumbilical and umbilical hernias become progressively larger and surgical repair is the treatment of choice. This is by direct suture for the smallest defects or the use of mesh for larger defects.
