Disorders of Hyperpigmentation

Definitions

• Hyperpigmentation: a term used to describe disorders characterized by darkening of the skin; encompasses hypermelanosis.

• Hypermelanosis: a more specific term that denotes an increase in the melanin content of the skin; typically due to an increase in melanin production but occasionally from an increase in the density of active melanocytes.

• Discoloration: a term used to describe an abnormal color of the skin; may be due to deposition of substances such as drugs, drug complexes (e.g. with melanin or iron), or heavy metals within the dermis.

• Dyschromatosis: a disorder characterized by the presence of both hypo- and hyperpigmentation.

• Pigment incontinence: the presence of melanin within dermal macrophages (melanophages); the source of the melanin is the epidermis, and this typically results from inflammation at the dermal–epidermal junction.

• Epidermal pigmentation: denotes increased melanin within the epidermis, which typically leads to a light brown to dark brown color.

• Dermal pigmentation: denotes increased melanin in the dermis, primarily within melanophages; characteristically presents as a gray-blue to gray-brown color.

Approach to Disorders of Hyperpigmentation

• Disorders of hyperpigmentation usually result from an increase in melanin production and occasionally from an increase in the density of active melanocytes.

• The clinical approach to these disorders is simplified by dividing them into four patterns, namely circumscribed, diffuse, linear, and reticulated (Fig. 55.1).

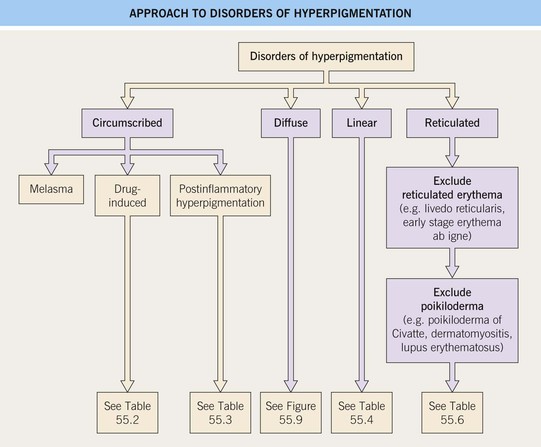

Fig. 55.1 Approach to disorders of hyperpigmentation.

• The most common clinical pattern is circumscribed; observation of the sites of involvement, shape, configuration, and size can provide clues to the diagnosis.

• The dyschromatoses are discussed separately.

Circumscribed Hyperpigmentation

• The three major entities in this category are melasma, postinflammatory hyperpigmentation, and drug-induced hyperpigmentation.

Melasma

• A very common, acquired disorder characterized by symmetric, hyperpigmented patches with irregular borders, resulting from an increase in epidermal and/or dermal melanin; favors the face (see below) > mid-upper chest and extensor forearms.

• Seen primarily in women; increased prevalence in individuals with skin phototypes III–IV.

• Pathogenesis thought to be related to hyperfunctional melanocytes that are stimulated by exacerbating factors, such as sun exposure and hormones (e.g. pregnancy, oral contraceptives).

• Three classic clinical patterns based on distribution: centrofacial (most common), malar, and mandibular (Fig. 55.2).

Fig. 55.2 Various forms of melasma and melasma-like hyperpigmentation. A Malar variant. B Mild centrofacial type with sparing of the philtrum. C Extension of the hyperpigmentation onto the mandible. D Involvement of the extensor forearm; note the same irregular outline as seen on the face. E Melasma-like appearance in a patient with previous acute cutaneous lupus erythematosus. C–E, Courtesy, Jean L. Bolognia, MD.

• Classically, melasma was also classified based on findings from Wood's lamp examination: lesions that enhance imply an increase in epidermal melanin and lesions that do not enhance imply an increase in dermal melanin; however, mixed epidermal and dermal melasma patterns are common.

• In northern latitudes, lesions tend to fade during the winter months; melasma tends to be more persistent in darkly pigmented individuals.

• DDx: postinflammatory hyperpigmentation, drug-induced (e.g. minocycline, amiodarone), acquired bilateral nevus of Ota-like macules (especially in Asian women), actinic lichen planus, pigmented contact dermatitis, exogenous ochronosis due to the application of hydroquinone-containing bleaching agents, erythromelanosis faciei.

• These other disorders are distinguished from melasma based on historical aspects (e.g. drug ingestion, application of topical medications or cosmetics, previous inflammation), color (e.g. clusters of nevus of Ota-like macules are typically blue-gray in color), distribution pattern, histologic features, and primary lesions, if present.

• Treatment options are outlined in Table 55.1; typically epidermal hyperpigmentation responds best to treatment.

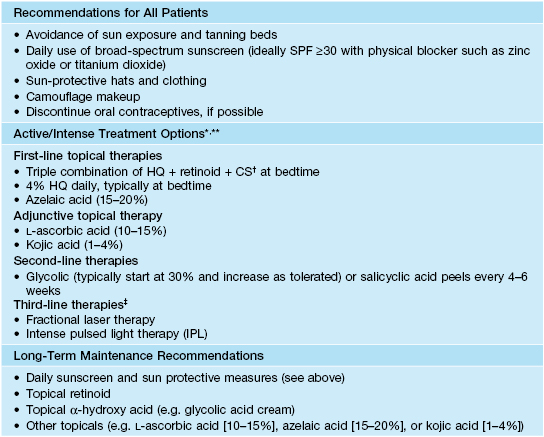

Table 55.1

Suggested treatment options for melasma.

^* Results from topical treatments may take up to 6 months to appreciate; depending on the patient, HQ and combination HQ + retinoid + CS are typically used daily for 2–4 months and then decreased in frequency to 1–2 times per week; prolonged daily use can result in side effects such as perioral dermatitis, telangiectasias, and atrophy (CS) and ochronosis (HQ).

^** While topical HQ can cause an allergic contact dermatitis, all topical agents may cause an irritant contact dermatitis, which can result in worsening of the dyspigmentation; if this is a concern, a small, nonfacial site test can be performed prior to widespread facial application.

^† Typically a Class 5–7 topical CS is used (see Appendix).

^‡ Potential risk of post-procedural dyspigmentation; a site test should be performed prior to widespread facial laser or light therapy.

HQ, hydroquinone.

Drug-Induced Circumscribed Hyperpigmentation and Discoloration

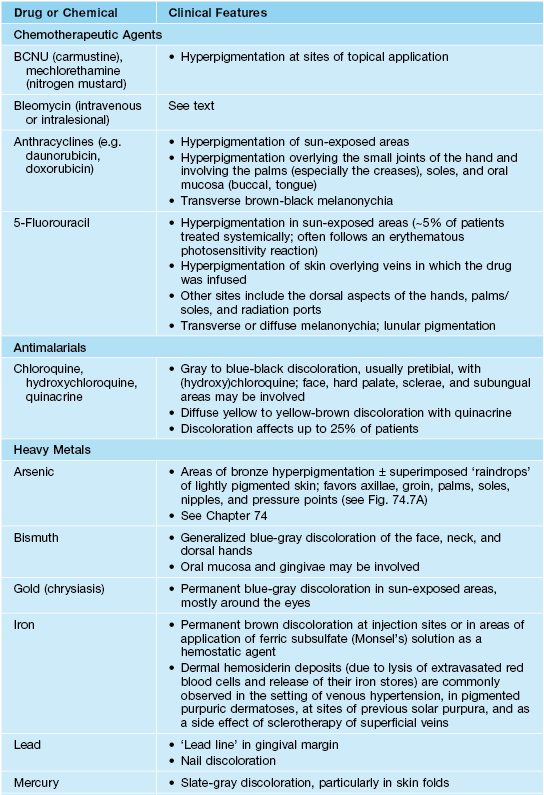

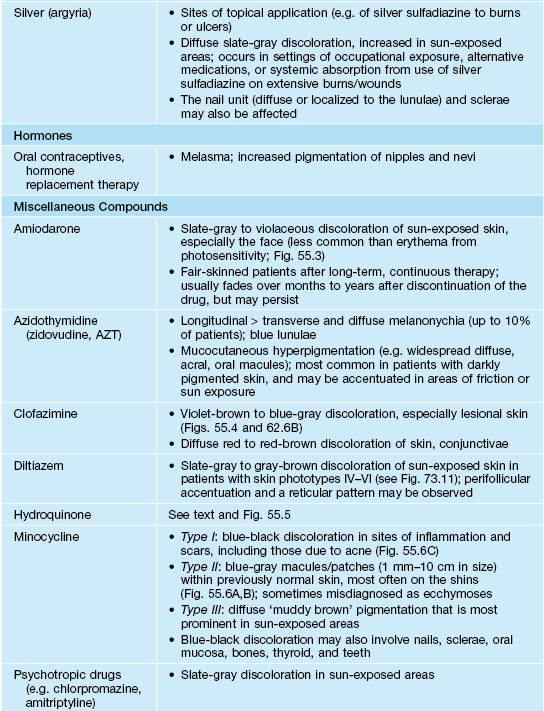

• A wide range of medications and chemicals can cause hyperpigmentation or discoloration in circumscribed, diffuse, and even linear patterns; longitudinal or horizontal melanonychia may also be present.

• The most common culprits of drug-induced circumscribed hyperpigmentation and discoloration are minocycline and the antimalarials (Table 55.2; Figs. 55.3–55.6).

Fig. 55.3 Gray-violet discoloration of the face due to amiodarone. Note the sparing of the lower eyelid. Courtesy, Jean L. Bolognia, MD.

Fig. 55.4 Blue-violet discoloration of previous leprosy lesions in a patient treated with clofazimine. Courtesy, Anne Burdick, MD.

Fig. 55.5 Exogenous ochronosis secondary to topical hydroquinone. This cause of progressive darkening is seen more commonly in Africa. Courtesy, Regional Dermatology Training Centre, Moshi, Tanzania.

Fig. 55.6 Minocycline-induced discoloration. A The distribution on the shins and the gray-blue color can be similar to that seen with antimalarials. B Sometimes the discoloration is misdiagnosed as ecchymoses, but the subsequent color changes of green and yellow do not occur. C Blue-black pigmentation within acne scars and inflammatory papules. A, Courtesy, Mary Wu Chang, MD; C, Courtesy, Richard Antaya, MD.

• The pathogenesis involves varying mechanisms, from increased melanin production to deposition of drug complexes or heavy metals within the dermis.

• The hyperpigmentation or discoloration typically resolves upon discontinuation of the offending drug, but the course may be prolonged.

Postinflammatory Hyperpigmentation

• Represents an acquired excess of melanin pigment following cutaneous inflammation (e.g. acne, psoriasis) or injury (e.g. burns or friction).

• Depending on the disorder, postinflammatory hypopigmentation may also occur and is discussed in Chapter 54.

• Can occur anywhere on the body, including the mucosae or nail unit; increased pigmentation is localized to areas of inflammation and becomes more apparent once the associated erythema resolves (likened to ‘a shadow left behind’).

• The preceding inflammation may be obvious, transient, or subclinical (Table 55.3; Fig. 55.7).

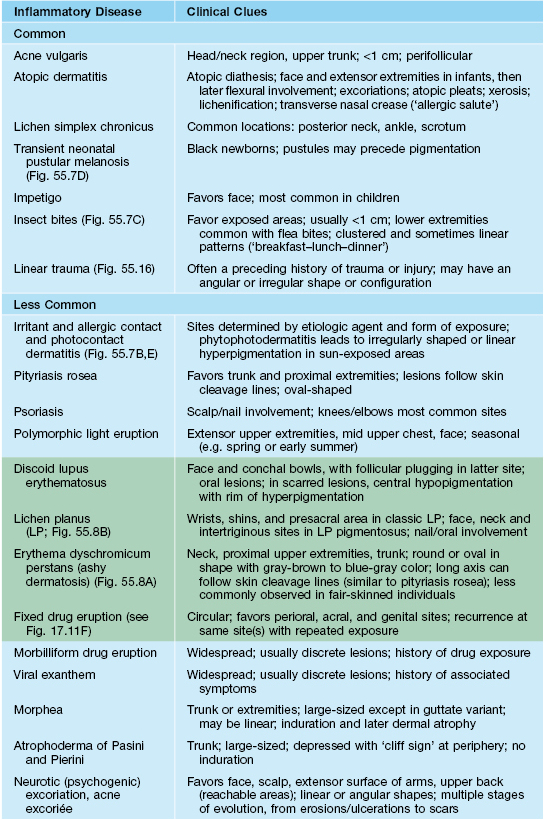

Table 55.3

Disorders associated with postinflammatory hyperpigmentation.

Disorders with a green background are characterized by inflammation at the dermal–epidermal junction. Such inflammation can lead to dermal melanin within melanophages (pigment incontinence), which can be resistant to treatment and take longer to resolve. Most disorders result in epidermal hyperpigmentation and eventually resolve if the underlying disorder is treated effectively.

Adapted from Bolognia JL. Disorders of hypopigmentation and hyperpigmentation. In: Harper J, Oranje A, Prose N (Eds.), Textbook of Pediatric Dermatology, 2nd edn. Oxford: Blackwell Science, 2006;997–1040.

Fig. 55.7 Epidermal postinflammatory hyperpigmentation. The lesions were due to pemphigus foliaceus (A), contact dermatitis from a contraceptive patch (B), insect bites (C), and transient neonatal pustular melanosis (D). Note the residual inflammation and ‘breakfast–lunch–dinner’ configuration in (C). E Linear epidermal postinflammatory hyperpigmentation due to phytophotodermatitis, which requires contact with a plant (e.g. lime) containing a photosensitizing chemical followed by UVR exposure. The desquamation is at the site of a previous bulla. A, C, D, Courtesy, Julie V. Schaffer, MD; B, Courtesy, Andrew Alexis, MD, MPH.

• The hyperpigmented macules and patches can range in color from light brown to dark brown (epidermal melanin) or gray-blue to gray-brown (dermal melanin).

• In general, postinflammatory epidermal pigmentation eventually resolves as long as the underlying disorder is treated effectively, but this may take months or even years; postinflammatory dermal pigmentation can be persistent.

• May also be exacerbated by UVR exposure, and photoprotection is an important part of treatment.

• DDx: see Table 55.3; occasionally a skin biopsy will assist in establishing the diagnosis.

• Causes of postinflammatory hyperpigmentation that often present without obvious prior inflammation.

– Primary (localized) cutaneous amyloidosis (see Chapter 39 and Figs. 39.6 and 39.7).

– Erythema dyschromicum perstans (EDP or ashy dermatosis) (see Chapter 9 and Figs. 9.9 and 55.8A).

Fig. 55.8 Dermal postinflammatory hyperpigmentation. A Erythema dyschromicum perstans (EDP or ashy dermatosis). Multiple gray-brown macules and patches on the abdomen. The ‘ashy’ color is characteristic. B Lichen planus pigmentosus. Multiple coalescing brown to gray-brown macules in the axilla of a middle-aged woman.

– Lichen planus pigmentosus (LPP) (see Chapter 9, Table 9.1, and Figs. 9.4G and 55.8B).

– Mastocytosis (see Chapter 96 and Fig. 96.4).

– Tinea (pityriasis) versicolor (see Chapters 54 and 64 and Fig. 64.1).

– Atrophoderma of Pasini and Pierini (see Chapter 36).

• There is some debate as to whether this represents a distinct entity or is an end-stage (i.e. ‘burned-out’ stage) of morphea.

• Typically seen in young healthy adults as several 3- to 6-cm, oval, hyperpigmented, minimally depressed patches on the posterior trunk.

• Lacks an inflammatory phase.

• Rx: In addition to treating the underlying inflammatory disorder and photoprotection, the following topical agents may be used: hydroquinone 2–4%; a combination of hydroquinone, tretinoin, and a low-strength CS; azelaic acid 15%; α-hydroxy acids (e.g. glycolic acid).

Diffuse Hyperpigmentation

• Diffuse hyperpigmentation has multiple causes, including drug-induced, metabolic and endocrine abnormalities, nutritional deficiencies, exposure to heavy metals, and inherited syndromes.

• May be accentuated in sun-exposed sites.

• An approach to the patient with diffuse hyperpigmentation is presented in Fig. 55.9.

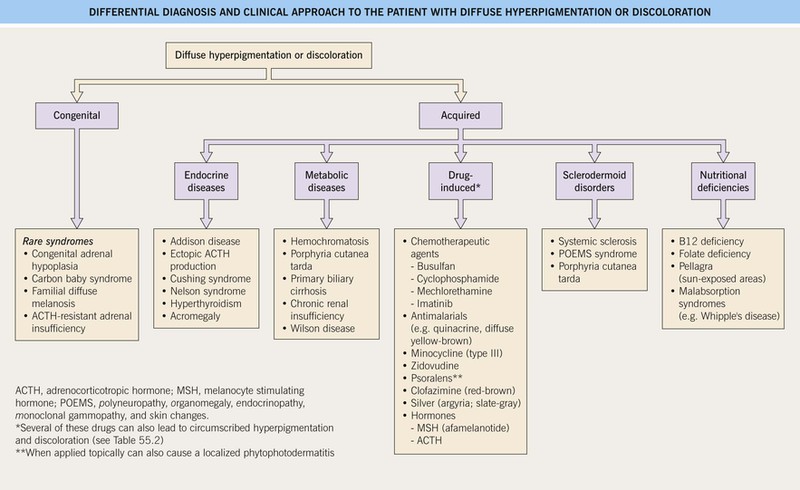

Fig. 55.9 Differential diagnosis and clinical approach to the patient with diffuse hyperpigmentation or discoloration.

Linear Hyperpigmentation

• Linear hyperpigmentation, like linear hypopigmentation (see Chapter 54), can result from multiple etiologies; one of the initial steps is determining if the lesions do or do not follow Blaschko's lines (see Chapter 51).

• The differential diagnosis of linear hyperpigmentation is presented in Table 55.4 (Figs. 55.10–55.16).

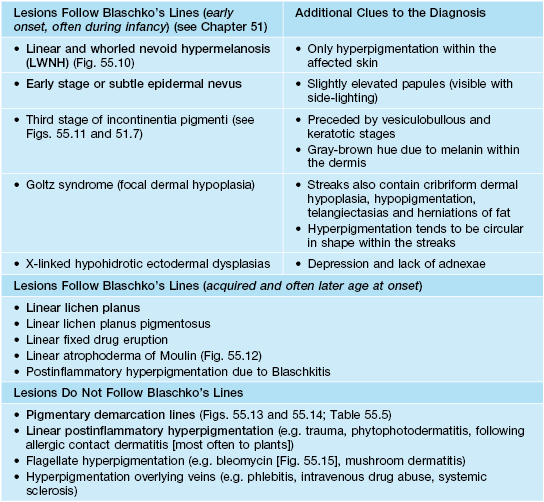

Table 55.4

Disorders with linear lesions of hyperpigmentation.

Fig. 55.10 Linear and whorled nevoid hypermelanosis (LWNH) on the trunk. This young African-American girl had developmental delay. Note the distribution along the lines of Blaschko. Courtesy, Julie V. Schaffer, MD.

Fig. 55.11 Stage 3 incontinentia pigmenti in a 2-year-old child. Note the characteristic gray-brown color, and the distribution along the lines of Blaschko. Courtesy, Julie V. Schaffer, MD.

Fig. 55.12 Linear hyperpigmentation due to atrophoderma of Moulin. Note the subtle depression of the lesions on the upper lateral thigh. Courtesy, Jean L. Bolognia, MD.

Fig. 55.13 Pigmentary demarcation lines (PDLs). A The most common PDL (Type A) is on the upper arm, with relative hypopigmentation on the ventral surface. B Type B PDLs on the posterior thighs, with relative hypopigmentation medially. C Type C PDL (composed of parallel lines) may be confused with hypopigmentation along Blaschko’s lines. A, C, Courtesy, Jean L. Bolognia, MD; B, Courtesy, Justin Finch, MD.

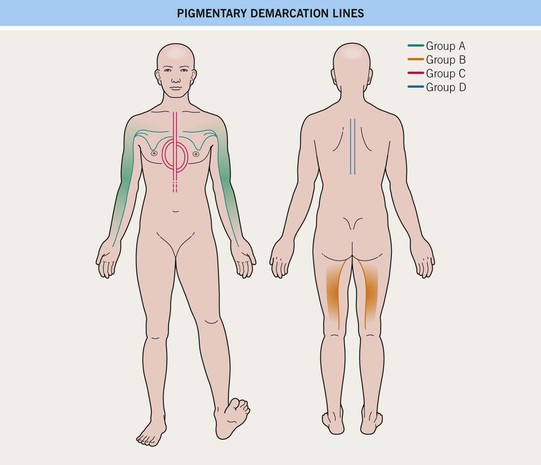

Fig. 55.14 Pigmentary demarcation lines.

Fig. 55.15 Flagellate pigmentation. This young man had received bleomycin as a treatment for his lymphoma. Note the linear excoriations. Courtesy, David E. Cohen, MD, MPH.

Fig. 55.16 Dermatitis artefacta resulting in linear postinflammatory hyperpigmentation of the forehead. The lesions were due to excoriations. Courtesy, Mary Wu Chang, MD.

Hyperpigmentation Along Blaschko's Lines and in Other Mosaic Patterns

• Hyperpigmentation can follow the lines of Blaschko or have other mosaic patterns (e.g. block-like [see Chapter 51]).

• Hyperpigmented streaks along Blaschko's lines has been termed ‘linear and whorled nevoid hypermelanosis’ (LWNH) or linear nevoid hyperpigmentation, and they reflect pigmentary mosaicism (Fig. 55.10).

• In a minority of patients, LWNH is associated with systemic abnormalities (e.g. CNS, musculoskeletal, or ocular); hyperpigmented streaks usually appear in infancy.

• Patients presenting with hypo- or hyperpigmented streaks along Blaschko's lines can be approached in a similar fashion, with a physical examination and further evaluation (e.g. genetic) directed by clinical findings.

• Hyperpigmentation can also occur in a block-like configuration, also referred to as segmental pigmentation disorder; the DDx includes Becker's nevus and segmental CALM, either isolated or syndromic (e.g. McCune–Albright syndrome [see Table 50.3]); in the latter, the CALM may be more geographic in configuration.

Linear Hyperpigmentation that is Not Along Blaschko's Lines

• Pigmentary demarcation lines.

– In humans, the dorsal skin surfaces are relatively hyperpigmented compared to the ventral surfaces.

– In patients with darker pigmentation, visible lines of demarcation between dorsal and ventral surfaces are more apparent.

– These demarcation lines are present from infancy and persist throughout life; they are most prevalent on the anterolateral upper arm and posteromedial thigh (Fig. 55.13).

– Several forms of pigmentary demarcation lines exist and are presented in Table 55.5 and Fig. 55.14.

Table 55.5

Five major forms of pigmentary demarcation lines.

Type	Description
A	A vertical line along the anterolateral portion of the upper arm that may extend into the pectoral region (most commonly observed type)
B	A curved line on the posteromedial thigh that extends from the perineum to the popliteal fossa and occasionally to the ankle
C	A vertical or curved hypopigmented band on the mid chest that results from two parallel pigmentary demarcation lines
D	A vertical line in a pre- or paraspinal location
E	Bilateral chest markings (hypopigmented macules and patches) in a zone that runs from the mid third of the clavicle to the periareolar skin

• Flagellate pigmentation from bleomycin.

– Occurs in ~10–20% of patients treated with systemic bleomycin.

– Pathogenesis is not well understood.

– Presents as linear hyperpigmented streaks on the chest, back, and occasionally extremities (Fig. 55.15); typically in a configuration that suggests a relationship to scratching, but attempts to reproduce lesions by scratching have in general been unsuccessful; an erythematous phase, which is typically pink in light-skinned individuals, can precede the hyperpigmentation.

– The hyperpigmentation is usually reversible once the bleomycin is discontinued, but may take 3–4 months to fade.

– Other skin findings can include circumscribed hyperpigmentation overlying the small joints of the hands as well as sclerodermoid changes.

• Flagellate mushroom dermatitis.

– Occurs after eating large amounts of raw or partially cooked shiitake mushrooms.

– A second form occurs in persons who cultivate shiitake mushrooms.

– Presents initially with pruritic papules and vesicles that develop on the face, scalp, trunk, and proximal extremities; scratching of these lesions then leads to long, flagellate streaks composed of petechiae or papules, followed finally by linear patterns of discoloration (due to hemosiderin) or postinflammatory hyperpigmentation.

Linear Hyperpigmentation That May or May Not be Along Blaschko's Lines

• Linear postinflammatory hyperpigmentation.

– More common in individuals with darkly pigmented skin.

– Occurs after linear trauma (e.g. burn, abrasion, dermatitis artefacta [Fig. 55.16]) and along veins (e.g. phlebitis, intravenous drug abuse, systemic sclerosis); also follows linear inflammatory dermatoses, most often allergic contact dermatitis due to plants (e.g. poison ivy/oak dermatitis) or phytophotodermatitis, which requires both plant exposure and UVR (see Fig. 55.7E).

– Occasionally, postinflammatory hyperpigmentation may follow Blaschko's lines due to the configuration of the antecedent inflammatory dermatosis (e.g. linear lichen planus, Blaschkitis).
