Page 534

Retinal circulation

Arterial system

1 The central retinal artery is an end artery that enters the optic nerve approximately 1 cm behind the globe and is composed of the following three anatomical layers:

a The intima, the innermost, is composed of a single layer of endothelium resting on a collagenous zone.

b The internal elastic lamina separates the intima from the media.

c The media consists mainly of smooth muscle.

d The adventitia is the outermost and is composed of loose connective tissue.

2 Retinal arterioles arise from the central retinal artery. They contain smooth muscle within their walls, but unlike arteries the internal elastic lamina is discontinuous.

Capillaries

Retinal capillaries supply the inner two-thirds of the retina, with the outer third being supplied by the choriocapillaris. The inner capillary network (plexus) is located in the ganglion cell layer, with an outer plexus in the inner nuclear layer. Capillary-free zones are present around arterioles (Fig. 13.1A) and at the fovea (foveal avascular zone – FAZ). Retinal capillaries are devoid of smooth muscle and elastic tissue and their walls consist of the following (Fig. 13.1B):

1 Endothelial cells form a single layer on the basement membrane and are linked by tight junctions that form the inner blood–retinal barrier.

2 The basement membrane lies beneath the endothelial cells with an outer basal lamina enclosing pericytes.

3 Pericytes lie external to endothelial cells and have multiple pseudopodial processes that envelop the capillaries. The pericytes have contractile properties and are thought to participate in autoregulation of the microvascular circulation.

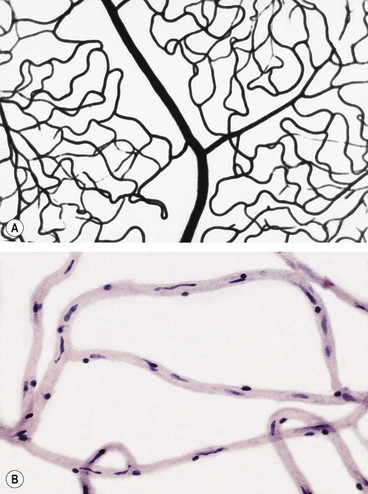

Fig. 13.1 Normal retinal capillary bed. (A) Periarteriolar capillary-free zone – flat preparation of Indian ink-injected retina; (B) endothelial cells with elongated nuclei and pericytes with rounded nuclei – trypsin digest preparation

(Courtesy of J Harry and G Misson, from Clinical Ophthalmic Pathology, Butterworth-Heinemann 2001)

Venous system

Retinal venules and veins drain blood from the capillaries.

1 Small venules are larger than capillaries but have a similar structure.

2 Larger venules contain smooth muscle and merge to form veins.

3 Veins contain a small amount of smooth muscle and elastic tissue in their walls and are relatively distensible. They gradually expand in diameter as they pass posteriorly towards the central retinal vein.

Diabetic retinopathy

Introduction

Prevalence

The reported prevalence of diabetic retinopathy (DR) varies substantially between studies, even amongst contemporary diabetic populations in the same country, but is probably up to 40%. It is more common in type 1 diabetes than in type 2 and sight-threatening disease is present in up to 10%. Proliferative diabetic retinopathy (PDR) affects 5–10% of the diabetic population; type 1 diabetics are at particular risk with an incidence of about 60% after 30 years.

Risk factors

Page 535

1 Duration of diabetes is the most important risk factor. In patients diagnosed with diabetes before the age of 30 years, the incidence of DR after 10 years is 50%, and after 30 years 90%. DR rarely develops within 5 years of the onset of diabetes or before puberty, but about 5% of type 2 diabetics have DR at presentation. It appears that duration is a stronger predictor for proliferative disease than for maculopathy.

2 Poor control of diabetes. It has been shown that tight blood glucose control, particularly when instituted early, can prevent or delay the development or progression of DR. However, a sudden improvement in control may be associated with progression of retinopathy in the near term. Type 1 diabetic patients appear to obtain greater benefit from good control than those with type 2. Raised HbA1c is associated with an increased risk of proliferative disease.

3 Pregnancy is sometimes associated with rapid progression of DR. Predicating factors include greater pre-pregnancy severity of retinopathy, poor pre-pregnancy control of diabetes, control exerted too rapidly during the early stages of pregnancy, and the development of pre-eclampsia and fluid imbalance. The risk of progression is related to the severity of DR in the first trimester. If substantial DR is present, frequency of review should reflect the individual risk, and can be up to monthly. Diabetic macular oedema usually resolves spontaneously after pregnancy and need not be treated if it develops in later pregnancy.

4 Hypertension, which is very common in patients with type 2 diabetes, should be rigorously controlled (<140/80). Tight control appears to be particularly beneficial in type 2 diabetics with maculopathy. Cardiovascular disease and previous stroke are also predictive.

5 Nephropathy, if severe, is associated with worsening of DR. Conversely, treatment of renal disease (e.g. renal transplantation) may be associated with improvement of retinopathy and a better response to photocoagulation.

6 Other risk factors include hyperlipidaemia, smoking, cataract surgery, obesity and anaemia.

Pathogenesis

DR is predominantly a microangiopathy in which small blood vessels are particularly vulnerable to damage from hyperglycaemia. Direct hyperglycaemic effects on retinal cells are also likely to play a role.

1 Mechanisms of cellular damage include intracellular sorbitol accumulation, oxidative stress due to free radical excess, accumulation of advanced glycation end products and excessive activation of several protein kinase C isoforms. Disruption of ion channel function is an important early feature.

2 Capillaropathy is characterized by death of pericytes (Fig. 13.2A), thickening of capillary basement membrane, loss of vascular smooth muscle cells and proliferation of endothelial cells. Haematological/rheological changes such as abnormalities of erythrocytes and leucocytes, increased platelet stickiness, and increased plasma viscosity may also contribute. Capillary dysfunction manifests with leakage and occlusion.

Page 536

3 Neovascularization is caused by capillary non-perfusion (Fig. 13.2B) which leads to retinal hypoxia which may progress to neovascularization extending preretinally (PDR) and intraretinally; intraretinal microvascular abnormalities (IRMA) are shunts that run within the retina from arterioles to venules. New vessel growth is thought to be caused by an imbalance between the elaboration of angiogenic and anti-angiogenic factors, putatively in an attempt to re-vascularize hypoxic retina.

Fig. 13.2 The capillary bed in diabetic retinopathy. (A) Capillary closure with adjacent dilated and elongated capillaries – flat preparation of Indian ink-injected retina; (B) degenerate pericytes which are eosinophilic – trypsin digest preparation; (C) new capillaries (arrows) on the inner retinal surface growing from vessels in relation to non-perfused areas – flat preparation of Indian ink-injected retina

(Courtesy of J Harry and G Misson, from Clinical Ophthalmic Pathology, Butterworth-Heinemann 2001)

Many angiogenic stimulators have been identified; vascular endothelial growth factor (VEGF), especially VEGF-A, appears to be of particular importance. Others include platelet-derived growth factor and hepatocyte growth factor. Similarly, several endogenous inhibitors of angiogenesis have also been reported such as endostatin, angiostatin and pigment epithelium-derived factor. It has been hypothesized that a key determinant of the activity of retinopathy is the net balance between VEGF and endostatin.

Classification

The classification used in the Early Treatment Diabetic Retinopathy Study (the modified Airlie House classification) is widely used internationally. An abbreviated version is set out in Table 13.1, in conjunction with management guidelines. The following descriptive categories are also in widespread use in clinical practice:

1 Background diabetic retinopathy (BDR) is characterized by microaneurysms, dot and blot haemorrhages and exudates. Generally the earlier signs of DR, although persisting as more advanced lesions appear.

2 Diabetic maculopathy strictly refers to the presence of any retinopathy at the macula, but commonly reserved for significant changes, particularly vision-threatening oedema and ischaemia.

3 Preproliferative diabetic retinopathy (PPDR) manifests cotton wool spots, venous changes, intraretinal microvascular anomalies (IRMA) and often deep retinal haemorrhages. PPDR indicates progressive retinal ischaemia, with a heightened risk of progression to retinal neovascularization.

4 PDR is characterized by neovascularization on or within one disc diameter of the disc (NVD) and/or new vessels elsewhere (NVE) in the fundus.

4 Advanced diabetic eye disease is characterized by tractional retinal detachment, significant persistent vitreous haemorrhage and neovascular glaucoma.

Table 13.1 Abbreviated Early Treatment Diabetic Retinopathy Study classification of diabetic retinopathy

Category/description	Management
Non-proliferative diabetic retinopathy (NPDR)
No DR	Review in 12 months
Very mild	Review most patients in 12 months
Microaneurysms only	Review most patients in 12 months
Mild	Review range 6–12 months, depending on severity of signs, stability, systemic factors, and patient’s personal circumstances
Any or all of: microaneurysms, retinal haemorrhages, exudates, cotton wool spots, up to the level of moderate NPDR. No IRMA or significant beading
Moderate	Review in approximately 6 months PDR in up to 26%, high-risk PDR in up to 8% within a year
• Severe retinal haemorrhages (more than ETDRS standard photograph 2A: about 20 medium-large per quadrant) in 1–3 quadrants or mild intraretinal microvascular abnormalities (IRMA) • Significant venous beading can be present in no more than 1 quadrant • Cotton wool spots commonly present
Severe	Review in 4 months PDR in up to 50%, high-risk PDR in up to 15% within a year
The 4-2-1 rule; one or more of: • Severe haemorrhages in all 4 quadrants • Significant venous beading in 2 or more quadrants • Moderate IRMA in 1 or more quadrants
Very severe	Review in 2–3 months High-risk PDR in up to 45% within a year
Two or more of the criteria for severe
Proliferative diabetic retinopathy (PDR)
Mild-moderate	Treatment considered according to severity of signs, stability, systemic factors, and patient’s personal circumstances such as reliability of attendance for review. If not treated, review in up to 2 months
New vessels on the disc (NVD) or new vessels elsewhere (NVE), but extent insufficient to meet the high-risk criteria
High-risk	Treatment advised – see text Should be performed immediately when possible, and certainly same day if symptomatic presentation with good retinal view
• New vessels on the disc (NVD) greater than ETDRS standard photograph 10A (about disc area) • Any NVD with vitreous or preretinal haemorrhage • NVE greater than disc area with vitreous or preretinal haemorrhage (or haemorrhage with presumed obscured NVD/E)
Advanced diabetic eye disease	See text
See text for description	See text

Signs

Figure 13.3 shows the location of lesions in background diabetic retinopathy.

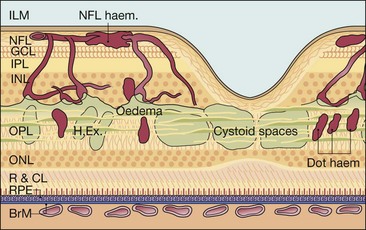

Fig. 13.3 Location of lesions in background diabetic retinopathy

Microaneurysms

Microaneurysms are localized out-pouchings, mainly saccular, of the capillary wall that may form either by focal dilatation of the capillary wall where pericytes are absent, or by fusion of two arms of a capillary loop (Fig. 13.4A). Most develop in the inner capillary plexus (inner nuclear layer) frequently in relation to areas of capillary non-perfusion (Fig. 13.4B). Loss of pericytes may also lead to endothelial cell proliferation with the formation of ‘cellular’ microaneurysms (Fig. 13.4C). Microaneurysms may leak plasma constituents into the retina as a result of breakdown in the blood–retinal barrier, or become thrombosed (Fig. 13.4D).

1 Signs. Tiny red dots, often initially temporal to the fovea; tend to be the earliest signs of DR (Fig. 13.4E). They may be indistinguishable from dot haemorrhages.

2 Fluorescein angiography (FA). Early frames show tiny hyperfluorescent dots (Fig. 13.4F), representing non-thrombosed microaneurysms, typically more numerous than visible clinically. Late frames show diffuse hyperfluorescence due to leakage.

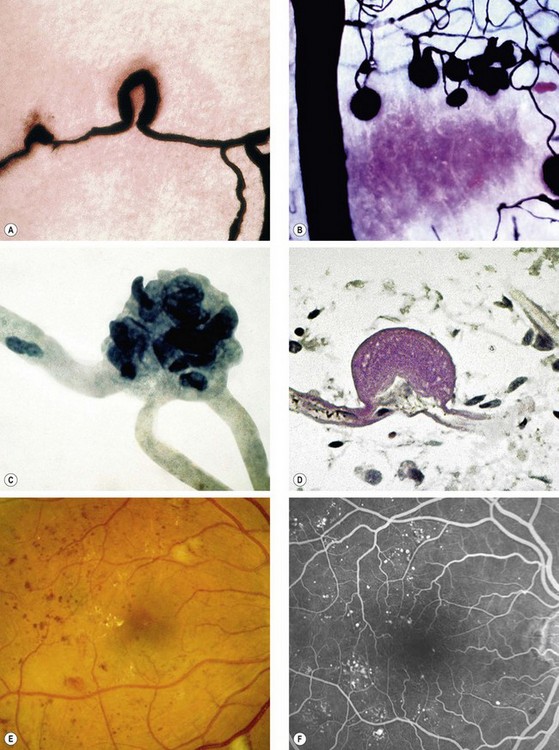

Fig. 13.4 Retinal microaneurysm. (A) Two arms of a capillary loop are not yet fused to become a microaneurysm – flat preparation of Indian ink-injected retina; (B) an area of capillary non-perfusion and adjacent microaneurysms – flat preparation of Indian ink-injected retina; (C) microaneurysm with endothelial cell proliferation (cellular microaneurysm) – trypsin digest preparation; (D) thrombosed microaneurysm – PAS and haematoxylin stain; (E) microaneurysms at the posterior pole; (F) FA shows scattered hyperfluorescent spots in the posterior fundus

(Courtesy of J Harry and G Misson, from Clinical Ophthalmic Pathology, Butterworth-Heinemann 2001 – fig. A; J Harry – figs B–D)

Retinal haemorrhages

Figure 13.5A is a histological section showing the location of blood.

1 Retinal nerve fibre layer haemorrhages arise from the larger superficial pre-capillary arterioles and because of the architecture of the retinal nerve fibres are flame-shaped (Fig. 13.5B).

2 Intraretinal haemorrhages arise from the venous end of capillaries and are located in the compact middle layers of the retina with a resultant red ‘dot/blot’ configuration (Fig. 13.5C).

3 Deeper dark round haemorrhages represent haemorrhagic retinal infarcts and are located within the middle retinal layers (Fig. 13.5D). The extent of involvement is a significant marker of the likelihood of progression to retinal neovascularization.

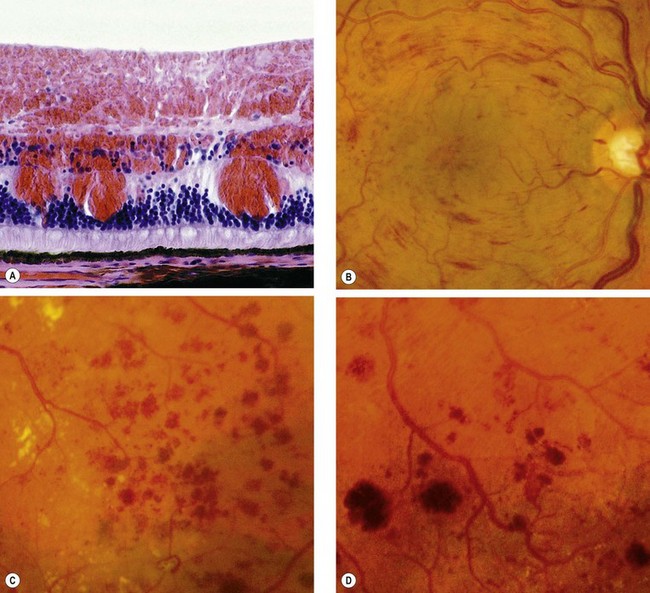

Fig. 13.5 Retinal haemorrhages. (A) Histology shows blood lying diffusely in the retinal nerve fibre and ganglion cell layers and as globules in the outer layers; (B) retinal nerve fibre layer haemorrhages; (C) deep dot and blot haemorrhages; (D) deep dark haemorrhages

(Courtesy of J Harry and G Misson, from Clinical Ophthalmic Pathology, Butterworth-Heinemann 2001 – fig. A; Moorfields Eye Hospital – fig. C)

Exudates

Page 537

Exudates, sometimes termed ‘hard’ exudates to distinguish from the older term of ‘soft’ exudates for cotton wool spots, are caused by chronic localized retinal oedema and develop at the junction of normal and oedematous retina. They are composed of lipoprotein and lipid-filled macrophages located mainly within the outer plexiform layer (Fig. 13.6A). Hyperlipidaemia may increase the likelihood of exudate formation.

1 Signs

• Waxy yellow lesions with relatively distinct margins, often arranged in clumps and/or rings at the posterior pole, typically surrounding leaking microaneurysms (Fig. 13.6B).

• With time number and size tend to increase (Fig. 13.6C), and the fovea may be threatened or involved (Fig. 13.6D).

• When leakage ceases, exudates absorb spontaneously over a period of months or years, either into the healthy surrounding capillaries or by phagocytosis of their lipid content.

• Chronic leakage leads to enlargement of the exudates and the deposition of cholesterol (Fig. 13.6E).

2 FA shows hypofluorescence due to blockage of background choroidal and retinal capillary fluorescence.

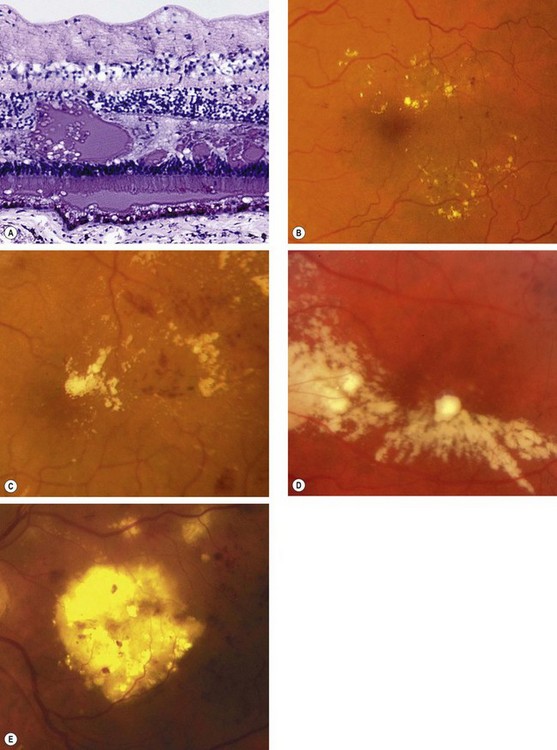

Fig. 13.6 Exudates. (A) Histology shows irregular eosinophilic deposits mainly in the outer plexiform layer; (B) small exudates and microaneurysms; (C) incomplete ring of exudates and a few small haemorrhages; (D) exudates involving the fovea; (E) plaque of exudates at the macula associated with cholesterol deposition

(Courtesy of J Harry – fig. A)

Diabetic macular oedema

Page 538

Page 539

Diabetic maculopathy (foveal oedema, exudates or ischaemia) is the most common cause of visual impairment in diabetic patients, particularly type 2. Diffuse retinal oedema is caused by extensive capillary leakage, and localized oedema by focal leakage from microaneurysms and dilated capillary segments. The fluid is initially located between the outer plexiform and inner nuclear layers; later it may also involve the inner plexiform and nerve fibre layers, until eventually the entire thickness of the retina becomes oedematous. With further accumulation of fluid the fovea assumes a cystoid appearance (cystoid macular oedema – CMO).

1 Signs. Retinal thickening is best detected by slit-lamp biomicroscopy with a contact lens, though high-resolution non-contact lenses are also effective.

2 FA shows diffuse late hyperfluorescence due to retinal capillary leakage, and may have a flower-petal pattern if CMO is present (Fig. 13.7A).

3 OCT shows retinal thickening and, if present, cystoid spaces (Fig. 13.7B). OCT is also useful in assessing response to treatment.

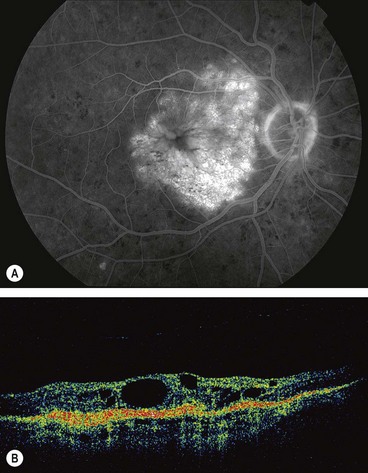

Fig. 13.7 Macular oedema. (A) FA shows diffuse hyperfluorescence with a central flower-petal configuration due to CMO; (B) OCT shows retinal thickening and cystoid spaces

(Courtesy of Moorfields Eye Hospital – fig. A; Oxford Eye Hospital – fig. B)

Focal maculopathy

1 Signs. Well-circumscribed retinal thickening associated with complete or incomplete rings of exudates (Fig. 13.8A).

2 FA shows late, focal hyperfluorescence due to leakage, and good macular perfusion (Fig. 13.8B).

Page 540

Page 541

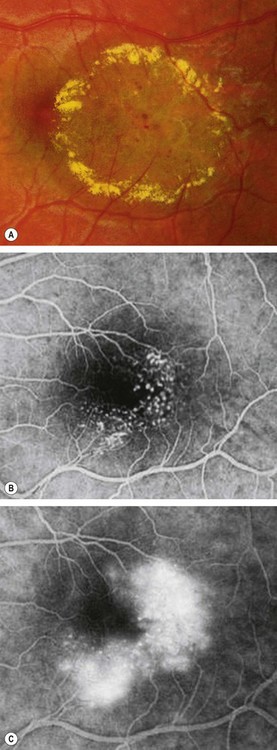

Fig. 13.8 Focal diabetic maculopathy. (A) A ring of hard exudates temporal to the macula; (B) FA late phase shows focal area of hyperfluorescence due to leakage corresponding to the centre of the exudate ring

Diffuse maculopathy

1 Signs. Diffuse retinal thickening, which may be associated with cystoid changes. Landmarks are obliterated by severe oedema which may render localization of the fovea impossible (Fig. 13.9A).

2 FA shows late diffuse hyperfluorescence (Fig. 13.9B) which may assume a central flower-petal pattern if CMO is present.

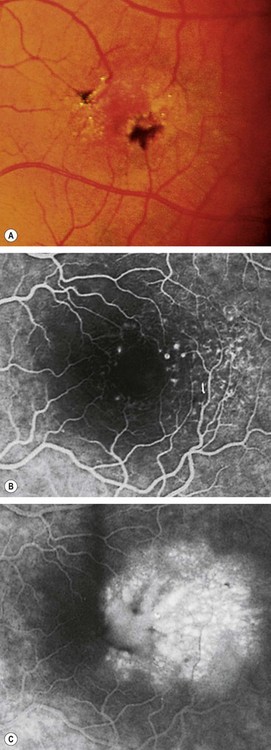

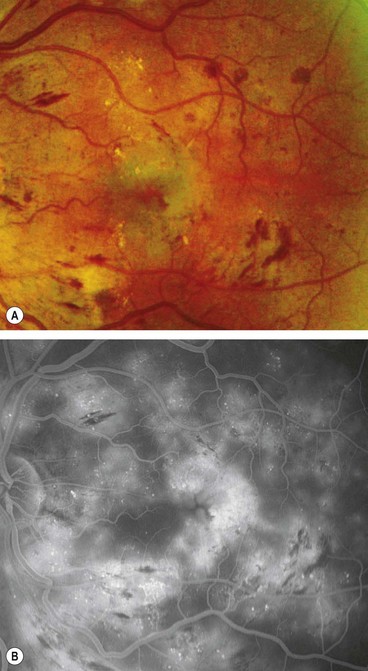

Fig. 13.9 Diffuse diabetic maculopathy. (A) Dot and blot haemorrhages; (B) FA late phase shows extensive hyperfluorescence at the posterior pole due to leakage

Ischaemic maculopathy

1 Signs are variable and the macula may look relatively normal despite reduced visual acuity. In other cases PPDR may be present (Fig. 13.10A).

2 FA shows capillary non-perfusion at the fovea (an enlarged FAZ) and frequently other areas of capillary non-perfusion at the posterior pole and periphery (Fig. 13.10B).

Fig. 13.10 Ischaemic diabetic maculopathy. (A) Dot and blot haemorrhages and cotton wool spots; (B) FA venous phase shows hypofluorescence due to capillary non-perfusion at the macula and elsewhere

(Courtesy of Moorfields Eye Hospital)

Clinically significant macular oedema

Clinically significant macular oedema (CSMO) was defined in the ETDRS (Fig. 13.11):

• Retinal thickening within 500 µm of the centre of the macula (Fig. 13.11, upper left).

• Exudates within 500 µm of the centre of the macula, if associated with retinal thickening (which may be outside the 500 µm – Fig. 13.11, upper right).

• Retinal thickening one disc area (1500 µm) or larger, any part of which is within one disc diameter of the centre of the macula (Fig. 13.11, lower centre).

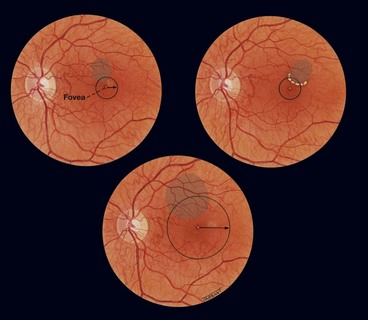

Fig. 13.11 Clinically significant macular oedema

Cotton wool spots

Page 542

Cotton wool spots are composed of accumulations of neuronal debris within the nerve fibre layer. They result from disruption of nerve axons, the swollen ends of which are known as cytoid bodies, seen on light microscopy as globular structures in the nerve fibre layer (Fig. 13.12A). As cotton wool spots heal, debris is removed by autolysis and phagocytosis.

1 Signs. Small, whitish, fluffy superficial lesions which obscure underlying blood vessels and are clinically evident only in the post-equatorial retina, where the nerve fibre layer is of sufficient thickness to render them visible (Fig. 13.12B).

2 FA shows focal hypofluorescence due to blockage of background choroidal fluorescence, frequently associated with adjacent capillary non-perfusion.

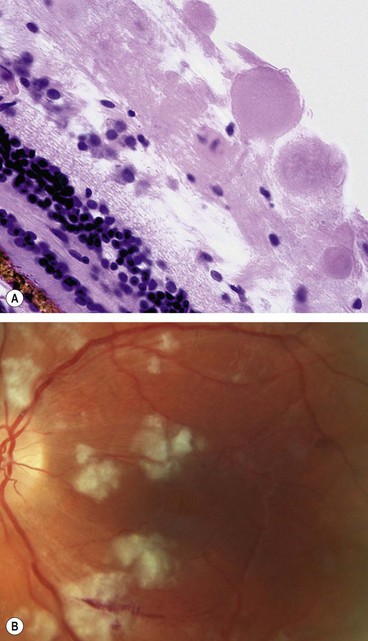

Fig. 13.12 Cotton wool spots. (A) Histology shows cytoid bodies in the nerve fibre layer; (B) clinical appearance

(Courtesy of J Harry – fig. A; K Slowinski – fig. B)

Venous changes

Venous anomalies seen in ischaemia consist of generalized dilatation and tortuosity, ‘looping’ (Fig. 13.13A), ‘beading’ (focal narrowing and dilatation – Fig. 13.13B) and ‘sausage-like’ segmentation (Fig. 13.13C). The extent of the retinal area exhibiting venous changes correlates well with the likelihood of developing proliferative disease.

Fig. 13.13 Venous changes. (A) Looping; (B) beading; (C) severe segmentation

Intraretinal microvascular abnormalities

Intraretinal microvascular abnormalities (IRMA) are arteriolar-venular shunts that run from retinal arterioles to venules, thus bypassing the capillary bed and are therefore often seen adjacent to areas of marked capillary hypoperfusion (Fig. 13.14A).

Page 543

1 Signs. Fine, irregular, red intraretinal lines that run from arterioles to venules (Fig. 13.14B), without crossing major blood vessels.

2 FA shows focal hyperfluorescence associated with adjacent areas of capillary closure (’dropout’) but without leakage.

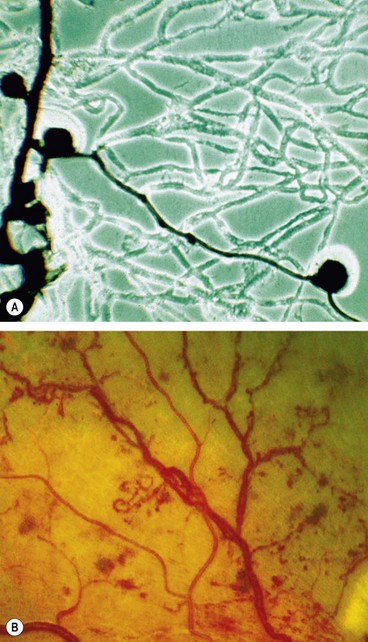

Fig. 13.14 Intraretinal microvascular abnormalities. (A) Histology shows arteriolar-venular shunt and a few microaneurysms within a poorly perfused capillary bed – flat preparation of Indian ink-injected retina; phase contrast microscopy; (B) clinical appearance

(Courtesy of J Harry – fig. A; Moorfields Eye Hospital – fig. B)

Arterial changes

Subtle retinal arteriolar dilatation may be an early marker of ischaemic dysfunction. When significant ischaemia is present these include peripheral narrowing, silver-wiring and obliteration (Fig. 13.15), similar to the late appearance following a branch retinal artery occlusion.

Fig. 13.15 Peripheral arteriolar occlusion

Proliferative retinopathy

It has been estimated that over one-quarter of the retina must be non-perfused before PDR develops. Although preretinal new vessels may arise anywhere in the retina, they are most commonly seen at the posterior pole. Fibrous tissue, initially fine, gradually develops in association as vessels increase in size.

1 New vessels at the disc (NVD) describes neovascularization on or within one disc diameter of the optic nerve head (Fig. 13.16A–C).

2 New vessels elsewhere (NVE) describes neovascularization further away from the disc (Fig. 13.17A and B) that may be associated with fibrosis (Fig. 13.17D) if long-standing.

3 New vessels on the iris (NVI), also known as rubeosis iridis, carry a high likelihood of progression to neovascular glaucoma.

4 FA, although not required to make the diagnosis, highlights neovascularization during the early phases of the angiogram (see Fig. 13.16D) and shows hyperfluorescence during the later stages due to intense leakage of dye from neovascular tissue (Fig. 13.17D).

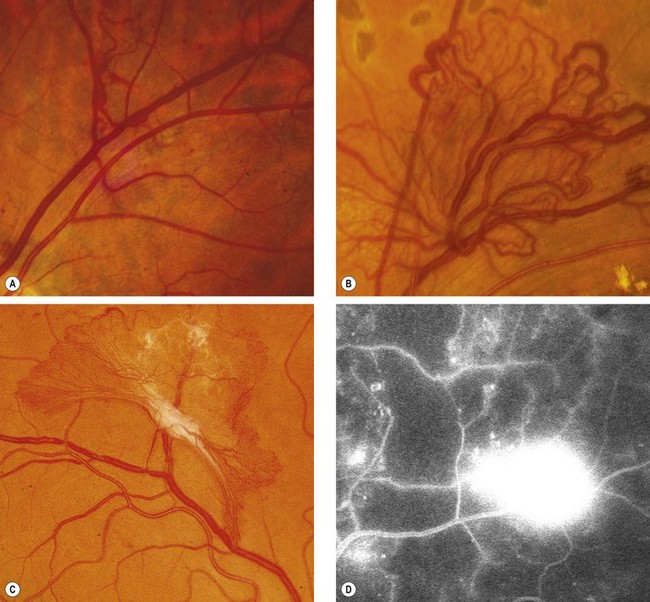

Fig. 13.16 Disc new vessels. (A) Mild; (B) severe; (C) very severe; (D) FA early phase highlights the vessels

(Courtesy of P Gili)

Fig. 13.17 New vessels elsewhere. (A) Mild; (B) severe; (C) associated with fibrosis; (D) FA late phase shows capillary non-perfusion and hyperfluorescence due to leakage

(Courtesy of C Barry – fig. D)

Treatment

Argon laser treatment of clinically significant macular oedema

1 Indications

• All eyes with CSMO should be considered for laser photocoagulation irrespective of the level of visual acuity, because treatment reduces the risk of visual loss by 50%. However, options should always be discussed with the patient, and if visual acuity is good some authorities prefer to recommend careful observation, as macular laser is not without risk, and oedema sometimes resolves spontaneously.

Page 544

• Pre-treatment FA is useful to delineate the area and extent of leakage, and to detect ischaemic maculopathy (see Fig. 13.10) which carries a poor prognosis and if severe is a relative contraindication to treatment.

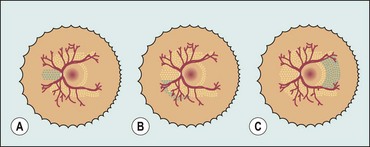

2 Focal treatment (Fig. 13.18A)

• Burns are applied to microaneurysms and microvascular lesions in the centre of rings of exudates located 500–3000 µm from the centre of the macula.

• The spot size is 50–100 µm and exposure time 0.1 second with sufficient power to obtain gentle whitening or darkening of the microaneurysm.

• Treatment of lesions up to 300 µm from the centre of the macula may be considered if CSMO persists despite previous treatment and visual acuity is less than 6/12. In these cases a shorter exposure time of 0.05 second is recommended.

3 Grid treatment (Fig. 13.18B)

• Burns are applied to areas of diffuse retinal thickening more than 500 µm from the centre of the macula and 500 µm from the temporal margin of the optic disc.

• The spot size is 100 µm and exposure time 0.1 second giving a very light intensity burn.

• Treatment should be lighter if significant macular ischaemia is present.

4 Results. Approximately 70% of eyes achieve stable visual acuity, 15% show improvement and 15% subsequently deteriorate. Since it may take up to 4 months for the oedema to resolve, re-treatment should not be considered prematurely.

5 Poor prognostic factors

a Ocular factors include significant macular ischaemia, exudates involving the fovea, diffuse macular oedema, CMO and severe retinopathy at presentation.

b Systemic factors include uncontrolled hypertension, renal disease, poorly-controlled blood glucose (elevated HbA1c levels).

Page 545

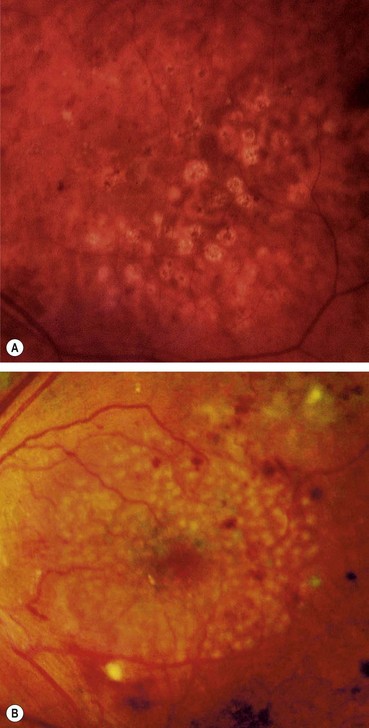

Fig. 13.18 Laser photocoagulation for clinically significant macular oedema. (A) Appearance several weeks following focal laser photocoagulation shows laser scars and absence of hard exudates; (B) appearance immediately following grid laser photocoagulation

Other treatments for maculopathy

Argon laser remains the primary therapeutic modality, but numerous other forms of treatment have shown promising results.

1 Other lasers

a Frequency-doubled Nd:YAG laser offers the potential of a less destructive retinal effect than argon, in which the energy employed is the lowest capable of producing barely visible burns at the level of the RPE. The ‘Pattern Scan Laser’ (Pascal) uses frequency-doubled micropulse YAG in single shot mode or in a predetermined array of up to 56 shots applied in less than a second. This greatly improves patient comfort as compared with conventional argon laser.

b Micropulse diode laser in which short duration (microseconds) burns are applied to the RPE without significantly affecting the outer retina and choriocapillaris.

2 Intravitreal anti-vascular endothelial growth factor (anti-VEGF) agents. A large multicentre trial (The Diabetic Retinopathy Research Network Laser-Ranibizumab-Triamcinolone Study) recently showed that intravitreal injection of 0.5 mg ranibizumab, initially given monthly for 3 months, with prompt or deferred (≥24 weeks) macular laser had significantly superior visual and OCT outcomes to laser alone in eyes with diabetic macular oedema involving the fovea. It is likely that intravitreal VEGF inhibitors will play an increasingly prominent role in the treatment of diabetic retinopathy.

3 Intravitreal triamcinolone. The study described above also investigated the effect of intravitreal triamcinolone injection, finding that in pseudophakic eyes steroid injection followed by prompt laser may be as effective as ranibizumab at improving vision and reducing retinal thickening. However, there was a significant risk of an elevation of intraocular pressure. No corresponding visual benefit above laser was shown for phakic eyes, which also had a substantially increased rate of cataract surgery by 2 years.

4 Pars plana vitrectomy may be indicated when macular oedema is associated with tangential traction from a thickened and taut posterior hyaloid. It has also been suggested that some eyes without a taut posterior hyaloid may benefit from vitrectomy. Clinically, a taut thickened posterior hyaloid is characterized by an increased glistening of the pre-macular vitreous face. FA typically shows diffuse leakage and prominent CMO, but OCT is usually the definitive assessment.

5 Lipid-lowering drugs may reduce the requirement for laser treatment, and studies are ongoing.

Page 546

Laser photocoagulation for proliferative retinopathy

The Diabetic Retinopathy Study (DRS) established the characteristics of high-risk proliferative disease and investigated the effect of panretinal photocoagulation (PRP). The benefits demonstrated included:

• Mild NVD with haemorrhage carries a 26% risk of visual loss, which is reduced to 4% with treatment.

• Severe NVD without haemorrhage carries a 26% risk of visual loss, which is reduced to 9% with treatment.

• Severe NVD with haemorrhage carries a 37% risk of visual loss, which is reduced to 20% with treatment.

• Severe NVE with haemorrhage carries a 30% risk of visual loss, which is reduced to 7% with treatment.

1 Indications. Laser therapy is aimed at inducing the involution of new vessels and thereby preventing visual loss; see Table 13.1 for specific indications. It should be noted that:

• PRP influences only the vascular component of the fibrovascular process. Eyes in which new vessels have regressed leaving only fibrous tissue should not be re-treated.

• If CSMO is also present, laser for this should preferably be carried out prior to PRP or at the same session; the intensity and amount of PRP should be kept to the lowest level likely to be effective, and may be spread over multiple sessions; adjunctive intravitreal steroid or an anti-VEGF agent may improve the outcome in this situation.

Page 547

2 Informed consent. Patients should be advised that PRP may occasionally cause visual field defects of sufficient severity to legally preclude driving a motor vehicle; they should also be made aware that there is some risk to central vision, and that night and colour vision may be affected.

3 Laser settings

a Spot size depends on the contact lens used. With the Goldmann lens spot size is set at 200–500 µm, but with a panfundoscopic-type lens it is set at 100–300 µm because of induced magnification (varies with exact lens used). The main effect is related to surface area of retina treated rather than the number of burns; a small variation in the size of the laser burn therefore has a pronounced effect on area treated (area = πr²). In the beginner’s hands, a panfundoscopic lens is perhaps safer than the Goldmann, as it is more difficult to inadvertently photocoagulate the posterior pole through the former.

b Duration of the burn is 0.05–0.1 second.

c Power should be sufficient to produce only a light intensity burn (Fig. 13.19A), with the intention of stimulating the retinal pigment epithelium rather than ablating the retina (Fig. 13.19B).

Page 548

4 Initial treatment involves 1500–2000 burns in a scatter pattern extending from the posterior fundus to cover the peripheral retina in one or more sessions; PRP completed in a single session carries a slightly higher risk of complications. The amount of treatment it is possible to apply during one session is governed by the patient’s pain threshold; discomfort tends to be least at the posterior pole and greatest in the periphery and over the horizontal neurovascular bundle, and tends to worsen with successive sessions. Topical anaesthesia is adequate in most patients, although peribulbar or sub-Tenon anaesthesia may be necessary. A suggested treatment sequence is as follows:

a Step 1. Close to the disc (Fig. 13.20A); below the inferior temporal arcades (Fig. 13.20B and C).

b Step 2. Protective barrier around the macula (Fig. 13.21A) to prevent inadvertent treatment of the fovea; above the superotemporal arcade (Fig. 13.21B and C). If necessary, the retina just inside the arcades can be treated.

c Step 3. Nasal to the disc (Fig. 13.22A and B); completion of posterior pole treatment (Fig. 13.22C). Many practitioners leave two disc diameters untreated at the nasal side of the disc, to preserve paracentral field.

d Step 4. Peripheral treatment (Fig. 13.23A and B) until completion (Fig. 13.23C).

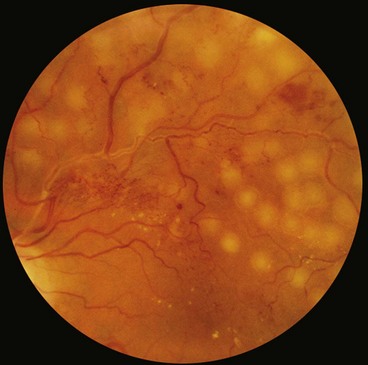

Fig. 13.19 (A) Appropriate laser burns; (B) appearance several weeks after completion of treatment

(Courtesy of C Barry – fig. B)

Fig. 13.20 PRP technique – step 1

Fig. 13.21 PRP technique – step 2

Fig. 13.22 PRP technique – step 3

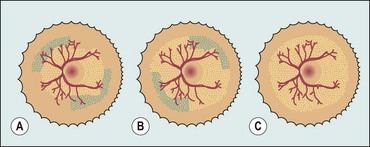

Fig. 13.23 PRP technique – step 4

In very severe PDR it is advisable to treat the inferior fundus first, since any vitreous haemorrhage will gravitate inferiorly and obscure this area, precluding further treatment.

5 Follow-up is after 4–6 weeks. In eyes with severe NVD, 3000 or more burns may be required. Occasionally complete elimination of NVD may be difficult but once the tips of the vessels start to undergo fibrosis they pose much less of a threat to vision.

6 Signs of involution consist of regression of neovascularization leaving ‘ghost’ vessels or fibrous tissue (Fig. 13.24), decrease in venous changes, absorption of retinal haemorrhages and disc pallor. In most eyes, once the retinopathy is quiescent, stable vision is maintained. In a few eyes, recurrences occur despite an initial satisfactory response, and patients should remain under observation.

Page 549

7 Treatment of recurrences may involve further laser photocoagulation filling in any gaps between previous laser scars or utilizing indirect laser to treat very peripheral retina.

8 Fibrosis associated with neovascularization (see Fig. 13.17C) is important, since significant fibrous proliferation, although less likely to bleed carries an increased risk of tractional retinal detachment.

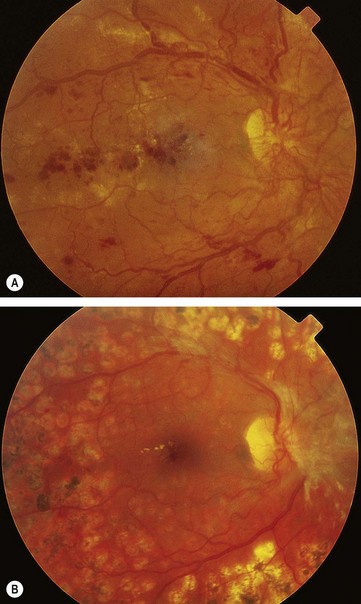

Fig. 13.24 Treatment of proliferative diabetic retinopathy. (A) Severe proliferative disease; (B) 3 months later new vessels have regressed and there is residual fibrosis at the disc

(Courtesy of S Milewski)

VEGF inhibition for proliferative retinopathy

Intravitreal anti-VEGF injection is likely to have an increasing role in the treatment of PDR, probably as an adjunct to laser. A particular indication may be to encourage the resolution of persistent vitreous haemorrhage, avoiding vitrectomy in some patients.

Advanced diabetic eye disease

Advanced diabetic eye disease is a serious vision-threatening complication of DR that occurs in patients in whom treatment has been inadequate or unsuccessful. Occasionally, advanced disease is evident at, or prompts, presentation.

Diagnosis

Page 550

1 Haemorrhage may be preretinal (retrohyaloid, Fig. 13.25A), intragel (Fig. 13.25B) or both. Intragel haemorrhages usually take longer to clear than preretinal haemorrhages because the former are usually the result of a more extensive bleed. In some eyes, altered blood becomes compacted on the posterior vitreous face to form an ‘ochre membrane’. Patients should be warned that bleeding may be precipitated by severe physical exertion or straining, hypoglycaemia and direct ocular trauma. Ultrasonography is used in eyes with dense vitreous haemorrhage to detect the possibility of associated retinal detachment (see Fig. 17.1D).

2 Tractional retinal detachment (Fig. 13.25C) is caused by progressive contraction of fibrovascular membranes over areas of vitreoretinal attachment. Posterior vitreous detachment in eyes with PDR is often incomplete due to the strong adhesions between cortical vitreous and areas of fibrovascular proliferation (see Ch. 16).

3 Tractional retinoschisis with or without retinal detachment may also occur.

4 Rubeosis iridis (iris neovascularization – Fig. 13.25D) may occur in eyes with PDR, and if severe may lead to neovascular glaucoma. Rubeosis is particularly common in eyes with severe retinal ischaemia or persistent retinal detachment following unsuccessful pars plana vitrectomy.

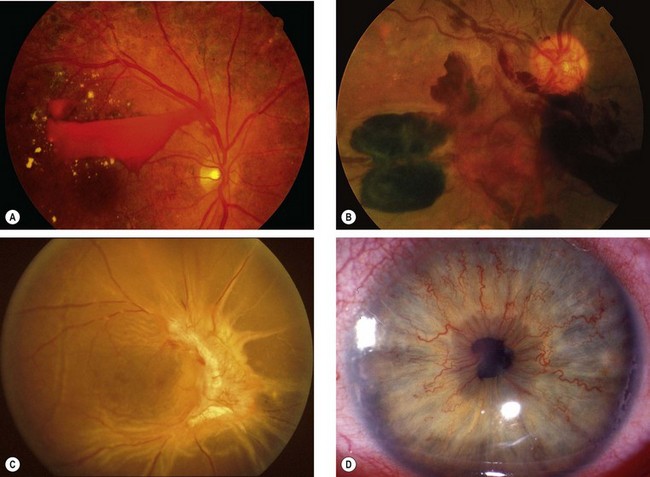

Fig. 13.25 Advanced diabetic eye disease. (A) Retrohyaloid haemorrhage; (B) intragel haemorrhage; (C) tractional retinal detachment; (D) rubeosis iridis

(Courtesy of C Barry – figs A and D)

Indications for pars plana vitrectomy

1 Severe persistent vitreous haemorrhage that precludes adequate PRP is the most common indication. In the absence of rubeosis iridis, vitrectomy has traditionally been considered within 3 months of the initial vitreous haemorrhage in type 1 diabetics and in most cases of bilateral haemorrhage. However, the availability of intravitreal anti-VEGF injections may modify this approach.

2 Progressive tractional RD threatening or involving the macula must be treated without delay (Fig. 13.26A). However, extramacular tractional detachments may be observed, since they often remain stationary for prolonged periods.

3 Combined tractional and rhegmatogenous RD should be treated urgently, even if the macula is not involved, because subretinal fluid is likely to spread quickly to involve the macula.

4 Premacular subhyaloid haemorrhage, if dense (Fig. 13.26B) and persistent should be considered for vitrectomy because, if untreated, the internal limiting membrane or posterior hyaloid face may serve as a scaffold for subsequent fibrovascular proliferation and consequent tractional macular detachment or macular epiretinal membrane formation. Some cases of successful dispersion with YAG lazer (hyaloidotomy) have been reported.

Page 551

Fig. 13.26 Indications for pars plana vitrectomy. (A) Tractional detachment involving the macula; (B) large premacular subhyaloid haemorrhage

Visual results of pars plana vitrectomy

Visual results depend on the specific indications for surgery and the complexity of pre-existing vitreoretinal abnormalities. In general, about 70% of cases achieve visual improvement, about 10% are made worse and the rest are unchanged. It appears that the first few postoperative months are vital. If an eye is doing well after 6 months, then the long-term outlook is good because the incidence of subsequent vision-threatening complications is low. Favourable prognostic factors include:

• Good preoperative visual function.

• Age 40 years or less.

• Absence of preoperative rubeosis and glaucoma.

• Previous PRP to at least one-quarter of the fundus.

Retinal venous occlusive disease

Pathogenesis

Arteriolosclerosis is an important causative factor for branch retinal vein occlusion (BRVO). Because a retinal arteriole and its corresponding vein share a common adventitial sheath, thickening of the arteriole appears to compress the vein. This causes secondary changes, including venous endothelial cell loss, thrombus formation and potential occlusion. Similarly, the central retinal vein and artery share a common adventitial sheath at arteriovenous crossings posterior to the lamina cribrosa so that atherosclerotic changes of the artery may compress the vein and precipitate central retinal vein occlusion (CRVO). It therefore appears that both arterial and venous disease contribute to retinal vein occlusion. Venous occlusion causes elevation of venous and capillary pressure with stagnation of blood flow. Stagnation results in hypoxia of the retina drained by the obstructed vein, which, in turn, results in damage to the capillary endothelial cells and extravasation of blood constituents. The tissue pressure is increased, causing further stagnation of the circulation and hypoxia, so that a vicious cycle is established.

Predisposing factors

Common

1 Age is the most important factor; over 50% of cases occur in patients over the age of 65 years.

2 Hypertension is present in up to 73% of RVO patients over the age of 50 years and in 25% of younger patients. It is most prevalent in patients with BRVO, particularly when the site of obstruction is at an arteriovenous crossing. Inadequate control of hypertension may also predispose to recurrence of RVO in the same or fellow eye.

3 Hyperlipidaemia (total cholesterol >6.5 mmol/l) is present in 35% of patients, irrespective of age.

4 Diabetes mellitus is present in about 10% of cases over the age of 50 years but is uncommon in younger patients. This may be due to an associated higher prevalence of other cardiovascular risk factors such as hypertension which is present in 70% of type 2 diabetics.

5 Oral contraceptive pill. In younger females the contraceptive pill is the most common underlying association, and should not be taken following retinal vein occlusion. The risk may be exacerbated by thrombophilia.

6 Raised intraocular pressure increases the risk of CRVO, particularly when the site of obstruction is at the edge of the optic cup.

7 Smoking. Current smoking may be associated with an increased incidence of RVO, though studies have shown inconsistent results.

Uncommon

Uncommon predispositions (listed below) may assume more importance in patients under the age of 50 years.

1 Myeloproliferative disorders

• Polycythaemia.

• Abnormal plasma proteins (e.g. myeloma, Waldenström macroglobulinaemia).

2 Acquired hypercoagulable states

• Hyperhomocysteinaemia.

Page 552

• Lupus anticoagulant and antiphospholipid antibodies.

• Dysfibrinogenaemia.

3 Inherited hypercoagulable states

• Activated protein C resistance (factor V Leiden mutation).

• Protein C deficiency.

• Protein S deficiency.

• Antithrombin deficiency.

• Prothrombin gene mutation.

• Factor Xll deficiency.

4 Inflammatory disease associated with occlusive periphlebitis

• Behçet syndrome.

• Sarcoidosis.

• Wegener granulomatosis.

• Goodpasture syndrome.

5 Miscellaneous

• Chronic renal failure.

• Causes of secondary hypertension (e.g. Cushing syndrome) or hyperlipidaemia (e.g. hypothyroidism).

• Orbital disease.

• Dehydration may be significant, particularly in younger patients and in hot countries

Factors that appear to decrease the risk of venous occlusion include increased physical activity and moderate alcohol consumption.

Systemic assessment

All patients

1 Blood pressure.

2 Erythrocyte sedimentation rate (ESR) or plasma viscosity (PV).

3 Full blood count (FBC).

4 Random blood glucose. Further assessment for diabetes if indicated.

5 Random total and HDL cholesterol. Additional lipid testing may be considered.

6 Plasma protein electrophoresis. To detect dysproteinaemias such as multiple myeloma.

7 Urea, electrolytes and creatinine. Chronic renal failure is a rare cause of RVO, but renal disease may occur in association with hypertension.

8 Thyroid function tests. Patients with RVO have a higher prevalence of thyroid disease than the general population. Thyroid dysfunction is also associated with dyslipidaemia.

9 ECG. To detect left ventricular hypertrophy secondary to hypertension; required for the Framingham equation used in the calculation of cardiovascular risk.

Selected patients according to clinical indication

Patients in whom these might be considered are those under the age of 50, those with bilateral RVO, a history of previous thromboses or a family history of thrombosis, and possibly in other patients in whom investigation for the common associations is negative.

1 Chest X-ray. Sarcoidosis, tuberculosis, left ventricular hypertrophy in hypertension.

2 C-reactive protein (CRP). Sensitive indicator of inflammation.

3 ’Thrombophilia screen’. By convention refers to heritable thrombophilias; might typically include thrombin time, prothrombin time and activated partial thromboplastin time, antithrombin functional assay, protein C, protein S, activated protein C resistance, factor V Leiden mutation, prothrombin G20210A mutation; anticardiolipin antibody (IgG and IgM), lupus anticoagulant.

4 Autoantibodies. Rheumatoid factor, anti-nuclear antibody, anti-DNA antibody.

5 Serum angiotensin-converting enzyme (ACE). Sarcoidosis.

6 Fasting plasma homocysteine level. To exclude hyperhomocysteinaemia.

7 Treponemal serology. Local testing preference should be discussed with the microbiology team.

8 Carotid duplex imaging to exclude ocular ischaemic syndrome.

Branch retinal vein occlusion

Classification

1 Major branch retinal vein occlusion (BRVO) at the disc (Fig. 13.27A) and away from the disc (Fig. 13.27B).

2 Macular BRVO involving only a macular branch (Fig. 13.27C).

Page 553

3 Peripheral BRVO not involving the macular circulation (Fig. 13.27 D-F).

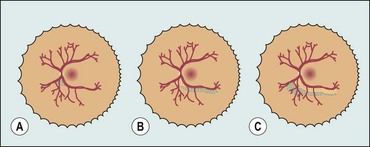

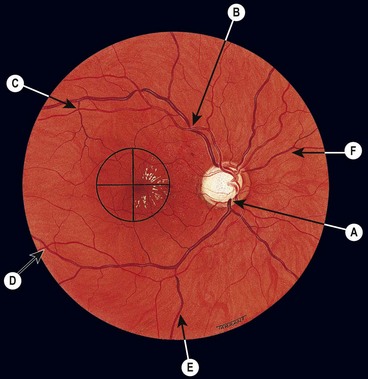

Fig. 13.27 Classification of retinal branch vein occlusion according to site of blockage. (A) Major at the disc; (B) major away from the disc; (C) minor macular; (D–F) peripheral not involving the macula

Diagnosis

1 Presentation depends on the extent of macular circulation compromised by the occlusion. Patients with macular involvement often present with the sudden onset of blurred vision and metamorphopsia, or a relative visual field defect. Patients with peripheral occlusions may be asymptomatic.

2 VA is very variable and is principally dependent on the extent of macular involvement.

3 Fundus (Fig. 13.28A).

• Dilatation and tortuosity of the affected venous segment.

• The site of occlusion is often identifiable as an arteriovenous crossing point.

• Flame-shaped and dot/blot haemorrhages, retinal oedema, sometimes cotton wool spots affecting the sector of the retina drained by the obstructed vein.

4 FA shows variable delayed venous filling, blockage by blood, staining of the vessel wall, hypofluorescence due to capillary non-perfusion and ‘pruning’ of vessels in the ischaemic areas (Fig. 13.28B).

5 OCT demonstrates and allows quantification of the severity of macular oedema and is a useful way of monitoring its course or the response to treatment.

6 Course. The acute features usually resolve within 6–12 months and may be replaced by the following:

• Exudates, venous sheathing and sclerosis peripheral to the site of obstruction, collaterals and variable residual haemorrhage (Fig. 13.29A).

• Collateral are characterized by slightly tortuous veins that develop locally or across the horizontal raphe between the inferior and superior vascular arcades and are best detected on FA (Fig. 13.29B).

• The severity of residual signs is highly variable and they may be only subtle.

Fig. 13.28 Major superior branch vein occlusion. (A) Flame-shaped and blot haemorrhage, a few cotton wool spots and venous tortuosity; (B) FA shows blockage by blood and areas of capillary non-perfusion

(Courtesy of C Barry)

Fig. 13.29 Old major superior branch vein occlusion. (A) Venous sheathing, collaterals, exudates and residual haemorrhages; (B) FA shows capillary non-perfusion and tortuous collaterals extending across the horizontal raphe between the superior and inferior arcades

Prognosis

At 6 months about 50% of eyes achieve vision of 6/12 or better. Approximately 50% of untreated eyes with BRVO retain 6/12 or better whilst 25% will have vision of <6/60. The two main vision-threatening complications are:

1 Chronic macular oedema is the most common cause of persistent poor visual acuity after BRVO. Patients with visual acuity of 6/12 or worse may benefit from laser photocoagulation, provided the macula is not significantly ischaemic.

2 Neovascularization. Retinal neovascularization occurs in about 60% of eyes with more than 5 disc areas of non-perfusion (Fig. 13.30B) and a third with less than 4 disc areas – about 40% overall. NVE are considerably more common than NVD. NVE usually develops at the border of the triangular sector of ischaemic retina drained by the occluded vein. New vessels usually appear within 6–12 months but may develop at any time; they can lead to recurrent vitreous and pre-retinal haemorrhage, and occasionally tractional retinal detachment.

Fig. 13.30 Long-standing major superior branch vein occlusion. (A) Few residual haemorrhages and cotton wool spots; (B) FA shows extensive capillary non-perfusion that carries a high risk of neovascularization

Further management

Follow-up should be at about 3 months with FA, if vision is compromised, provided retinal haemorrhages have cleared sufficiently. Further management depends on visual acuity and angiographic findings.

• With good macular perfusion and improving visual acuity, no treatment is required.

Page 554

• If macular oedema is associated with good macular perfusion and visual acuity continues to be 6/12 or worse after 3–6 months, laser photocoagulation should be considered. Patients with visual acuity of less than 6/60 or those with symptoms for over a year are unlikely to benefit from laser. Prior to treatment, the FA should be studied carefully to identify leaking areas.

• If macular non-perfusion is present and visual acuity is poor, particularly if FA shows an incomplete foveal avascular zone (FAZ), laser treatment is unlikely to improve vision.

• Subsequent follow-up: 3–6 monthly intervals for up to 2 years, dependent on clinical and FA findings, because of the risk of neovascularization.

Treatment of macular oedema

Page 555

1 Grid laser photocoagulation (50–100 µm, 0.1 second duration and spaced one burn width apart) to produce a gentle reaction in the area of leakage as identified on FA. The burns should extend no closer to the fovea than the edge of the FAZ and be no more peripheral than the major vascular arcades. Care should be taken to avoid treating over intraretinal haemorrhage. It is also very important to identify shunts/collaterals on FA, which do not leak fluorescein, because they must not be treated. Follow-up should take place after three months. If macular oedema persists, re-treatment may be considered although the results are frequently disappointing.

2 Intravitreal triamcinolone (IVT) is as effective as laser in eyes with macular oedema, but may cause cataract and elevation of intraocular pressure. An average of 2 injections of 1 mg are given in the first year.

3 Periocular steroid injection is less invasive, although probably less effective, than the intravitreal route.

4 Intravitreal anti-VEGF agents. Bevacizumab (Avastin) 0.05 mL/1.25 mg) in a regimen of 2–3 injections over 5–6 months has shown promising effects on macular oedema and vision, including in patients resistant to laser.

5 Arteriovenous sheathotomy. Some positive results have been reported both for sheathotomy and for vitrectomy alone; a randomized controlled trial showed similar benefit from IVT.

Treatment of neovascularization

Neovascularization is not normally treated unless vitreous haemorrhage occurs because early treatment does not appear to affect the visual prognosis. If appropriate, scatter laser photocoagulation (200–500 µm size, 0.05–0.1 s duration and spaced one burn width apart) is performed with sufficient energy to achieve a medium reaction covering the entire involved sector (Fig. 13.31) as defined by the colour photograph and FA. A quadrant usually requires 400–500 burns. Follow-up should be after 4–6 weeks. If neovascularization persists re-treatment can be considered, and is usually effective in inducing regression.

Fig. 13.31 Laser photocoagulation for neovascularization following branch vein occlusion

(Courtesy of C Barry)

Impending central retinal vein occlusion

Impending (partial) CRVO is a relatively poorly-defined condition which may resolve or progress to complete obstruction.

1 Presentation is with mild blurring of vision which is characteristically worse on waking and improves during the day.

2 Signs. Mild venous dilatation and tortuosity with a few widely scattered flame-shaped haemorrhages (Fig. 13.32).

3 FA shows increased retinal circulation time.

4 OCT may facilitate a degree of objective monitoring of the macular course, if CMO is present.

5 Treatment is aimed at preventing progression to complete occlusion by correcting any predisposing systemic conditions, avoiding dehydration, and lowering intraocular pressure (e.g. systemic carbonic anhydrase inhibitors) to improve perfusion. Antiplatelet agents may be of benefit, and in some circumstances such as monocularity in an otherwise healthy patient it may be appropriate to consider other options such as anticoagulants, fibrinolytics or haemodilution.

Fig. 13.32 Impending central retinal vein occlusion

Non-ischaemic central retinal vein occlusion

Non-ischaemic CRVO is the most common type, accounting for about 75%.

Diagnosis

1 Presentation is with sudden, unilateral blurred vision.

2 VA is impaired to a moderate-severe degree.

3 Relative afferent pupillary defect (RAPD) is absent or mild (in contrast to ischaemic CRVO).

4 Fundus (Fig. 13.33A)

• Tortuosity and dilatation of all branches of the central retinal vein, dot/blot and flame-shaped haemorrhages, throughout all four quadrants and most numerous in the periphery.

Page 556

• Cotton wool spots, optic disc and macular oedema are common.

5 FA shows delayed arteriovenous transit time, blockage by haemorrhages, good retinal capillary perfusion and late leakage (Fig. 13.33B).

6 OCT is useful in the assessment of CMO, as described for BRVO.

7 Course. Most acute signs resolve over 6–12 months. Residual findings include disc collaterals (Fig. 13.34A), epiretinal gliosis and pigmentary changes at the macula. Conversion to ischaemic CRVO occurs in 15% of cases within 4 months and 34% within 3 years.

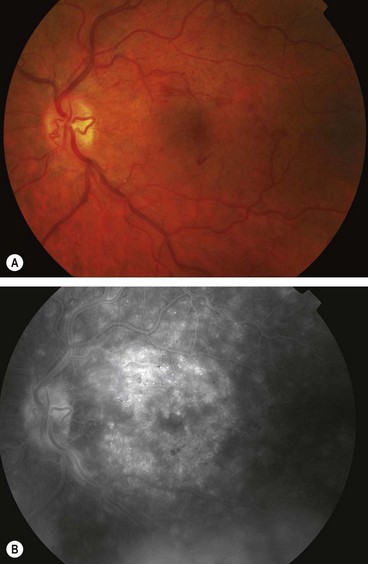

Fig. 13.33 Recent non-ischaemic central retinal vein occlusion. (A) Venous tortuosity and dilatation, and extensive flame-shaped haemorrhages; (B) FA late phase shows blockage by blood, staining of vessel wall but good capillary perfusion

Fig. 13.34 Old non-ischaemic central retinal vein occlusion. (A) Disc collaterals and a few residual retinal haemorrhages; (B) FA late phase shows diffuse hyperfluorescence due to chronic macular oedema

(Courtesy of Moorfields Eye Hospital)

Follow-up

In a clearly non-ischaemic occlusion, initial follow-up should take place after 3 months. Defined arrangements for review of test results should be in place. The patient should be instructed to make contact if the vision deteriorates as this may indicate the development of significant ischaemia. Pain or redness (may indicate neovascular glaucoma and occasionally inflammation without rubeosis) should also be reported. Subsequent review is dependent on the clinical picture, with discharge from follow-up usually at 18–24 months.

Prognosis

In cases that do not subsequently become ischaemic, the prognosis is reasonably good with return of vision to normal or near normal in about 50%. The main cause for poor vision is chronic macular oedema (Fig. 13.34B), which may lead to secondary RPE changes. To a certain extent the prognosis is related to initial visual acuity as follows:

• 6/18 or better, it is likely to remain so.

• 6/24–6/60, the clinical course is variable, and vision may subsequently improve, remain the same, or worsen.

• Worse than 6/60, improvement is unlikely.

Page 557

Treatment of macular oedema

Laser photocoagulation for macular oedema is not beneficial. Some of the following novel therapies have exhibited apparent significant benefit and may play an increasing role in management.

1 Intravitreal steroid. The score study showed an improvement in the vision of 3 or more lines at one year in over 25% of patients treated with an average of 2 injections of 1 mg triamcinolone versus 7% of controls. A trial (GENEVA) of a 0.7 mg dexamethasone sustained-release biodegradeable intravitreal implant (Ozurdex®) showed substantial visual improvement over the first 2 months following a single implantation, though this declined to baseline by 6 months.

2 Intravitreal anti-VEGF agents. Ranibizumab showed a significant visual benefit when used for CMO. Injections were given monthly for 6 months and subsequently less intensively. Several uncontrolled case series suggest that approximately 50% of patients improve 2 or more lines with intravitreal bevacizumab, with 90% of eyes achieving stabilization of vision by 12 months. Pegaptanib also shows promising results.

3 Experimental treatments include chorioretinal anastomosis, vitrectomy with radial optic neurotomy or tissue plasminogen activator (rTPA) local infusion.

Ischaemic central retinal vein occlusion

Ischaemic CRVO is characterized by rapid onset venous obstruction resulting in decreased retinal perfusion, capillary closure and retinal hypoxia. This may lead to profound vascular leakage, rubeosis iridis and raised intraocular pressure. Neovascular glaucoma is one of the most common indications for enucleation in the Western world.

Diagnosis

1 Presentation is with sudden and severe visual impairment.

2 VA is usually CF or worse.

3 RAPD is marked.

4 Fundus (Fig. 13.35A)

• Severe tortuosity and engorgement of all branches of the central retinal vein, extensive deep blot and flame-shaped haemorrhages involving the peripheral retina and posterior pole, severe disc oedema and hyperaemia.

• Cotton wool spots are often prominent.

5 FA shows marked delay in arteriovenous transit time, which is longer than 20 seconds, central masking by retinal haemorrhages, extensive areas of capillary non- perfusion and vessel wall staining (Fig. 13.34B). Greater than 10 disc areas of retinal capillary non-perfusion is associated with an increased risk of neovascularization.

6 OCT may be useful for monitoring the course of CMO, particularly for those cases when treatment is carried out.

7 Electroretinogram (ERG) is depressed.

8 Course. Most acute signs resolve over 9–12 months. Residual findings include disc collaterals and macular epiretinal gliosis and pigmentary changes. Rarely subretinal fibrosis resembling that associated with exudative age-related macular degeneration may develop.

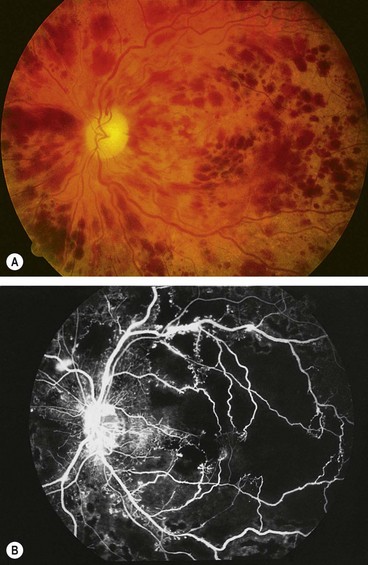

Fig. 13.35 Recent ischaemic central retinal vein occlusion. (A) Extensive flame-shaped and deep blot haemorrhages; (B) FA shows extensive hypofluorescence due to capillary non-perfusion

Prognosis

The prognosis is extremely poor due to macular ischaemia. Rubeosis iridis develops in about 50% of eyes, usually between 2 and 4 months (100-day glaucoma), and there is a high risk of neovascular glaucoma. The development of opticociliary shunts (retinochoroidal collateral veins) may protect the eye from anterior segment neovascularization and probably indicates a dramatic reduction in risk. Retinal neovascularization occurs in about 5% of eyes and is therefore much less common than with BRVO.

Follow up

Page 558

Where possible, patients with ischaemic CRVO should be seen monthly for 6 months to detect the onset of anterior segment neovascularization. Angle neovascularization (Fig. 13.36A), while not synonymous with progression to neovascular glaucoma, is the best clinical predictor of its development because it may occur in the absence of neovascularization at the pupillary margin (Fig. 13.36B). Routine gonioscopy of eyes at risk should therefore be performed and the pupillary margin should be examined prior to mydriasis. Prophylactic PRP is generally not recommended even with marked ischaemia unless iris new vessels develop, though may be considered in patients unlikely to attend scheduled review. Subsequent review should usually be for up to 2 years to detect significant ischaemia and macular oedema.

Fig. 13.36 (A) Neovascularization of an open angle; (B) rubeosis iridis at the pupillary border; (C) panretinal photocoagulation

(Courtesy of E Michael van Buskirk, from Clinical Atlas of Glaucoma, WB Saunders 1986 –fig. A)

Treatment of neovascularization

Laser PRP should be performed without delay in eyes with angle neovascularization or rubeosis iridis. This involves the application of 1500–3000 burns (0.5–0.1 second, spaced one burn width apart), with sufficient energy to produce a moderate reaction in the periphery but avoiding areas of haemorrhage (Fig. 13.36C). Some cases require further treatment if rubeosis fails to regress or continues to progress. Intravitreal anti-VEGF injections may be used adjunctivally in selected cases.

Papillophlebitis

Papillophlebitis (optic disc vasculitis) is an uncommon condition which typically affects otherwise healthy individuals under the age of 50 years. It is thought that the underlying lesion is optic disc swelling with resultant secondary venous congestion rather than venous thrombosis occurring at the level of the lamina cribrosa, as occurs in older patients.

Diagnosis

1 Presentation is with mild blurring of vision typically worst on waking.

2 VA reduction is mild to moderate.

3 RAPD is absent.

4 Fundus (Fig. 13.37)

• Disc oedema, which may be associated with cotton wool spots, is the dominant finding.

• Also present are venous dilatation and tortuosity with variable amount of retinal haemorrhages, usually confined to the peripapillary area and posterior fundus.

Page 559

5 Blind spot is enlarged on perimetry.

6 FA shows mild delay in arteriovenous transit time, hyperfluorescence due to leakage and good capillary perfusion.

7 OCT may show CMO.

Fig. 13.37 Papillophlebitis

Prognosis

The prognosis is excellent despite the lack of treatment. Eighty per cent of cases achieve a final visual acuity of 6/12 or better. The remainder suffer significant and permanent visual impairment as a result of macular oedema.

Hemiretinal vein occlusion

Hemiretinal vein occlusion is generally regarded as a variant of CRVO and may be ischaemic or non-ischaemic. It is less common than both BRVO and CRVO and involves occlusion of the superior or inferior branch of the CRV. A hemispheric occlusion blocks a major branch of the CRV at or near the optic disc. A hemicentral occlusion, which is less common, involves one trunk of a dual-trunked CRV, which persists in the anterior part of the optic nerve head as a congenital variant.

1 Presentation is with a sudden onset altitudinal visual field defect.

2 VA reduction is variable.

3 Fundus shows the features of BRVO, involving the superior or inferior hemisphere (Fig. 13.38A).

4 FA shows masking by haemorrhages, hyperfluorescence due to leakage and variable capillary non-perfusion (Fig. 13.38B).

5 Treatment depends on the severity of retinal ischaemia. Extensive retinal ischaemia carries the risk of neovascular glaucoma and should be managed in the same way as ischaemic CRVO. Macular oedema usually responds poorly to grid laser due to extensive foveal capillary shutdown; newer treatments may be effective in some cases.

Fig. 13.38 (A) Inferior hemiretinal vein occlusion; (B) FA late phase shows extensive hypofluorescence due to capillary non-perfusion and mild perivascular hyperfluorescence

(Courtesy of C Barry)

Systemic treatment in retinal vein occlusion

1 Control of systemic risk factors. This will also ameliorate adverse systemic vascular outcomes, because retinal vein occlusions are associated with cerebro- and cardiovascular causes of death.

2 Antiplatelet therapy with aspirin or an alternative agent should be considered according to systemic risk factors, and might reduce the risk of further venous occlusion.

3 Hormone replacement therapy (HRT). The risk of HRT remains undefined. Most authorities would avoid commencing oestrogen-containing HRT following RVO in women not already taking this.

4 Isovolaemic haemodilution. The results of trials are inconsistent, though benefit has been shown by some.

5 Other. A range of treatment modalities (e.g. plasmapheresis) has been employed to try to improve visual outcomes in RVO, but as yet clear evidence for benefit is lacking.

Retinal arterial occlusive disease

Aetiology

Atherosclerosis-related thrombosis

Atherosclerosis-related thrombosis at the level of the lamina cribrosa is by far the most common underlying cause of central retinal artery occlusion (CRAO), accounting for about 80% of cases. Atherosclerosis is characterized by focal intimal thickening comprising cells of smooth muscle origin, connective tissue and lipid-containing foam cells (Fig. 13.39). The incidence of atherosclerosis increases with age and is accelerated by hypertension, hyperlipidaemia, diabetes, oral contraceptives and hyperhomocysteinaemia. Other risk factors include obesity, tobacco smoking and a sedentary lifestyle.

Fig. 13.39 Atherosclerosis – the arterial lumen is narrowed by lipid-containing cells within the intima

(Courtesy of J Harry and G Misson, from Clinical Ophthalmic Pathology, Butterworth-Heinemann 2001)

Carotid embolism

Page 560

Embolism is another key cause of retinal arterial compromise, including transient ischaemia. The origin of emboli is most commonly an atheromatous plaque at the carotid bifurcation, and less often the aortic arch and elsewhere. Since the ophthalmic artery is the first branch of the internal carotid artery, embolic material from the heart and carotid arteries has a fairly direct route to the eye. Carotid stenosis involves atheromatous narrowing, often associated with ulceration, at the bifurcation of the common carotid artery. The irregularity of the vessel wall may act as a source of cerebral and retinal emboli of the following types:

1 Cholesterol emboli (Hollenhorst plaques) appear as intermittent showers of minute, bright, refractile, golden to yellow-orange crystals, often located at arteriolar bifurcations (Fig. 13.40A). They rarely cause significant obstruction to the retinal arterioles and are frequently asymptomatic.

Page 561

2 Calcific emboli may originate from atheromatous plaques in the ascending aorta or carotid arteries, as well as from calcified heart valves. They are usually single, white, non-scintillating and often on or close to the disc (Fig. 13.40B). When located on the disc itself, they may be easily overlooked as they tend to merge with the disc. They may cause permanent occlusion of the central retinal artery or one of its main branches.

3 Fibrin-platelet emboli are dull grey, elongated particles which are usually multiple (Fig. 13.40C) and occasionally fill the entire lumen (Fig. 13.40D). They may cause a retinal transient ischaemic attack (TIA), with resultant amaurosis fugax, and occasionally complete obstruction.

Fig. 13.40 Emboli arising from the carotid bifurcation. (A) Hollenhorst plaque; (B) calcific embolus at the disc; (C) fibrin-platelet emboli; (D) fibrin-platelet emboli extending from the disc to involve three branches

(Courtesy of L Merin – fig. A; C Barry – fig. B)

Uncommon causes

1 Giant cell (temporal) arteritis (GCA) is a common cause of anterior ischaemic optic neuropathy but isolated CRAO is rare.

2 Cardiac embolism from the heart and its valves may consist of calcific material, vegetations in bacterial endocarditis, thrombus from the left side of the heart and rarely myxomatous material from an atrial myxoma.

3 Periarteritis associated with dermatomyositis, systemic lupus erythematosus, polyarteritis nodosa, Wegener granulomatosis and Behçet syndrome may occasionally be responsible for branch retinal artery occlusion (BRAO), which may be multiple and bilateral (Fig. 13.41A and B).

4 Thrombophilic disorders that may be associated with retinal artery occlusion, especially in younger individuals, include hyperhomocysteinaemia, antiphospholipid antibody syndrome and inherited defects of natural anticoagulants.

5 Sickling haemoglobinopathies.

6 Retinal migraine may very rarely be responsible for retinal artery occlusion in young individuals. However, the diagnosis should be made only after other more common causes have been excluded.

7 Susac syndrome (retinocochleocerebral vasculopathy) is a microangiopathy characterized by the triad of retinal artery occlusion, sensorineural deafness and encephalopathy.

Fig. 13.41 (A) and (B) Multiple bilateral branch retinal artery occlusions in polyarteritis nodosa

Systemic assessment

All patients

Many patients will have a history of vascular disease; enquiry should be made about smoking.

1 Symptoms of GCA such as headache, jaw claudication, scalp tenderness, limb girdle pain, weight loss and existing polymyalgia rheumatica (see Ch. 19).

2 Pulse, particularly to detect atrial fibrillation.

3 Blood pressure.

4 Cardiac auscultation.

5 Carotid examination.

a Palpation of severe or complete stenosis is associated with a diminished or absent carotid pulse.

b Auscultation over a partial stenosis gives rise to a bruit, best detected with the bell of the stethoscope. It is important to perform auscultation along the entire length of the artery and to ask the patient to hold his breath. The most ominous bruit is one that is high-pitched and soft because it indicates tight stenosis. When the lumen is narrowed by 90% or more, the bruit disappears.

6 ECG to detect arrhythmia and other cardiac disease.

7 Erythrocyte sedimentation rate and C-reactive protein to detect the remote possibility of GCA.

8 Other blood tests include FBC, random glucose, lipids, urea and electrolytes.

9 Carotid duplex scanning is a non-invasive screening test involving a combination of high-resolution real-time ultrasonography with Doppler flow analysis. If significant stenosis is present, surgical management may be considered.

Page 562

Selected patients

The following additional tests can be considered on a targeted basis in some patients, particularly if younger and with no known cardiovascular risk factors.

1 Further carotid imaging (see Ch. 19)

2 Cranial MRI or CT may be indicated to rule out intracranial or orbital pathology; may be required prior to fibrinolysis.

3 Echocardiography. Usually performed if there is a specific indication such as a history of rheumatoid fever, known cardiac valvular disease, or intravenous drug use.

4 Chest X-ray. Sarcoidosis, tuberculosis, left ventricular hypertrophy in hypertension.

5 24-hour ECG (Holter monitor) to exclude intermittent arrhythmia.

6 Additional blood tests

a Fasting plasma homocysteine level to exclude hyperhomocysteinaemia.

b ’Thrombophilia screen’. By convention refers to heritable thrombophilias, which have predominantly been implicated in venous rather than arterial thromboses.

c Plasma protein electrophoresis to detect dysproteinaemias such as multiple myeloma.

d Thyroid function tests, especially if atrial fibrillation is present; may be associated with dyslipidaemia.

e Autoantibodies. Rheumatoid factor, anti-nuclear antibody, anti-DNA antibody.

f Blood cultures.

Amaurosis fugax

Amaurosis fugax is characterized by painless transient monocular loss of vision, often described as a curtain coming down over the eye, usually from top to bottom, but occasionally vice versa; it is common for patients to be unaware of whether transient unilateral visual loss affects one eye or the ipsilateral hemifield (cerebral ischaemia) of both. Visual loss, which may be complete, usually lasts a few minutes. Recovery is in the same pattern as the initial loss, although usually more gradual. Frequency of attacks may vary from several times a day to once every few months. The attacks may sometimes be accompanied by ipsilateral cerebral TIA, with contralateral neurological features. Investigation and systemic management is carried out as for persistent arterial occlusion.

Branch retinal artery occlusion

Diagnosis

1 Presentation is with sudden and profound painless altitudinal or sectoral visual field loss. It can sometimes go unnoticed, particularly if central vision is spared.

2 VA is variable.

3 RAPD is often present.

4 Fundus (Fig. 13.42 and 13.43).

• Narrowing (attenuation) of arteries and veins with sludging and segmentation of the blood column (‘cattle trucking’/’boxcarring’).

Page 563

• Cloudy white oedematous (‘ground glass’) retina corresponding to the area of ischaemia.

• One or more emboli may be seen, especially at bifurcation points including the point of occlusion.

• Signs may sometimes be subtle.

5 FA shows delay in arterial filling and hypofluorescence of the involved segment due to blockage of background fluorescence by retinal swelling (Fig. 13.43B).

Fig. 13.42 Embolic inferotemporal branch retinal artery occlusion

(Courtesy of P Gili)

Fig. 13.43 (A) Superior branch retinal artery occlusion due an embolus at the disc; (B) FA shows lack of arterial filling of the involved artery and hypofluorescence of the involved segment due to blockage of background fluorescence by retinal swelling

(Courtesy of C Barry)

Page 564

Follow-up

A single follow-up assessment in 3 months may be warranted to review the appearance of the fundus and provide advice on prognosis. This also provides an opportunity for a systemic management review, to ensure care by an appropriate specialist team was implemented.

Prognosis

In patients where central vision is severely compromised, the prognosis is commonly poor unless the obstruction is relieved within a few hours (see below). The visual field defect is likely to be permanent and the affected artery remains attenuated. Occasionally, recanalization of the obstructed artery may leave subtle or absent ophthalmoscopic signs.

Central retinal artery occlusion

Diagnosis

1 Presentation is with sudden and profound loss of vision, painless except in GCA.

2 VA is severely reduced except when a portion of the papillomacular bundle is supplied by a cilioretinal artery, when central vision may be preserved. No perception of light usually indicates either GCA, or ophthalmic artery occlusion affecting both the retinal and choroidal circulation.

3 RAPD is profound, sometimes total (amaurotic pupil).

4 Fundus shows similar changes to BRAO but more extensive (Fig. 13.44).

• The orange reflex from the intact choroid stands out at the thin foveola, in contrast to the surrounding pale retina, giving rise to the ‘cherry-red spot’ appearance.

• The peripapillary retina may appear especially swollen and opaque

• An occasional small haemorrhage is not unusual.

• Emboli are visible in 20%, when Nd:YAG embolysis may be considered.

• In eyes with a cilioretinal artery part of the macula will remain of normal colour (Fig. 13.45A).

• Retinal signs can sometimes be subtle; note that retinal oedema may take several hours to develop.

5 FA shows delay in arterial filling and masking of background choroidal fluorescence by retinal swelling. However, a patent cilioretinal artery will fill during the early phase (Fig. 13.45B).

6 Electroretinography may be helpful to establish the diagnosis if in doubt, particularly to distinguish from optic nerve disease, typically when signs are subtle; a diminished b-wave is present.

Fig. 13.44 Recent central retinal artery occlusion with a ‘cherry-red’ spot at the macula

(Courtesy of L Merin)

Fig. 13.45 (A) Central retinal artery occlusion with a patent cilioretinal artery; (B) FA shows blockage of background fluorescence by retinal swelling but normal perfusion at the posterior pole

(Courtesy of L Merin)

Follow-up

The patient should be seen by an ophthalmologist in 3–4 weeks and again a month later in order to detect incipient neovascularization, particularly of the anterior segment. In the minority of cases where referral to a specialist vascular team is not indicated, it should be ensured that the results of systemic investigations have been reviewed and necessary systemic treatment initiated.

Prognosis

The prognosis is poor due to retinal infarction. Over a few days to weeks the retinal cloudiness and ‘cherry-red spot’ gradually disappear although the arteries remain attenuated. Later signs include optic atrophy (Fig. 13.46A), vessel sheathing, and patchy inner retinal atrophy and RPE changes. Histology shows atrophy of the inner retina and ganglion cells (Fig. 13.46B). Rubeosis iridis may occur in up to about 1 in 5, typically earlier than in CRVO (4–5 weeks compared with 3 months), and along with very poor vision may indicate ophthalmic artery occlusion. About 2% of eyes with CRAO develop retinal or disc neovascularization. PRP should be performed as for ischaemic CRVO, and intravitreal injection of vascular endothelial growth factor (VEGF) inhibitor might be considered.

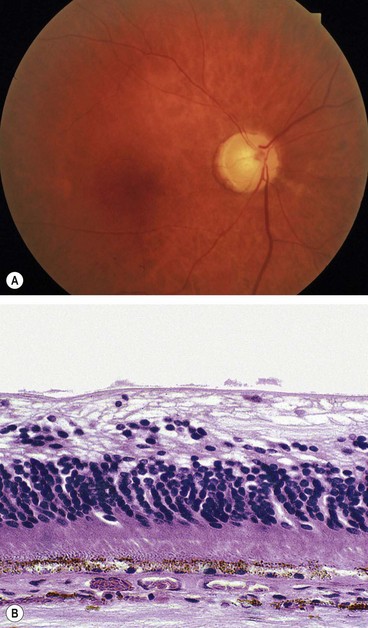

Fig. 13.46 Old central retinal artery occlusion. (A) Vascular attenuation and optic atrophy; (B) histology shows atrophy of the inner retina and ganglion cells with preservation of a few bipolar cells

(Courtesy of J Harry – fig. B)

Cilioretinal artery occlusion

A cilioretinal artery, present in 20% of the population, arises from the posterior ciliary circulation but supplies the retina, commonly in the area of the macula and papillomacular bundle.

1 Isolated (Fig. 13.47A) typically affects young patients with an associated systemic vasculitis.

2 Combined with CRVO (Fig. 13.47B) has a similar prognosis to non-ischaemic CRVO.

3 Combined with anterior ischaemic optic neuropathy (Fig. 13.47C) typically affects patients with giant cell arteritis and carries a very poor prognosis.

4 Presentation is with acute severe loss of central vision.

5 Signs. Cloudiness localized to that part of the retina normally perfused by the vessel.

6 FA shows a corresponding filling defect (Fig. 13.47D).

Fig. 13.47 Cilioretinal artery occlusion. (A) Isolated; (B) combined with central retinal vein occlusion; (C) combined with anterior ischaemic optic neuropathy; (D) FA shows hypofluorescence at the macula due to lack of filling and masking by retinal swelling

(Courtesy of S Milewski – fig. D)

Treatment of acute retinal artery occlusion

Retinal artery occlusion is an emergency because it causes irreversible visual loss unless the retinal circulation is re-established prior to the development of retinal infarction. It appears that the prognosis for occlusions caused by calcific emboli is worse than those resulting from either cholesterol or platelet emboli. Theoretically, timely dislodgement of thrombus or emboli may ameliorate subsequent visual loss. The following treatments may be tried in patients with occlusions of less than 24–48 hours duration at presentation, though evidence of benefit is limited. The number of measures tried and the intensity of treatment should be tailored to the individual (more aggressive if lower duration of occlusion, good general health, monocularity; more aggressive systemic treatment may be avoided in the frail elderly); options, including the lack of evidence for clear benefit and the risks, should be discussed before use.

1 Adoption of a supine posture might improve ocular perfusion.

2 Ocular massage using a three-mirror contact lens (allows direct artery visualization) for approximately 10 seconds, aiming to achieve central retinal artery pulsation or cessation of flow (for BRAO), followed by 5 seconds of release. The aim is to mechanically collapse the arterial lumen and cause prompt changes in arterial flow. Self-massage through closed eyelids can be continued by the patient.

3 Anterior chamber paracentesis should be carried out in most cases. Instil povidone-iodine 5% and topical antibiotic prior to the procedure and a short course of antibiotic afterwards.

Page 565

4 Topical apraclonidine 1%, timolol 0.5% and intravenous acetazolamide 500 mg to achieve a more sustained lowering of intraocular pressure.

5 Sublingual isosorbide dinitrate to induce vasodilation.

6 ‘Rebreathing’ into a paper bag in order to elevate blood carbon dioxide and respiratory acidosis has been advocated, as this may promote vasodilation.

7 Breathing a high oxygen (95%) and carbon dioxide (5%) mixture, ‘carbogen’, has been advocated for a possible dual effect of retarding ischaemia and vasodilation.

8 Hyperosmotic agents. Mannitol or glycerol have been used for their possibly more rapid IOP-lowering effect as well as increased intravascular volume.

9 Transluminal Nd:YAG laser embolysis has been advocated for BRAO or CRAO in which an occluding embolus is visible; shots of 0.5–1.0 mJ or higher are applied directly to the embolus using a fundus contact lens. Embolectomy has been said to occur if the embolus is ejected into the vitreous via a hole in the arteriole. The main complication is vitreous haemorrhage.

10 Thrombolysis. Extrapolating from successful treatment of stroke and myocardial infarction, various strategies have been used to deliver thrombolytic agents to the ophthalmic artery, including local arterial (internal carotid and ophthalmic) and intravenous infusion. Many studies suggest that this may improve the visual outcomes in CRAO, with a low risk of serious complications. However, no benefit over conservative treatment has been conclusively demonstrated, though there is evidence that improvement is more likely if commenced within the first 6 hours of presentation.

Systemic prophylaxis following retinal arterial occlusion

The risk of stroke is relatively high in the first few days following retinal artery occlusion or amaurosis fugax, and ‘fast-track’ referral to a specialist stroke clinic is advisable.

Page 566

1 General risk factors as discussed above should be addressed and smoking should be discontinued. Urgent referral to an appropriate physician is mandatory for significant cardiac arrhythmia.

2 Antiplatelet therapy is commenced provided there are no contraindications; an immediate loading dose of 600 mg may be given; alternative/additional agents include dipyridamole and clopidogrel. If fibrinolysis (see above) is being considered, this should be discussed with a physician prior to starting antiplatelet treatment.

3 Oral anticoagulation (e.g. warfarin) may be prescribed for some patients, particularly those with atrial fibrillation.

4 Carotid endarterectomy may be indicated in patients with symptomatic stenosis greater than 70%.

Asymptomatic retinal embolus

It is not uncommon to identify a retinal embolus on routine examination of an asymptomatic older patient. This indicates a substantially increased risk of stroke and ischaemic heart disease, and management should consist of evaluation and treatment of risk factors discussed above. A higher threshold for carotid surgery is appropriate.

Ocular ischaemic syndrome

Pathogenesis

Ocular ischaemic syndrome (OIS) is an uncommon condition which is the result of chronic ocular hypoperfusion secondary to severe ipsilateral atherosclerotic carotid stenosis of more than 90%, resulting in a 50% reduction of ipsilateral perfusion pressure. It typically affects patients during the 7th decade and may be associated with diabetes, hypertension, ischaemic heart disease and cerebrovascular disease. The male : female ratio is about 2 : 1. Five year mortality is in the order of 40%, most frequently from cardiac disease. Patients with ocular ischaemic syndrome may also give a history of amaurosis fugax due to retinal embolism.

Diagnosis

OIS is unilateral in 80% of cases. It affects both anterior and posterior segments. The signs are variable and may be subtle such that the condition is missed or misdiagnosed.

1 Presentation is usually with gradual loss of vision over several weeks or months although occasionally visual loss may be sudden or fleeting (amaurosis fugax). Ocular and periocular pain may also be present (40%). Patients may notice unusually persistent after-images, or worsening of vision with sudden exposure to bright light (‘bright light amaurosis fugax’), with slow adaptation. The prognosis for vision is often very poor, though patients with better acuity at presentation are more likely to retain this. About 25% will deteriorate to ‘light perception’ by the end of 1 year.

2 Anterior segment

• Diffuse episcleral injection and corneal oedema.

• Aqueous flare with few if any cells (ischaemic pseudoiritis).

• Iris atrophy and a mid-dilated and poorly reacting pupil.

• Rubeosis iridis is common, developing in up to 90%, and often progresses to neovascular glaucoma; the IOP may remain low due to poor ocular perfusion.

• Cataract in advanced cases.

3 Fundus

• Venous dilatation, arteriolar narrowing, and haemorrhages and occasionally disc oedema (Fig. 13.48A) and cotton wool spots.

• Proliferative retinopathy with NVD and occasionally NVE.

• Spontaneous arterial pulsation, most pronounced near the optic disc, is present in most cases or may be easily induced by exerting gentle pressure on the globe (digital ophthalmodynamometry).

• Macular oedema can occur.

• In diabetic patients retinopathy may be more severe ipsilateral to carotid stenosis.

4 FA

• Early phase shows delayed choroidal filling and prolonged arteriovenous transit time (Fig. 13.48B and C).

• Late phase shows disc and perivascular hyperfluorescence, and leakage at the posterior pole (Fig. 13.48D).

5 Carotid imaging may involve duplex scanning, digital subtraction angiography, MR or CT angiography.

Fig. 13.48 Ocular ischaemic syndrome. (A) Venous dilatation, arteriolar narrowing, a few scattered flame-shaped haemorrhages and hard exudates, and disc oedema; (B and C) FA early phase shows delayed choroidal filling and prolonged arteriovenous transit; (D) FA late phase shows disc and perivascular hyperfluorescence, and spotty hyperfluorescence at the posterior pole due to leakage

(Courtesy of Moorfields Eye Hospital)

Management

1 Anterior segment manifestations are treated with topical steroids and mydriatics.

2 Neovascular glaucoma may be treated medically or surgically (see Ch. 10).

3 Proliferative retinopathy can be treated with PRP although the outcome is considerably less certain than in proliferative diabetic retinopathy.

4 Macular oedema may respond to intravitreal steroid or anti-VEGF agents, or to carotid surgery.

5 Carotid surgery. Endarterectomy or stenting may be performed to reduce the risk of stroke, may be beneficial for proliferative retinopathy and neovascular glaucoma, and may help to stabilize vision. Endarterectomy cannot be performed where there is total obstruction; extracranial-intracranial arterial bypass surgery is sometimes carried out. It should be noted that an increase in ocular perfusion following surgery can sometimes be associated with both a rise in intraocular pressure and exacerbation of neovascularization.

6 Investigation and management of cardiovascular risk factors in conjunction with the appropriate medical specialists is essential. OIS is occasionally the only manifestation of marked systemic vascular disease. Full investigation should be carried out, broadly similar to that for retinal arterial occlusion.

Differential diagnosis

Page 567

1 Non-ischaemic CRVO also exhibits unilateral retinal haemorrhages, venous dilatation and cotton wool spots. However, haemorrhages are more numerous and mainly flame-shaped, and disc oedema is often present. Ophthalmodynamometry may help in distinguishing OIS from CRVO, as the arterial pressure is normal or high in the latter.

2 Diabetic retinopathy also features dot and blot retinal haemorrhages, venous tortuosity and proliferative retinopathy. However, it is usually bilateral and hard exudates are present.

3 Hypertensive retinopathy is also characterized by arteriolar attenuation and focal constriction, haemorrhages and cotton wool spots. However, it is invariably bilateral and venous changes are absent.

Hypertensive disease

Retinopathy

Retinopathy consists of a spectrum of retinal vascular changes that are pathologically related to both transient and persistent microvascular damage from elevated blood pressure. The primary response of the retinal arterioles to systemic hypertension is narrowing (vasoconstriction). However, the degree of narrowing is dependent on the amount of pre-existing replacement fibrosis (involutional sclerosis). For this reason, hypertensive narrowing is seen in its pure form only in young individuals. In older patients, rigidity of retinal arterioles due to involutional sclerosis prevents the same degree of narrowing seen in young individuals. In sustained hypertension the inner blood–retinal barrier is disrupted in localized areas, with increased vascular permeability.

Signs

1 Arteriolar narrowing may be focal (Fig. 13.49A) or generalized (Fig. 13.49B). Ophthalmoscopic diagnosis of generalized narrowing is difficult, although the presence of focal narrowing makes it highly probable that blood pressure is raised. It appears that the presence of arteriolar narrowing is a risk factor for coronary disease in women.

2 Cotton wool spots develop in severe hypertension (Fig. 13.50A).

3 Vascular leakage leads to flame-shaped retinal haemorrhages and retinal oedema. Chronic retinal oedema may result in the deposition of hard exudates around the fovea in the layer of Henle with a macular star configuration (Fig. 13.50B). Swelling of the optic nerve head is the hallmark of malignant (accelerated) hypertension.

Page 568

4 Arteriolosclerosis involves thickening of the vessel wall characterized histologically by intimal hyalinization, medial hypertrophy and endothelial hyperplasia (Fig. 13.51A). The most important clinical sign is the presence of changes at arteriovenous crossings (AV nipping – Fig. 13.51B); although not necessarily indicative of the severity of hypertension, their presence makes it probable that hypertension has been present for many years. Mild changes at arteriovenous crossings are seen in patients with involutional sclerosis in the absence of hypertension. The presence of generalized retinal arteriolar narrowing and possibly arteriovenous nipping are related to previously elevated blood pressure, independent of current blood pressure level. The grading of arteriolosclerosis is shown as follows (Fig. 13.52):

Grade 1: subtle broadening of the arteriolar light reflex, mild generalized arteriolar attenuation, particularly of small branches, and vein concealment.

Grade 2: obvious broadening of the arteriolar light reflex and deflection of veins at arteriovenous crossings (Salus sign).

Grade 3:

• ‘Copper-wiring’ of arterioles (Fig. 13.51C).

• Banking of veins distal to arteriovenous crossings (Bonnet sign).

• Tapering of veins on both sides of the crossings (Gunn sign) and right-angled deflection of veins.

Grade 4: ‘Silver-wiring’ of arterioles associated with grade 3 changes.

Fig. 13.49 Hypertensive retinopathy. (A) Focal arteriolar attenuation; (B) generalized arteriolar attenuation

Fig. 13.50 Severe hypertensive retinopathy. (A) Cotton wool spots, a few flame-shaped haemorrhages and arteriolosclerosis; (B) cotton wool spots, macular star and mild disc swelling

(Courtesy of P Saine – fig. A)

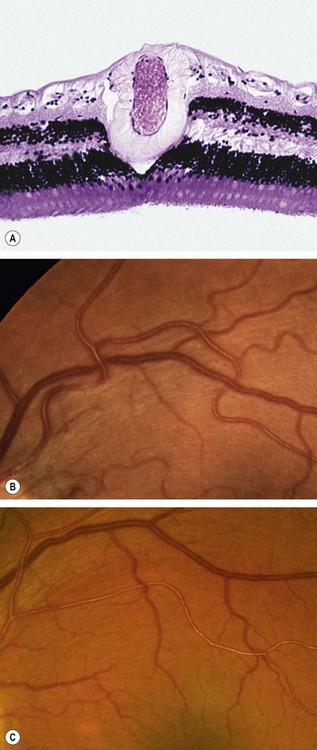

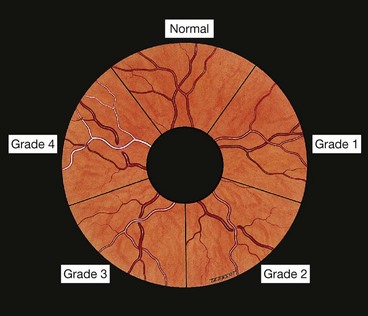

Fig. 13.51 Arteriolosclerosis. (A) Histology shows a thickened vessel wall and narrowing of the lumen; (B) arteriovenous nipping; (C) ‘copper-wiring’

(Courtesy of J Harry – fig. A).

Fig. 13.52 Grading of retinal arteriolosclerosis

Choroidopathy

Choroidopathy is rare but may occur as the result of an acute hypertensive crisis (accelerated hypertension) in young adults.

Page 569

1 Elschnig spots are small black spots surrounded by yellow halos (Fig. 13.53A) which represent focal choroidal infarcts.

2 Siegrist streaks are flecks arranged linearly along choroidal vessels (Fig. 13.53B) indicative of fibrinoid necrosis associated with malignant hypertension (Fig. 13.53C).

3 Exudative retinal detachment, sometimes bilateral, may occur in severe acute hypertension such as that associated with toxaemia of pregnancy.

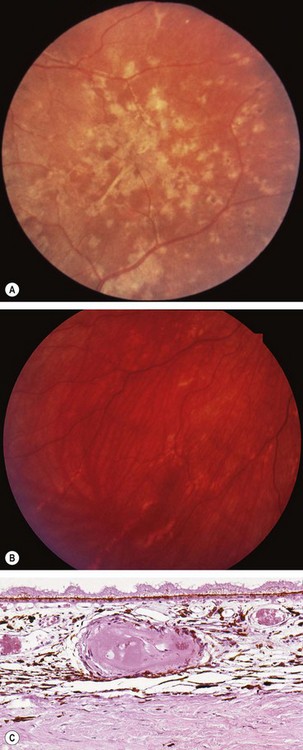

Fig. 13.53 Hypertensive choroidopathy. (A) Elschnig spots; (B) Siegrist lines; (C) fibrinoid necrosis in a choroidal arteriole in malignant hypertension

(Courtesy of J Harry – fig. C)

Sickle-cell retinopathy

Sickling haemoglobinopathies

Sickling haemoglobinopathies are caused by one or more abnormal haemoglobins which induce the red blood cell to adopt an anomalous shape (Fig. 13.54) under conditions of hypoxia and acidosis. Because these deformed red blood cells are more rigid than healthy cells, they may become impacted in and obstruct small blood vessels. The sickling disorders in which the mutant haemoglobins S and C are inherited as alleles of normal haemoglobin A have important ocular manifestations. These abnormal haemoglobins may occur in combination with normal haemoglobin A or in association with each other as indicated below.

1 SS (sickle-cell disease, sickle-cell anaemia) affects 0.4% of black Americans and is caused by a point mutation on the beta-globulin gene. The disease is characterized by severe chronic haemolytic anaemia and periodic potentially fatal, crises due to vaso-occlusive disease involving most organs, resulting in liver necrosis, painful crises (largely bone marrow infarcts), abdominal pain, acute chest syndrome and CNS symptoms. Despite the severity of systemic manifestations ocular complications are usually mild and asymptomatic.

2 AS (sickle-cell trait) is present in about 10% of black Americans. It is the mildest form and usually requires severe hypoxia or other abnormal conditions to produce sickling.

3 SC (sickle-cell C disease) is present in 0.2% of black Americans. It is characterized by haemolytic anaemia and infarctive crises that are less severe than in SS disease but may be associated with severe retinopathy.

Page 570

4 SThal (sickle-cell thalassaemia) is characterized by mild anaemia but may be associated with severe retinopathy.

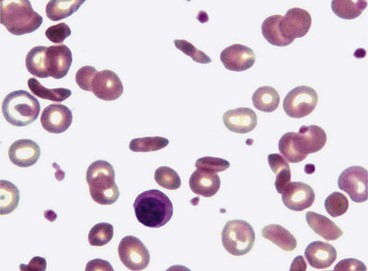

Fig. 13.54 Several sickle red cells and one nucleated red cell in a peripheral smear of a patient with homozygous (HbSS) sickle cell anaemia

(Courtesy of N Bienz)

Proliferative retinopathy

Diagnosis

The development of proliferative retinopathy is usually insidious, and patients remain asymptomatic unless vitreous haemorrhage or retinal detachment occurs.

Stage 1 shows peripheral arteriolar occlusion and ischaemia.

Stage 2 is characterized by peripheral arteriovenous anastomoses of dilated pre-existing capillary channels (Fig. 13.55A).

Stage 3

• Sprouting of new vessels from the anastomoses; these have a ‘sea-fan’ configuration and are usually fed by a single arteriole and drained by a single vein (Fig. 13.55B and see Fig. 13.56A).

• About 30–40% of sea-fans involute spontaneously as a result of auto-infarction and appear as greyish fibrovascular lesions (Fig. 13.55C). Involution most frequently occurs about 2 years after the development of retinopathy.

Stage 4. The neovascular tufts may continue to proliferate and bleed into the vitreous (Fig. 13.55D).

Stage 5 is characterized by extensive fibrovascular proliferation (Fig. 13.55E) and retinal detachment (Fig. 13.55F).

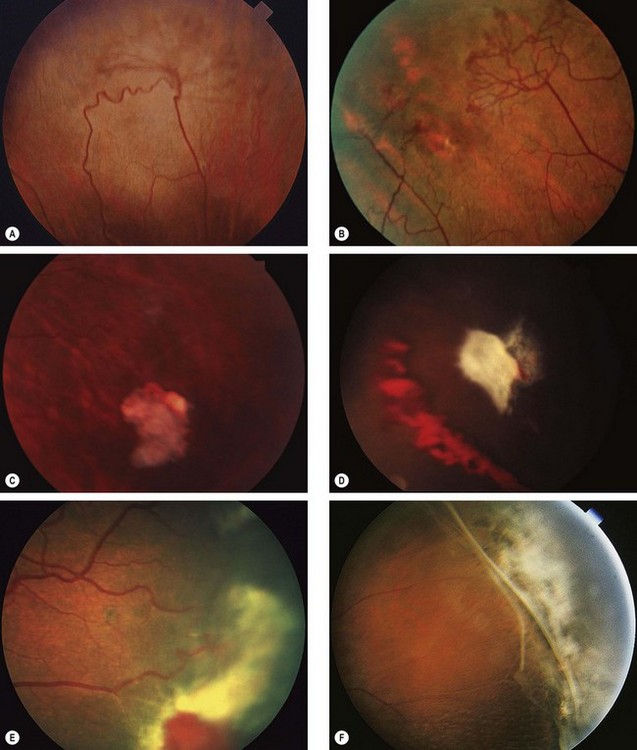

Fig. 13.55 Progression of proliferative sickle-cell retinopathy. (A) Peripheral arteriovenous anastomosis; (B) ‘sea-fan’ neovascularization; (C) spontaneous involution of a neovascular tuft; (D) haemorrhage due to traction; (E) extensive fibrovascular proliferation; (F) peripheral retinal detachment

(Courtesy of K Nischal – fig. A; R Marsh – figs B–F)

Fig. 13.56 (A) Proliferative sickle-cell retinopathy stage 3; (B) FA early phase shows filling of new vessels (sea-fans) and extensive peripheral retinal capillary non-perfusion; (C) late phase shows leakage from new vessels

FA in stage 3 shows filling of sea-fans and peripheral capillary non-perfusion (Fig. 13.56B) followed by extensive hyperfluorescence due to leakage from new vessels (Fig. 13.56C).

Treatment

Page 571

Page 572

Treatment is not required in most cases because new vessels tend to auto-infarct and involute spontaneously without treatment. PRP probably does not alter the natural history. Occasionally vitreoretinal surgery may be required for tractional retinal detachment and/or persistent vitreous haemorrhage.

Differential diagnosis of peripheral retinal neovascularization

1 Vascular disease with ischaemia

• Proliferative diabetic retinopathy.

• Branch retinal vein occlusion.

• Ocular ischaemic syndrome.

• Sickling haemoglobinopathies.

• Retinopathy of prematurity.

• Familial exudative vitreoretinopathy.

• Chronic myeloid leukaemia.

• Encircling buckle.

2 Inflammatory disease with possible ischaemia

• Sarcoidosis.

• Retinal vasculitis.

• Intermediate uveitis.

• Eales disease.

• Acute retinal necrosis.

3 Miscellaneous

• Incontinentia pigmenti.

• Autosomal dominant vitreoretinochoroidopathy.

• Long-standing retinal detachment.

Non-proliferative retinopathy

Asymptomatic lesions

1 Venous tortuosity is one of the first ocular signs of sickling and is due to peripheral arteriovenous shunts.

2 ‘Silver-wiring’ of arterioles in the peripheral retina which represents previously occluded vessels.

3 ‘Salmon patches’ are pink, preretinal (Fig. 13.57A) or superficial intraretinal haemorrhages at the equator, which lie adjacent to arterioles and usually resolve without sequelae.

4 ‘Black sunbursts’ are patches of peripheral RPE hyperplasia (Fig. 13.57B).

5 Macular depression sign is an oval depression of the bright central macular reflex due to atrophy and thinning of the sensory retina.

6 Peripheral retinal holes and areas of whitening similar to ‘white-without-pressure’ are occasionally seen (Fig. 13.57C).

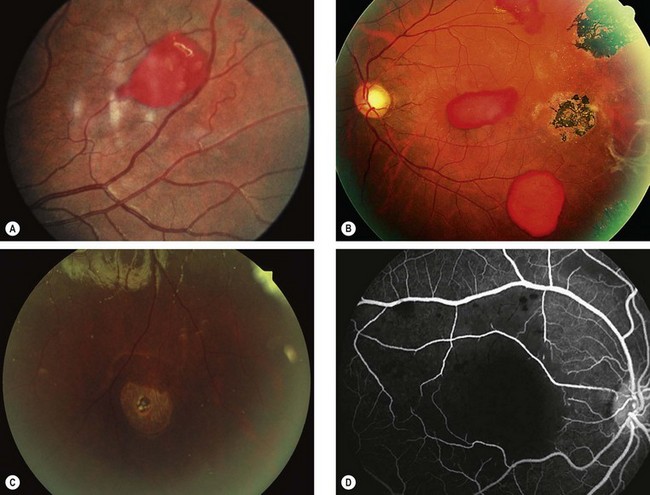

Fig. 13.57 Non-proliferative sickle-cell retinopathy. (A) Preretinal haemorrhage (‘salmon patch’); (B) RPE hyperplasia (‘black sunburst’) and preretinal haemorrhages; (C) retinal hole and an area of whitening superiorly; (D) FA shows macular ischaemia

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997 – fig. B)

Symptomatic lesions

1 Macular arteriolar occlusion occurs in about 30% of patients (Fig. 13.57D).

2 Acute CRAO is rare.

3 Retinal vein occlusion is uncommon.

4 Choroidal vascular occlusion may occasionally be seen, particularly in children.

5 Angioid streaks occur in a minority of patients.

Anterior segment features

Page 573

1 Conjunctival lesions are characterized by isolated dark red vascular anomalies shaped like commas or cork screws. They involve small calibre vessels and are most often located inferiorly.

2 Iris lesions consist of circumscribed areas of ischaemic atrophy, usually at the pupillary edge and extending to the collarette. Rubeosis may occasionally be seen.

Retinopathy of prematurity

Pathogenesis

Retinopathy of prematurity (ROP) is a proliferative retinopathy affecting premature infants of very low birth weight, who have often been exposed to high ambient oxygen concentrations. The retina is unique among tissues in that it has no blood vessels until the fourth month of gestation, at which time vascular complexes emanating from the hyaloid vessels at the optic disc grow towards the periphery. These vessels reach the nasal periphery after 8 months of gestation, but do not reach the temporal periphery until about 1 month after delivery (Fig. 13.58). The incompletely vascularized retina is particularly susceptible to oxygen damage in the premature infant. A model of ROP suggests that the avascular retina produces VEGF (vascular endothelial growth factor) which in utero is the stimulus for vessel migration in the developing retina. With premature birth the production of VEGF is down-regulated by the relative hyperoxia and vessel migration is halted. Subsequently the increased metabolic demand of the growing eye allows excessive VEGF production which leads to the neovascular complications of ROP.

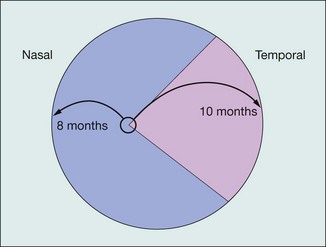

Fig. 13.58 Timing of vascularization of the peripheral retina

Active disease

Location

For the purpose of defining the anteroposterior location of ROP, three concentric zones centred on the optic disc are described (Fig. 13.59).

Page 574

Zone 1 is bounded by an imaginary circle the radius of which is twice the distance from the disc to the centre of the macula.

Zone 2 extends concentrically from the edge of zone 1; its radius extends from the centre of the disc to the nasal ora serrata.

Zone 3 consists of a residual temporal crescent anterior to zone 2.

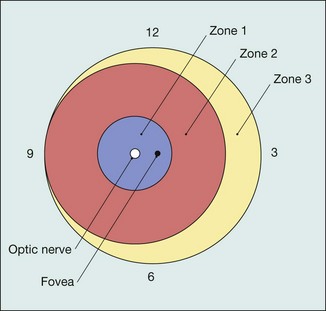

Fig. 13.59 Grading of retinopathy of prematurity according to location

The approximate temporal extent of zone 1 can be determined by using a 25 or 28 D condensing lens. By placing the nasal edge of the optic disc at one edge of the field of view, the limit of zone 1 is at the temporal field of view.

Extent

Extent of involvement is determined by the number of clock hours of retina involved (30° sectors).

Staging

The following five stages are used to describe the abnormal vascular response at the junction of immature avascular peripheral retina and vascularized posterior retina. Because more than one ROP stage may be present in the same eye, staging for the eye as a whole is determined by the most severe manifestation.

Stage 1 (demarcation line) is a thin, flat, tortuous, grey-white line running roughly parallel with the ora serrata. It is more prominent in the temporal periphery. There is abnormal branching or ‘arcading’ of vessels leading up to the line (Fig. 13.60A).

Stage 2 (ridge) arises in the region of the demarcation line, has height and width, and extends above the plane of the retina. Blood vessels enter the ridge and small isolated neovascular tufts (‘popcorn’) may be seen posterior to it (Fig. 13.60B).

Stage 3 (extraretinal fibrovascular proliferation) extends from the ridge into the vitreous (Fig. 13.60C). It is continuous with the posterior aspect of the ridge, causing a ragged appearance as the proliferation becomes more extensive. The severity of stage 3 can be subdivided into mild, moderate and severe depending on the extent of extraretinal fibrous tissue infiltrating the vitreous. The highest incidence of this stage is around the post-conceptual age of 35 weeks.

Stage 4 (partial retinal detachment) is divided into extrafoveal (stage 4A – Fig. 13.60D) and foveal (Stage 4B). The detachment is generally concave and circumferentially orientated. In progressive cases the fibrous tissue continues to contract and the detachment increases in height and extends anteriorly and posteriorly.

Stage 5 is a total retinal detachment.

Fig. 13.60 Staging of active retinopathy of prematurity. (A) Stage 1 – demarcation line; (B) stage 2 – ridge; (C) stage 3 – ridge with extraretinal vascular proliferation; (D) stage 4a – partial extrafoveal retinal detachment; (E) ‘plus’ disease; (F) appearance immediately following laser photocoagulation for threshold disease

(Courtesy of L MacKeen – figs A, C and D; P Watts – figs B and F)

Other features

1 ‘Plus’ disease signifies a tendency to progression and is characterized by the following:

• Failure of the pupil to dilate associated with gross vascular engorgement of the iris.

• Vitreous haze.

• Dilatation of veins and tortuosity of the arteries involving at least two quadrants of the posterior fundus (Fig. 13.60E).

• Increasing preretinal and vitreous haemorrhage.

When these changes are present, a plus sign is added to the stage number.

2 ‘Pre-plus’ disease is characterized by abnormal dilatation and tortuosity that is insufficient to be designated as plus disease.

3 ‘Threshold’ disease is defined as five contiguous or eight cumulative clock hours of extraretinal neovascularization (stage 3 disease) in zone 1 or zone 2, associated with plus disease, and is an indication for treatment.

Page 575

Page 576

4 Aggressive posterior (‘rush’ disease) is uncommon but if untreated usually progresses to stage 5. It is characterized by its posterior location, prominence of plus disease and ill-defined nature of the retinopathy. It is most commonly observed in zone 1 and does not usually progress through the classical stages 1–3. Although the clinical features of ROP usually take several weeks to develop, rarely the disease can progress from stage 1 to rush disease within a few days.

5 Other ocular morbidity. Very low birth weight infants, especially those treated for ROP, are at a substantially higher risk of developing strabismus and myopia than term infants and require follow-up till the age of visual maturity.

Regression

In about 80% of cases ROP regresses spontaneously by a process of involution, or by evolution from a vasoproliferative to fibrotic phase leaving few if any residua. Spontaneous regression may even occur in eyes with partial retinal detachments.

Screening

Babies born at or before 31 weeks gestational age, or weighing 1500 g or less, should be screened for ROP. This may involve indirect ophthalmoscopy with a 28 D lens or a 2.2 panfunduscopic Volk lens, or a wide field retinal camera. Screening should begin 4–7 weeks postnatally to detect the onset of threshold disease. Subsequent review should be at 1–2-weekly intervals, depending on the severity of the disease and continue until retinal vascularization reaches zone 3. The pupils in a premature infant are dilated with 0.5% cyclopentolate and 2.5% phenylephrine. Only about 8% of babies screened actually require treatment.

Treatment

1 Laser photocoagulation of avascular immature retina is recommended in infants with threshold disease (Fig. 13.60F). This is successful in 85% of cases, but the remainder progress to retinal detachment in spite of treatment. Laser therapy has largely replaced cryotherapy because visual and anatomical outcomes are superior, and because laser induces less myopia.

2 Intravitreal anti-VEGF agents. Bevacizumab has been introduced in many centres for the treatment of ROP, but optimal timing, frequency, and dose are yet to be established. The potential for systemic complications and long-term effects is also undefined in this age group.

3 Lens-sparing pars plana vitrectomy for tractional retinal detachment not involving the macula (stage 4a) can be performed successfully with respect to anatomical and visual outcome. The visual outcome in stages 4b and 5, in which the macula is involved, is often disappointing despite successful reattachment.

Cicatricial disease

About 20% of infants with active ROP develop cicatricial complications, which range from innocuous to extremely severe. In general, the more advanced or the more posterior the proliferative disease at the time of involution, the worse the cicatricial sequelae.

Stage 1 shows peripheral retinal pigmentary disturbance and haze at the vitreous base (Fig. 13.61A).

Stage 2 manifests temporal vitreoretinal fibrosis and straightening of vascular arcades (Fig. 13.61B) followed by ‘dragging’ of the macula and disc (Fig. 13.61C). This may lead to a pseudoexotropia due to resultant exaggeration of angle kappa.

Stage 3 is characterized by more severe peripheral fibrosis with contracture and a falciform retinal fold (Fig. 13.61D).

Stage 4 shows an incomplete ring of retrolental fibrovascular tissue with partial retinal detachment (Fig. 13.61E).

Stage 5 features a complete ring of retrolental fibrovascular tissue with total retinal detachment, a picture formerly known as ‘retrolental fibroplasia’ (Fig. 13.61F). Secondary angle-closure glaucoma may develop due to progressive shallowing of the anterior chamber caused by a forward movement of the iris-lens diaphragm and the development of anterior synechiae. Treatment involving lensectomy and anterior vitrectomy may be tried but the results are often poor.

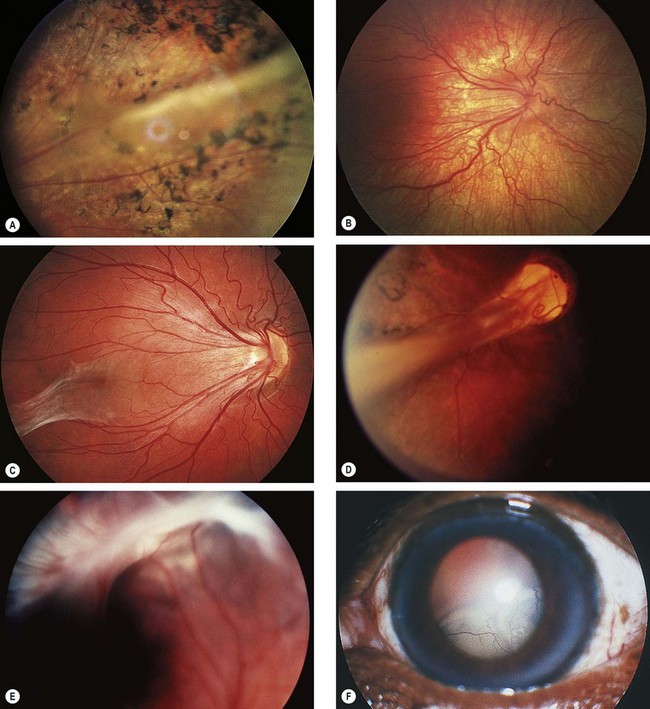

Fig. 13.61 Cicatricial retinopathy of prematurity. (A) Stage 1 – peripheral pigmentary disturbance; (B) early stage 2 – straightening of vascular arcades; (C) late stage 2 – ‘dragging’ of the disc and macula; (D) stage 3 – falciform fold; (E) stage 4 – retrolental fibrovascular tissue and partial retinal detachment; (F) stage 5 – total retinal detachment

Retinal artery macroaneurysm

A retinal artery macroaneurysm is a localized dilatation of a retinal arteriole; it usually occurs in the first three orders of the arterial tree. It has a predilection for elderly hypertensive women and involves only one eye in 90% of cases.

Diagnosis

1 Presentation

• Insidious impairment of central vision due to leakage involving the macula.

• Sudden visual loss resulting from haemorrhage is less common.

2 Signs

• A saccular or fusiform arteriolar dilatation, most frequently occurring at a bifurcation or an arteriovenous crossing along the temporal vascular arcades.

• The aneurysm may enlarge to several times the diameter of the artery.

• Associated retinal haemorrhage is present in 50% of cases (Fig. 13.62A).

• Multiple macroaneurysms along the same or different arterioles may occasionally be present.

3 FA findings are dependent on the patency of the lesion and any associated haemorrhage. The typical appearance is that of immediate uniform filling of the macroaneurysm (Fig. 13.62B) with late leakage (Fig. 13.62C). Incomplete filling is due to partial or complete obliteration of the lumen by thrombosis.

4 Course

a Chronic leakage resulting in retinal oedema with accumulation of exudates is common (Fig. 13.63A and B) and may result in permanent loss of central vision.

Page 577

Page 578

b Rupture resulting in haemorrhages which may be intraretinal (Fig. 13.63C), subretinal or preretinal (Fig. 13.63D). In these cases the underlying lesion may be overlooked and the diagnosis missed.

Page 579

c Spontaneous involution following thrombosis and fibrosis is very common (Fig. 13.63E) and may precede or follow the development of leakage or haemorrhage.

Fig. 13.62 (A) Retinal artery macroaneurysm associated with haemorrhage; (B) FA early venous phase shows hyperfluorescence of the microaneurysm, which is surrounded by hypofluorescence due to blockage by blood; (C) late phase shows increased hyperfluorescence due to leakage

(Courtesy of P Saine)

Fig. 13.63 Retinal artery macroaneurysm. (A) Surrounded by a fine ring of exudates; (B) dense ring of exudates; (C) two macroaneurysms, one of which is associated with extensive exudates and intraretinal haemorrhages; (D) preretinal haemorrhage; (E) spontaneous involution of three macroaneurysms

Prognosis

Eyes with vitreous or premacular haemorrhage tend to recover good vision, but central visual function in those with submacular haemorrhage generally remains poor.

Management

Page 580

1 Observation in anticipation of spontaneous involution is indicated in eyes with good visual acuity in which the macula is not threatened, and in those with mild retinal haemorrhage without significant oedema or exudation. In most cases following retinal or vitreous haemorrhage the macroaneurysm thromboses and laser coagulation is not required.

2 Laser photocoagulation may be considered if oedema or exudates threaten or involve the fovea (Fig. 13.64A), particularly if there is documented visual deterioration. The burns may be applied to the lesion itself, the surrounding area, or both (Fig. 13.64B). It may take several months for the oedema and hard exudates to absorb.

3 YAG laser hyaloidotomy may be considered in eyes with large non-absorbing preretinal haemorrhage overlying the macula (Fig. 13.64C) in order to disperse the blood into the vitreous cavity, from where it may be absorbed more quickly (Fig. 13.64D).

4 Intravitreal injection of expandable gas with face-down positioning is often effective in shifting submacular haemorrhage away from the macula. Adjunctive intravitreal recombinant tissue plasminogen activator (rTPA) may be used.

Fig. 13.64 Treatment of complications of retinal artery macroaneurysm. (A) Hard exudates at the macula due to chronic leakage; (B) following laser photocoagulation; (C) large preretinal haemorrhage overlying the macula; (D) following YAG laser hyaloidotomy the blood is dispersing into the vitreous

(Courtesy of P Gili – figs C and D)

Primary retinal telangiectasiA

Page 581

Retinal capillary telangiectasia is relatively common. Most cases, however, are clearly secondary to another retinal condition, typically involving inflammation or vascular occlusion; examples include diabetic retinopathy and retinal venous occlusion. Primary retinal telangiectasis comprises a group of rare, idiopathic, congenital or acquired retinal vascular anomalies characterized by dilatation and tortuosity of retinal blood vessels, multiple aneurysms, vascular leakage and the deposition of hard exudates. Retinal telangiectasis involves the capillary bed, although the arterioles and venules may also be involved. The vascular malformations often progress and become symptomatic later in life.

Idiopathic macular telangiectasia

Idiopathic macular telangiectasia (IMT) is a rare condition of unknown pathogenesis. There are occasional reports of occurrence in close relatives, and although IMT is generally not considered familial it is suspected that a genetic element has a role. An updated and simplified classification has recently been suggested, reflecting increased knowledge of clinical and imaging features.

Type 1: aneurysmal telangiectasia

This may be closely related to Coats disease and may involve a variable area of the fundus including the periphery.

1 Presentation is typically in an otherwise healthy middle-aged patient, usually male, with mild to moderate blurring of vision in one eye (occasionally both).

2 Signs

• Telangiectasia, microaneurysms and later larger aneurysms.

• Macular oedema, including cystoid changes.

• Chronic leakage and lipid deposition (Fig. 13.65A).

3 OCT demonstrates retinal thickening, CMO, and localized exudative retinal detachment.

4 FA shows telangiectasia and multiple capillary, venular and arteriolar aneurysms (Fig. 13.65B) and late leakage (Fig. 13.65C). There is minimal non-perfusion.

5 Treatment by laser photocoagulation to areas of leakage may occasionally be beneficial in preventing visual loss from chronic CMO and exudation. Intravitreal VEGF inhibitors may reduce macular oedema and improve vision.

Fig. 13.65 Idiopathic macular telangiectasia – type 1. (A) Telangiectasis surrounded by a ring of exudates; (B) FA early phase shows telangiectasia temporal to the fovea; (C) FA late phase shows leakage.

Type 2: perafoveal telangiectasia

1 Presentation is in middle age with blurring commonly affecting both eyes. Males and females are equally affected. This form is more common than type 1, and has the worst visual prognosis. In contrast to type 1, findings are limited to the perifoveal area.

2 Signs

• Initially there is greyish loss of juxtafoveolar retinal transparency, initially temporal to and later surrounding the fovea.

• Telangiectasia may not be visible clinically but can be demonstrated by red-free photography.

• Cystic foveal atrophy without leakage is associated with falling visual acuity.

• Fine crystalline deposits and small RPE plaques develop in some patients (Fig. 13.66A); aneurysms and lipid deposition do not generally occur.

• Later there is intra- and subretinal neovascularization, increase in intraretinal oedema and occasionally choroidal neovascularization.

3 OCT shows diffuse retinal thickening, even before telangiectasia is apparent, and foveal cystic degenerative change.

Page 582

4 FA in early disease shows bilateral perifoveal telangiectasia (Fig. 13.66B) with diffuse leakage (Fig. 13.66C) but without CMO. CNV and CMO may be demonstrated in later disease.

5 Treatment with intravitreal anti-VEGF agents decrease leakage on FA in the non-proliferative stage but is probably not helpful visually. They may retard subretinal neovascularization in the proliferative stage, and may also be considered for subfoveal choroidal neovascularization.

Fig. 13.66 Idiopathic macular telangiectasia – type 2. (A) Macular crystals and small plaques of RPE; (B) FA early phase shows perifoveal telangiectasias; (C) FA late phase shows leakage

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997 – fig. A)

Occlusive telangiectasia

This is an extremely rare condition. The manifestations relate to capillary occlusion rather than telangiectasia, and probably result from a distinct pathogenesis. It has been omitted from the new classification system but was categorized as types 3A and B under the previous scheme. It carries a poor visual prognosis, and is frequently associated with systemic haematological or neurological disease.

1 Presentation is in the 6th decade with slowly progressive loss of central vision.

2 Signs

• Marked aneurysmal dilatation of terminal capillaries with progressive occlusion of parafoveal capillaries (Fig. 13.67A).

• Optic atrophy may be present in some cases.

3 FA shows widening of the FAZ but absence of leakage (Fig. 13.67B).

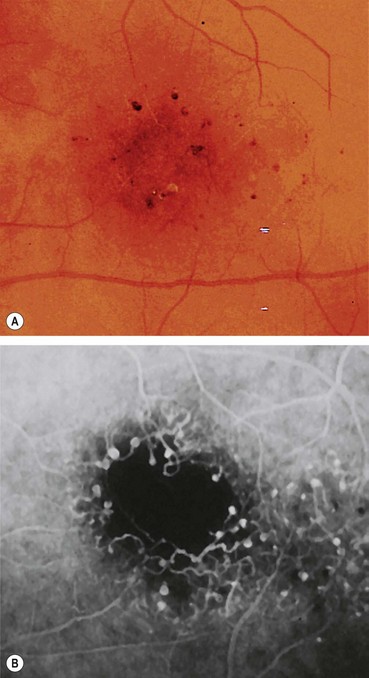

Fig. 13.67 Occlusive telangiectasia. (A) Occlusion of parafoveal capillaries; (B) FA shows aneurysmal dilatation of terminal capillaries and widening of FAZ

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997)

Coats disease

Coats disease is an idiopathic retinal telangiectasia generally of onset in early childhood. It is associated with intraretinal and subretinal exudation, and frequently exudative retinal detachment, without signs of vitreoretinal traction. About 75% of patients are male and the great majority have involvement of only one eye. Although it is not clearly inherited, a genetic predisposition may be involved as at least some patients have a somatic mutation in the NDP gene, which is also mutated in Norrie disease. It is now considered that Leber miliary aneurysms, previously regarded as a distinct condition, represents a generally milder form of the same disease, presenting later, in a more localized pattern, and carrying a better visual prognosis.

Diagnosis

1 Presentation is most frequently in the first decade of life (average 5 years) with unilateral visual loss, strabismus or leukocoria (Fig. 13.68A). Occasionally the condition may present in later childhood and rarely in adult life.

2 Signs

Page 583

• Telangiectasia most often in the inferior and temporal quadrants between the equator and ora serrata (Fig. 13.68B).

• Intraretinal (Fig. 13.68C) and subretinal exudate formation (Fig. 13.68D).

• Progression of intraretinal and subretinal yellowish exudation often affecting areas remote from the vascular abnormalities, particularly the macula (Fig. 13.68E).

• Exudative retinal detachment (Fig. 13.68F).

3 FA in mild cases shows early hyperfluorescence of the telangiectasia (Fig. 13.69A) and late staining and leakage (Fig. 13.69B).

4 OCT may be useful for the assessment of the macula in cooperative older children.

5 Complications include rubeosis iridis, glaucoma, uveitis, cataract and phthisis bulbi.

6 Association. Atypical pigmentary retinopathy is seen in a small minority of patients (see Fig. 15.12).

Fig. 13.68 Coats disease. (A) Leukocoria; (B) retinal telangiectasis; (C) intraretinal exudates; (D) subretinal exudation; (E) progressive involvement; (F) exudative retinal detachment

(Courtesy of C Barry – fig. E)

Fig. 13.69 FA in mild Coats disease; (A) FA venous phase shows hyperfluorescence of telangiectasis, (B) late phase shows extensive hyperfluorescence due to leakage and staining

(Courtesy of C Barry)

Treatment

1 Observation in patients with mild, non-vision threatening disease and in those with a comfortable eye with total retinal detachment in which there is no hope of restoring useful vision.

2 Laser photocoagulation to areas of telangiectasia should be considered if progressive exudation is documented. Frequently more than one treatment session is required to obliterate the peripheral telangiectasia and induce resolution of remote exudation at the macula (Fig. 13.70).

3 Anti-VEGF therapy. Limited studies of anti-VEGF therapy for Coats have been carried out to date, but initial results are promising, including as an adjunctive treatment to laser. Long-term safety in childhood remains unknown.

4 Cryotherapy, with a double freeze-thaw method, in eyes with extensive exudation or subtotal retinal detachment although this may result in marked reaction with increased leakage. Therefore, laser photocoagulation is still the preferred option if at all possible.

5 Vitreoretinal surgery may be considered in eyes with total retinal detachment and a poor visual prognosis as successful retinal re-attachment often prevents the subsequent development of neovascular glaucoma.

6 Enucleation may be required in painful eyes with neovascular glaucoma.

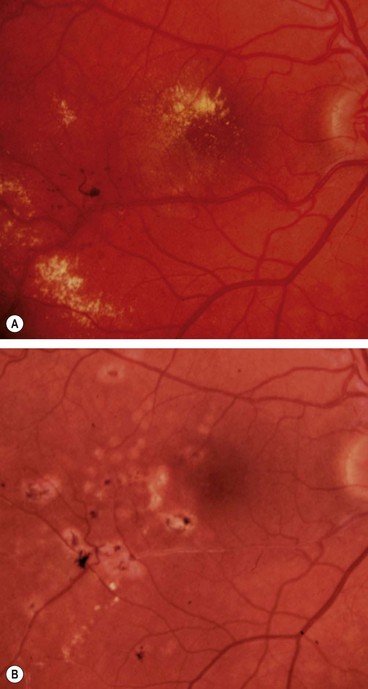

Fig. 13.70 (A) Hard exudates in mild Coats disease; (B) resolution several months after laser photocoagulation

Prognosis

The prognosis is variable and dependent on the severity of involvement at presentation. Young children, particularly those under 3 years of age, frequently have a more aggressive clinical course and often already have extensive retinal detachment at presentation. However, older children and young adults have a more benign disease with less likelihood of progressive exudation and retinal detachment and in some cases spontaneous regression may occur.

Differential diagnosis

Differential diagnosis includes other causes of unilateral leukocoria and retinal detachment in children such as late-onset retinoblastoma, toxocariasis, incontinentia pigmenti and retinal capillary haemangioma.

Eales disease

Page 584

The eponym ‘Eales disease’ is used to describe patients with bilateral, idiopathic, occlusive, peripheral periphlebitis and neovascularization. The disease is rare in Caucasians but is an important cause of visual morbidity in young Asian males and is strongly associated with tuberculoprotein hypersensitivity.

Page 585

1 Presentation is usually in the 3rd–5th decades with vitreous haemorrhage.

2 Signs. The disease is characterized by three overlapping stages: (a) periphlebitis, (b) occlusion and (c) retinal neovascularization.

• Mild uveitis is common.

• Peripheral vascular sheathing associated with peripheral capillary non-perfusion, particularly superotemporally (Fig. 13.71A).

• Branch retinal vein occlusion

• Peripheral neovascularization at the junction of perfused and non-perfused retina (Fig. 13.71B), with recurrent vitreous haemorrhage (13.71C).

3 Complications include tractional retinal detachment, rubeosis iridis, glaucoma and cataract.

4 Treatment involving either PRP or feeder vessel photocoagulation is useful in active disease. Systemic steroids, and possibly other immunosuppressants, may be helpful in the inflammatory stage. Persistent vitreous haemorrhage or tractional detachment may require vitreoretinal surgery. As there is evidence of substantial VEGF activity in Eales disease, intravitreal VEGF inhibitors may be useful in the proliferative stage. Investigation should be carried out to exclude conditions presenting with similar features. The visual prognosis is good in the majority of cases.

Fig. 13.71 Eales disease. (A) Peripheral vascular sheathing and occlusion in the superotemporal quadrant; (B) peripheral neovascularization; (C) haemorrhage from new vessels

Page 586

Radiation retinopathy

Radiation retinopathy may develop following treatment of intraocular tumours by plaque therapy (brachytherapy) or external beam irradiation of sinus, orbital or nasopharyngeal malignancies. It is characterized by delayed retinal microvascular changes with endothelial cell loss, capillary occlusion and microaneurysm formation. As with diabetic retinopathy its progress may be accelerated by pregnancy. Affected patients may also develop cataract and keratopathy. There is some evidence that it is more likely to occur in genetically predisposed patients.

1 Presentation. The time interval between exposure and disease is variable and unpredictable, although commonly between 6 months and 3 years.

2 Signs

• Discrete capillary occlusion with the development of collateral channels and microaneurysms, best seen on FA (Fig. 13.72A).

• More severe capillary non-perfusion (Fig. 13.72B).

• Retinal oedema and exudates (Fig. 13.72C).

• Cotton wool spots, flame-shaped haemorrhages (Fig. 13.72D) and papillopathy.

• Proliferative retinopathy (Fig. 13.72E).

3 Treatment by laser photocoagulation may be beneficial. Papillopathy may benefit from systemic steroids and macular oedema from intravitreal triamcinolone.

4 Prognosis depends on the severity of involvement. Poor prognostic features include papillopathy and proliferative retinopathy, which may result in vitreous haemorrhage and tractional retinal detachment.

Fig. 13.72 Radiation retinopathy. (A) FA shows focal retinal capillary non-perfusion associated with microvascular abnormalities; (B) more severe retinal capillary non-perfusion and microvascular abnormalities; (C) microvascular abnormalities and hard exudates; (D) cotton wool spots and haemorrhages following brachytherapy for choroidal melanoma; (E) disc new vessels and arterial occlusion

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997 – fig. B; S Milenkovic – fig. C; B Damato – fig. D)

Purtscher retinopathy

Purtscher retinopathy is caused by microvascular damage with occlusion and ischaemia associated with severe trauma, especially to the head and in chest compressive injury. Other causes include embolism (fat, air or amniotic fluid) and systemic diseases (acute pancreatitis, pancreatic carcinoma, connective tissue diseases, lymphoma, thrombotic thrombocytopenic purpura and following bone marrow transplantation). Cases not associated with trauma are sometimes referred to as ‘Purtscher-like retinopathy’.

1 Presentation is with sudden visual loss.

2 Signs. Multiple unilateral or bilateral superficial white retinal patches, resembling large cotton wool spots, often associated with superficial peripapillary haemorrhages (Fig. 13.73).

3 Treatment of the underlying cause is desirable but not always possible.

4 Prognosis is guarded as a result of macular or optic nerve damage; only a small proportion will regain normal vision. At least 50% achieve spontaneous visual recovery of two lines or more. The acute fundus changes usually resolve within a few weeks.

Fig. 13.73 Purtscher retinopathy

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997)

Benign idiopathic haemorrhagic retinopathy

Page 587

Benign idiopathic haemorrhagic retinopathy is rare but important because it has a good prognosis without treatment.

Page 588

1 Presentation is in adult life at any age with acute unilateral visual impairment.

2 Signs. Unilateral multiple large intraretinal haemorrhages at the posterior pole and around the optic disc (Fig. 13.74).

3 Course. Vision recovers within 4 months.

4 Differential diagnosis

• Terson syndrome which is typically associated with subarachnoid haemorrhage.

• Benign retinal vasculitis.

• Valsalva retinopathy.

• High altitude retinopathy.

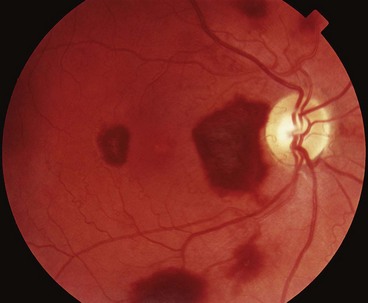

Fig. 13.74 Benign idiopathic haemorrhagic retinopathy

Valsalva retinopathy

The Valsalva manoeuvre comprises forcible exhalation against a closed glottis, thereby creating a sudden increase in intrathoracic and intra-abdominal pressure (e.g. weight-lifting, blowing up balloons). The associated sudden rise in venous pressure may result in rupture of perifoveal capillaries leading to unilateral or bilateral sub-internal limiting membrane haemorrhage at the macula of varying severity (Fig. 13.75).

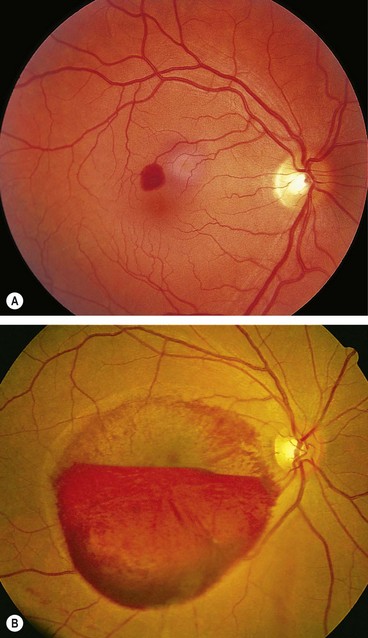

Fig. 13.75 Valsalva retinopathy. (A) Mild; (B) severe

(Courtesy of J Donald M Gass, from Stereoscopic Atlas of Macular Diseases, Mosby 1997 – fig. B)

Page 589

Lipaemia retinalis

Lipaemia retinalis is a rare condition characterized by creamy-white coloured retinal blood vessels in patients with hypertriglyceridaemia (Fig. 13.76). The visualization of high levels of chylomycrons in blood vessels accounts for the fundus appearance. Visual acuity is usually normal but electroretinogram amplitude may be decreased.

Fig. 13.76 Lipaemia retinalis

Retinopathy in blood disorders

Leukaemia

Classification

The leukaemias are malignancies of the haematopoietic stem cells characterized by abnormal proliferation of white blood cells. Acute leukaemias are characterized by replacement of bone marrow with very immature (blast) cells (Fig. 13.77A). Chronic leukaemias are associated, at least initially, with well-differentiated (mature) leucocytes (Fig. 13.77B) and occur almost exclusively in adults. The four major variants of leukaemia are:

1 Acute lymphocytic (lymphoblastic) that predominantly affects children; overall, 90% of cases respond to treatment and approximately 70% are cured.

2 Acute myelocytic (myeloblastic) is most frequently seen in older adults and is curable in 30% of those under the age of 60 years.

3 Chronic lymphocytic has a very chronic course and many patients die from an unrelated cause.

4 Chronic myelocytic has a progressive clinical course and a less favourable prognosis.

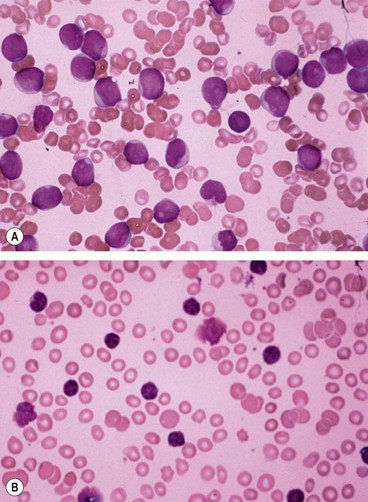

Fig. 13.77 Blood film in leukaemias. (A) Bone marrow aspirate in acute myeloid leukaemia shows immature blast cells; (B) peripheral blood smear in chronic lymphatic leukaemia shows many mature lymphocytes

Ocular features

Ocular involvement is more commonly seen in the acute than the chronic forms and virtually any ocular structure may be involved. It is, however, important to distinguish the fairly rare primary leukaemic infiltration from the more common secondary changes such as those associated with anaemia, thrombocytopenia, hyperviscosity and opportunistic infections; these may manifest as intraocular bleeding, infection and vascular occlusion.

1 Fundus changes

• Retinal haemorrhages, cotton wool spots and retinal haemorrhages with white centres (Roth spots – Fig. 13.78A) occur in acute leukaemias.

• Peripheral retinal neovascularization is an occasional feature of chronic myeloid leukaemia (Fig. 13.78B).

• Choroidal deposits in chronic leukaemia may give rise to a ‘leopard skin’ appearance (Fig. 13.78C).

• Optic nerve infiltration may cause swelling and visual loss.

2 Other ocular features

• Orbital involvement, particularly in children.

• Iris thickening, iritis and pseudohypopyon.

• Spontaneous subconjunctival haemorrhage and hyphaema.

• Cranial nerve palsies.

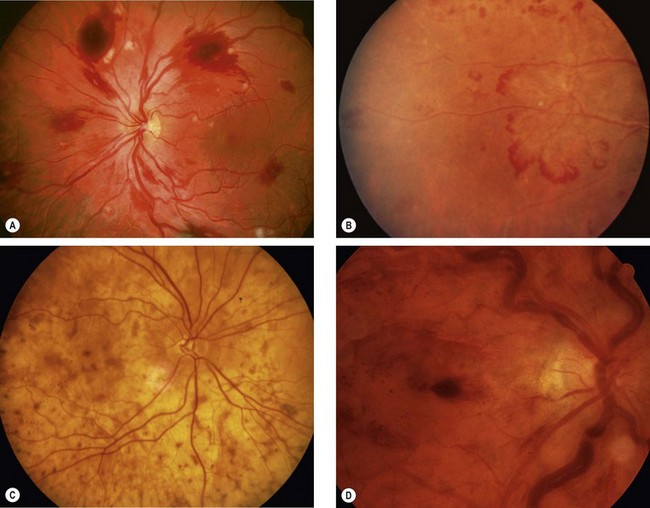

Fig. 13.78 Fundus changes in haematological disorders. (A) Retinal haemorrhages, cotton wool spots and Roth spots in acute leukaemia and anaemia associated with thrombocytopenia; (B) peripheral retinal neovascularization in chronic myeloid leukaemia; (C) ‘leopard-skin’ appearance due to choroidal infiltration in chronic leukaemia; (D) retinal haemorrhages, and gross venous dilatation and segmentation in hyperviscosity

(Courtesy of P Saine – fig. A; P Morse – fig. B)

Anaemia

Page 590

The anaemias are a group of disorders characterized by a decrease in the number of circulating red blood cells, a decrease in the amount of haemoglobin in each cell, or both, that occurs when the equilibrium between blood loss and production are disturbed. Retinal changes in anaemia are usually innocuous and rarely of diagnostic importance.

1 Systemic features include pallor, atrophic glossitis, koilonychia and angular stomatitis.

2 Retinopathy

• Retinal venous tortuosity is related to the severity of anaemia but may occur in isolation, particularly in patients with beta-thalassaemia major.

• Dot/blot and flame-shaped haemorrhages, cotton wool spots and Roth spots are more common with co-existing thrombocytopenia in aplastic anaemia (see Fig. 13.78A). The duration and type of anaemia do not influence the occurrence of these changes.

3 Optic neuropathy with centrocaecal scotomas may occur in patients with pernicious anaemia. Unless treated with vitamin B12 supplements, permanent optic atrophy may ensue. Pernicious anaemia may also cause dementia, peripheral neuropathy and subacute combined degeneration of the spinal cord; the latter is characterized by posterior and lateral column disease.

Hyperviscosity

The hyperviscosity states are a diverse group of rare disorders characterized by increased blood viscosity due to polycythaemia or to abnormal plasma proteins (e.g. Waldenström macroglobulinaemia).

Page 591

1 Polycythaemia is caused by neoplastic proliferation of erythrocytes leading to hyperviscosity and increased bone marrow activity; plethora, splenomegaly, pruritus, hypertension, angina, gout, thrombosis and haemorrhage.

2 Waldenström macroglobulinaemia is a malignant lymphoproliferative disorder with monoclonal IgM production that most frequently affects elderly men. It is characterized by fatigue, easy bruising, lymphadenopathy, hepatosplenomegaly, Raynaud phenomenon and peripheral vascular disease.

3 Fundus features include retinal haemorrhages and venous dilatation (Fig. 13.78D), occasionally retinal vein occlusion and conjunctival telangiectasia.

Congenital vascular anomalies

Retinal macrovessel

1 Signs. A unilateral, large, aberrant retinal vessel, usually a vein, is present in the posterior pole and may cross the foveal region and horizontal raphe (Fig. 13.79A). Because arteriovenous anastomoses are also often present the condition may be considered to be a variant of racemose angiomatosis (see Ch. 12).

Page 592

2 FA may show early filling and delayed emptying of the vessel; a dilated capillary bed surrounding the macrovessel is often present. Areas of capillary non-perfusion and foveal cysts may also be seen.

Fig. 13.79 Congenital retinal vascular anomalies. (A) Retinal macrovessel; (B) arteriovenous communication; (C) FA shows filling but no leakage

(Courtesy of C Barry – figs B and C)

Arteriovenous communications

Congenital arteriovenous communications usually present on routine examination, with unilateral involvement in single or multiple sites of the same fundus. They have a predilection for the papillomacular bundle and the superotemporal quadrant. Occasionally reported complications include haemorrhage, exudation and vascular occlusion. Some patients may harbour similar systemic lesions. The malformations can be divided into the following three types on the basis of severity.

Group 1 consists of an anastomosis between a small arteriole and venule with the interposition of an abnormal capillary or arteriolar plexus. It is non-progressive and associated with good visual acuity.

Group 2 demonstrates direct arteriovenous communications between a branch retinal artery and vein (Fig. 13.79B and C).

Group 3 consists of diffuse marked dilatation of the vascular tree with many large-calibre anastomosing channels.
